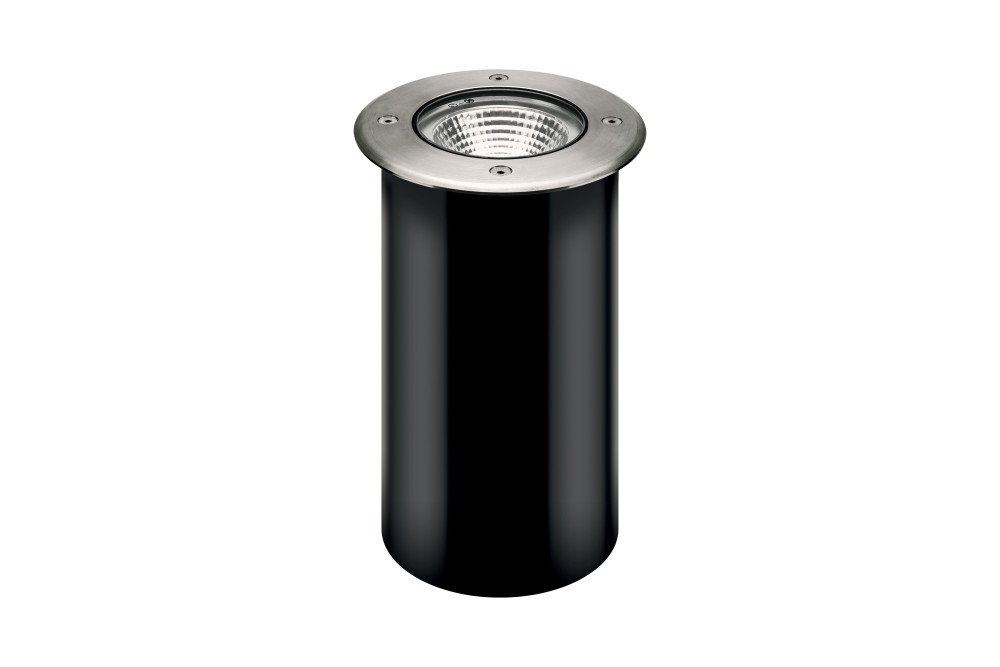

OUTDOOR IN GROUND UPLIGHT WITH H2O STOP IP67 1270LM 20.5W 3000K UPLIGHT 35° STAINLESS STEEL WITH H2O STOP INTEGRAL

Part Number:

ILGDA007

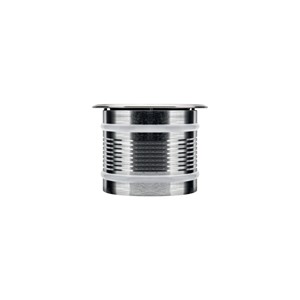

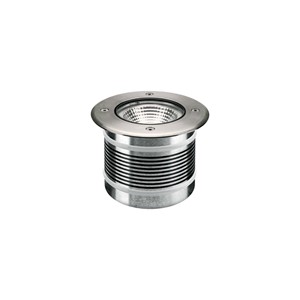

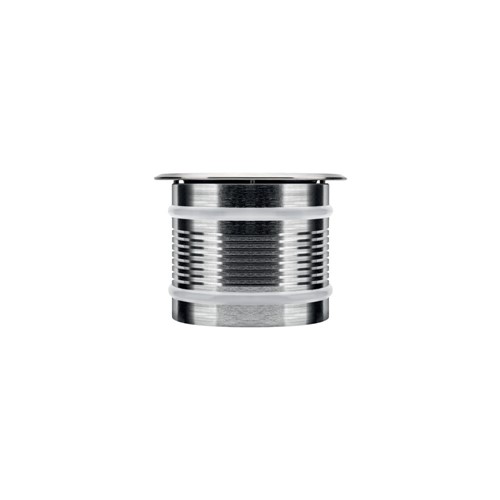

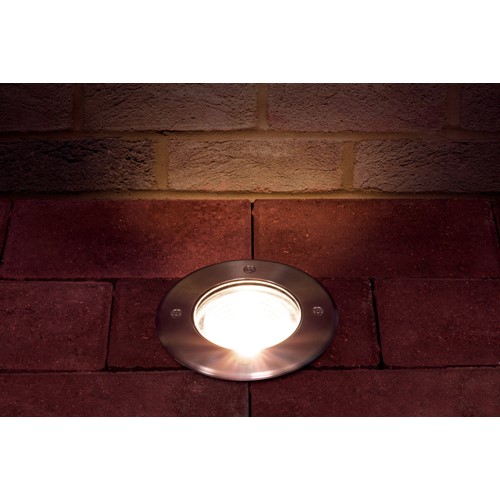

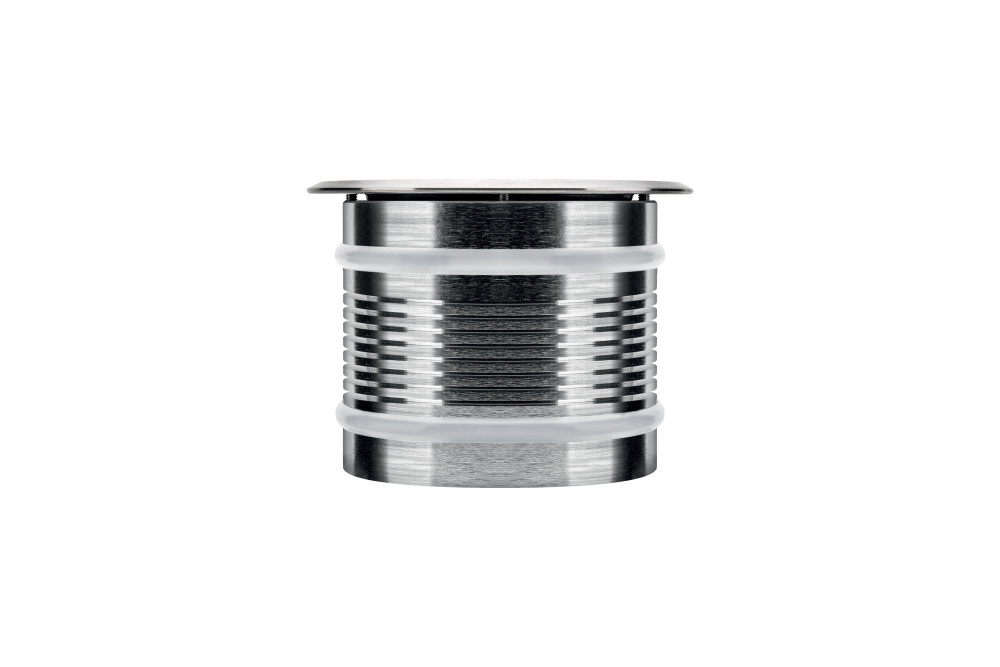

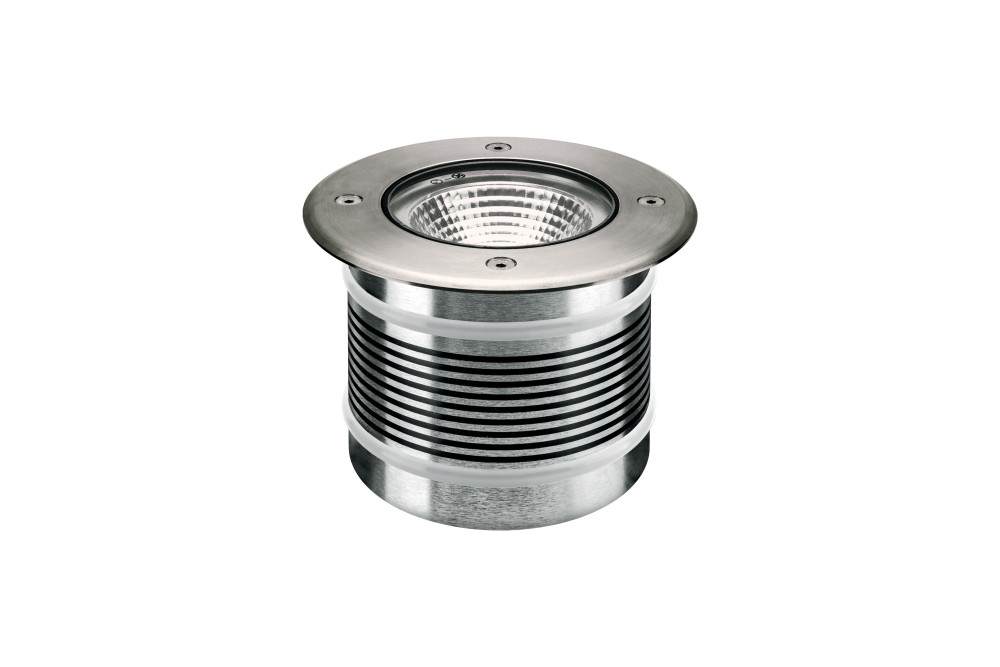

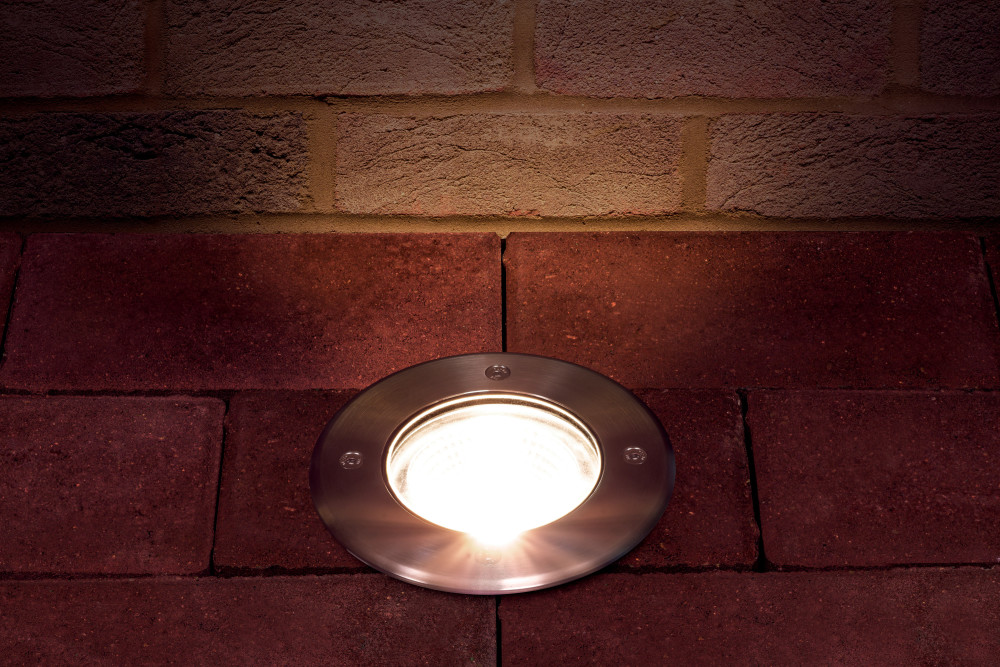

This stylish and practical recessed uplight provides a striking wash of light for highlighting trees, walls and other outdoor features. Perfect for gardens and driveways in homes or hospitality venues. Hard-wearing and weatherproof, the die-cast aluminium body and 316L stainless steel bezel makes it suitable for coastal areas, and H2O STOP technology provides additional protection against moisture ingress through the electrical cables.

Product Feature 1:
Stylish and practical recessed uplight for paths and driveways
Product Feature 2:
H2O Stop technology for improved water resistance
Product Feature 3:
Cool front surface temperature < 40 degC
Product Feature 4:
Weatherproof and hard-wearing
Availability:
100+

Call us on 0208 451 8700 to check the next availability

Barcode 5055788242260
Category Luminaires
Range Name Inground
Product Type Outdoor
Product Body Finish Stainless Steel
Market Segment Commercial and Residential outdoor
Warranty (Years) 3
Product Depth (mm) 105
Product Weight (g) 2500
Diameter (mm) 145
Optic Facetted Aluminium
Material Die Cast Aluminium, 316L Stainless steel bezel
Luminaire Fixing Recessed
Placement / Application Outdoor, General Lighting
Energy Efficiency Label (Image) ILGDA007_EU_label
Luminous Flux in Lumens (lm) 1270
Correlated Colour Temperature (CCT) (K) 3000
Colour Temperature Name Warm White
Beam Angle 35
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
LED Type Chip-on-board (COB)
Lifetime (hours) 25000
Switching Cycles 12500
Power Consumption (w) 20.5
Voltage Range (v) 220-240
Dimming Non-Dimmable
Driver Included Yes
Electric Current AC
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
EU Luminaire L
Hg 0% (Mercury Free) Yes
IP Rating (Ingress Protection) IP67
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 50
Package Weight (g) 2560
Package Length (mm) 155
Package Width (mm) 155
Package Depth (mm) 200

Product Specification Sheet

Installation Guides
