OUTDOOR DECORATIVE WALL LIGHT CROSSCUBE IP54 360LM 8W 3000K 4 WAY LIGHT DARK GREY INTEGRAL
Part Number:
ILDEB035

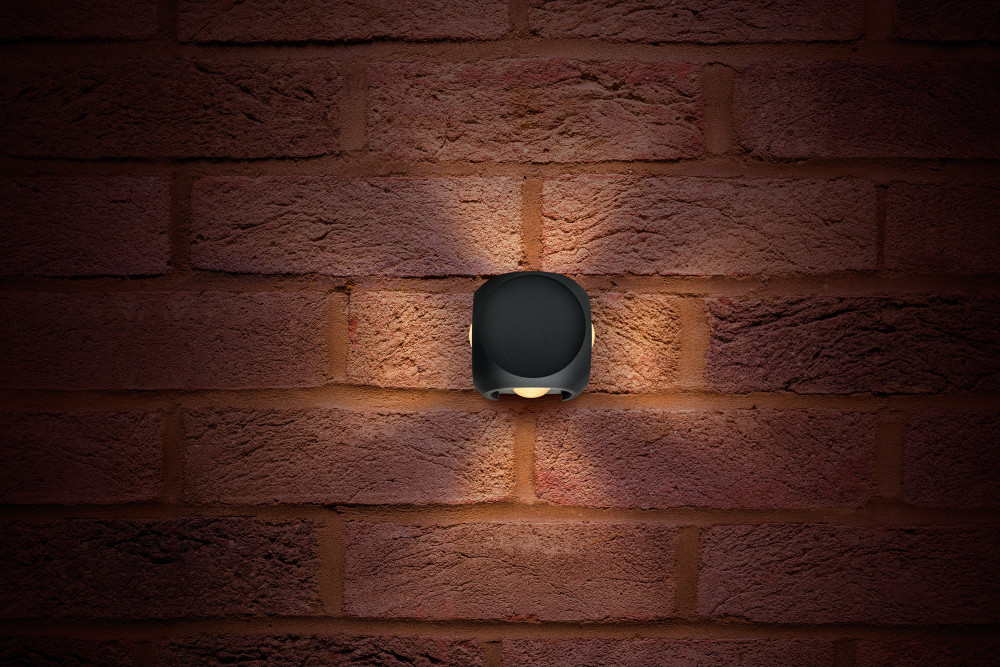

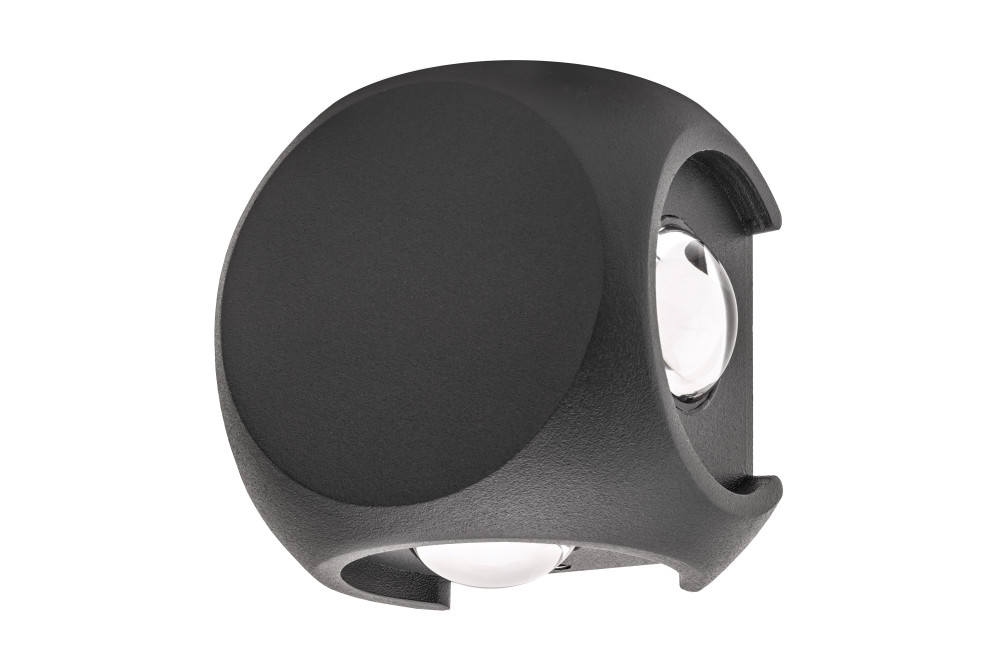

A wide range of decorative light patterns are possible with the Crosscube. This compact, cube shaped luminaire features 2-way or 4-way LEDs that wash the wall with a pleasing conical beam. Multiple units spaced across a wall will create intersecting light patterns that will add a wow factor to any exterior facade.
- Product Feature 1:
- 2-way and 4-way option available
- Product Feature 2:
- Die cast aluminium body with powder coated finish
- Product Feature 3:
- Polycarbonate diffuser
- Product Feature 4:
- IP54 - weatherproof and hard-wearing
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Details
| Quick Order Code | 503162 |
|---|---|
| Barcode | 5055788251194 |
| Category | Luminaires |
| Range Name | Wall Light |
| Product Type | Outdoor |
| Product Body Finish | Dark Grey |
| Warranty (Years) | 3 |
Physical Data
| Product Length (mm) | 81.6 |
|---|---|
| Product Depth (mm) | 50.5 |
| Product Width (mm) | 81.6 |
| Product Weight (g) | 290 |
| Optic | Polycarbonate diffuser |
| Material | Die cast aluminium body with powder coated finish |
| Construction | Aluminium body, Polycarbonate diffuser |
| Bulb or Luminaire Shape | Square |
| Luminaire Fixing | Wall Mounted |
Light Data
| Energy Efficiency Label (Image) | ILDEB035_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 360 |
| Luminous efficacy (lm/W) | 45 |
| Correlated Colour Temperature (CCT) (K) | 3000 |
| Colour Temperature | 3000 |
| Colour Temperature Name | Warm White |
| Beam Angle | 45 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 25000 |
| Switching Cycles | 15000 |
Electrical Data
| Power Consumption (W) | 8 |
|---|---|
| Power Factor | 0.5 |
| Voltage Range (v) | 220-240VAC 50/60Hz |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN 60598, EN 55015, EN 61547, EN 61000 |
| LVD Certified | Yes |
Environmental
| EN | EN 60598, EN 55015, EN 61547, EN 61000 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | G |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK05 |
| IP Rating (Ingress Protection) | IP54 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 320 |
|---|---|
| Package Length (mm) | 90 |
| Package Width (mm) | 90 |
| Package Depth (mm) | 65 |
