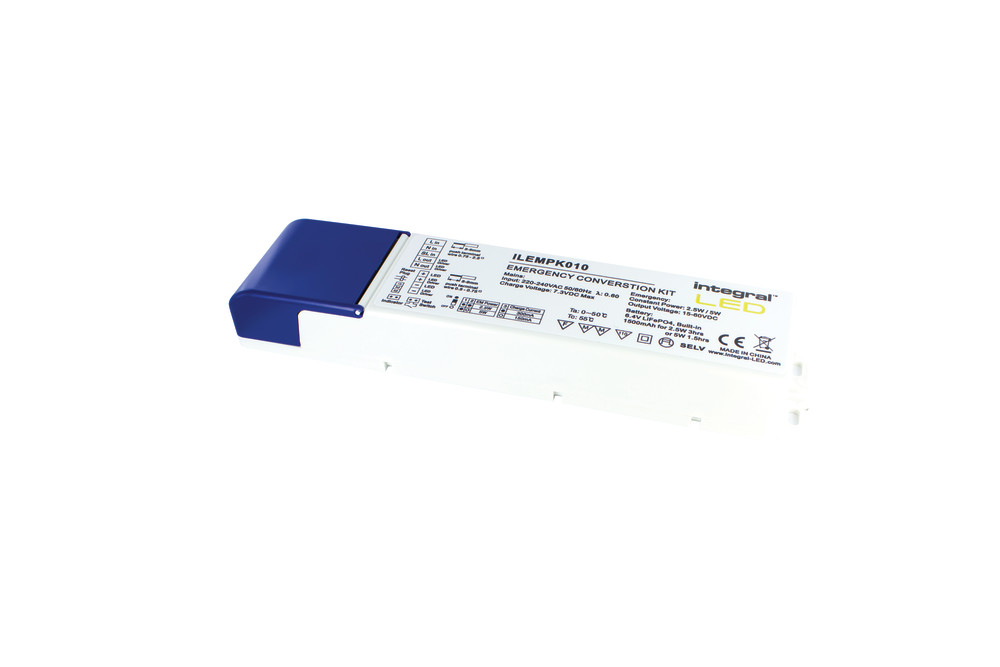

EMERGENCY CONVERSION KIT IP20 2.5-5W 15-60V 3HR WITH REMOTE LED INDICATOR AND TEST BUTTON INTEGRAL

Part Number:

ILEMPK010

This compact, all-in-one Emergency Conversion Kit is suitable for Integral LED Edge-Lit Panels and LED Downlights for use in switchable Maintained mode. It will provide emergency lighting for 3 hours, or optionally for 1.5 hours at a higher output. It is simple to install and features an optional remote test button and LED indicator.

Product Feature 1:
2.5-5W
Product Feature 2:
Lithium Phosphate battery
Product Feature 3:
3 Year Warranty (1 year for battery)
Availability:
100+

More stock due in on 09/09/2021

54.19 GBP

RRP + VAT

Application Corridor
Barcode 5055788227373
Category Emergency
Range Name Conversion Kit
Product Type Emergency Conversion Kit
Product Body Finish Matt white. End cap blue
Market Segment Commercial indoor
Finish Matt white. End cap blue
Warranty (Years) 3
Emergency Option No
Product Length (mm) 250
Product Depth (mm) 32
Product Width (mm) 60
Product Weight (g) 300
Optic Polycarbonate diffuser
Material PVC
Construction Injection moulding
Bulb or Luminaire Shape Rectangle
Luminaire Fixing Surface mounted
Placement / Application Indoor, Emergency Lighting
Frequency Range (Hz) 50/60
Voltage Range (v) 220-240
Input Voltage (V) 220-240
Output Voltage (V) 15-60
Dimming Non-Dimmable
Driver Included Yes
Electric Current AC
Emergency Type Non-Maintained
LVD Certified Yes
LVD Certified Yes
CE RoHS Yes
IK Rating (Impact Protection) IK08
IP Rating (Ingress Protection) IP20
Lowest Operating Temperature (°C) 0
Maximum Operating Temperature (°C) 50
Package Weight (g) 330
Package Length (mm) 255
Package Width (mm) 63
Package Depth (mm) 35

Product Specification Sheet

Installation Guides
