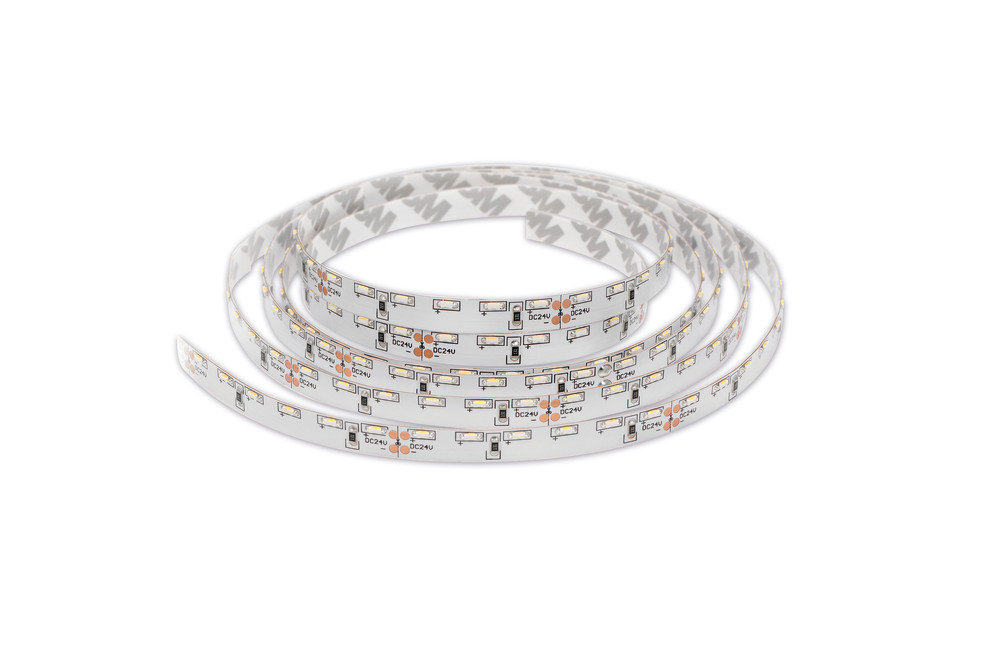

SIDE-EMITTING STRIP IP20 5M 4000K 12V 7W/M 540LM/M 96LED/M 8MM WIDTH 115 BEAM BAG PACK INTEGRAL
Part Number:
ILSTWHIA077E
THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT.

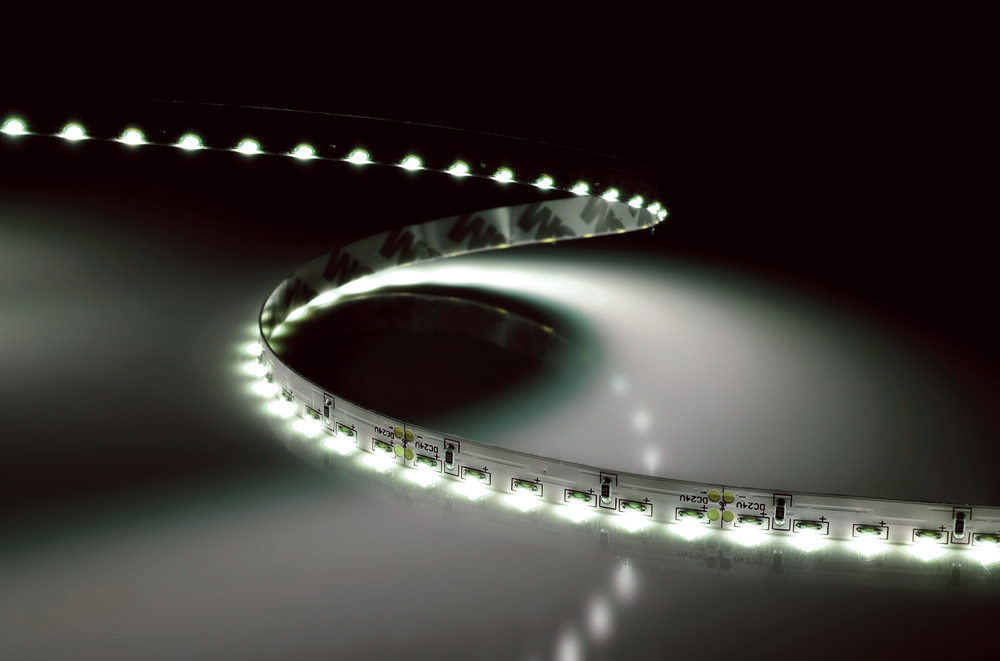

Designed to shine sideways instead of up and out, the side-emitting LED strip includes differently shaped diodes than those found on standard LED strip. Ideal for specific applications such as signage lettering and edge highlighting.
- Product Feature 1:
- Side-emitting LEDs
- Product Feature 2:
- Great for edge lighting
- Product Feature 3:
- 12V
- Product Feature 4:
- 96LEDs/M
- Product Feature 5:
- 7W/m
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788235262 |
|---|---|
| Quick Order Code | 804497 |
| Category | Strips |
| Range Name | Side-Emitting Strip |
| Product Type | White strip |
| Market Segment | Indoor commercial, Industrial, residential |
| Features | Side-Emitting |
| Warranty (Years) | 3 |
Physical Data
| Product Width (mm) | 8 |
|---|---|
| Product Weight (g) | 100 |
| Material | PCB |
| Construction | LED surface mounted on to strip |
| Strip Cut Points (mm) | 31 |
| Max Run Length (m) | 5 |
| Placement / Application | Decorative Indoor, General Lighting |
| Strip length (M) | 5 |
| Strip Width (mm) | 8 |
Light Data
| Energy Efficiency Label (Image) | ILSTWHIA077E_EU_label |
|---|---|
| Lumens per meter (lm/m) | 540 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 115 |
| Colour Rendering Index (CRI) | 80 |
| Colour Type | White |
| LED Size (mm) | 335 |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 96 |
| Lifetime (hours) | 25000 |
Electrical Data
| Power Consumption per meter (W/m) | 7 |
|---|---|
| Voltage (V) | 12 |
| Watts per metre | 6.1w - 10w |
| Dimming | Dimmable |
| Electric Current | DC |
| EN | IEC 62031 |
| LVD Certified | Yes |
Environmental
| EN | IEC 62031 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | G |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -25 |
| Maximum Operating Temperature (°C) | 60 |
Packaging
| Barcode | 5055788235262 |
|---|---|
| Single box qty | 1 |
| Package Length (mm) | 240 |
| Package Width (mm) | 210 |
| Package Depth (mm) | 15 |
| Inner Carton Barcode | 05055788235279 |
| Qty per Inner Carton | 40 |
| Inner Carton Length (mm) | 240 |
| Inner Carton Width (mm) | 240 |
| Inner Carton Depth (mm) | 4.6 |
| Outer Carton Barcode | 5055788235279 |
| Qty per Outer Carton | 80 |
| Outer Carton Length (mm) | 500 |
| Outer Carton Width (mm) | 270 |
| Outer Carton Depth (mm) | 390 |
