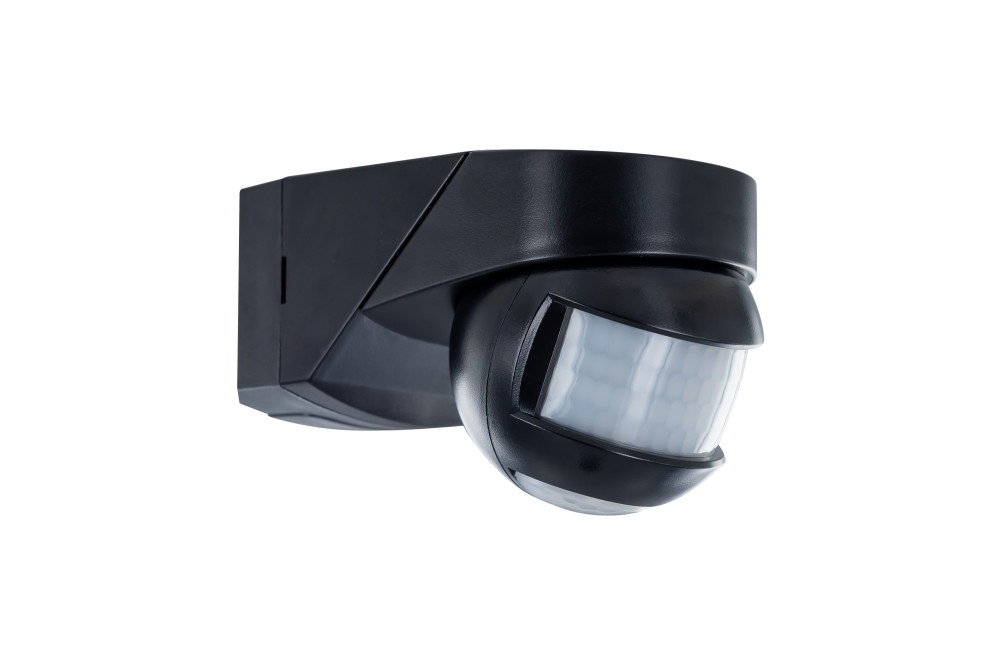

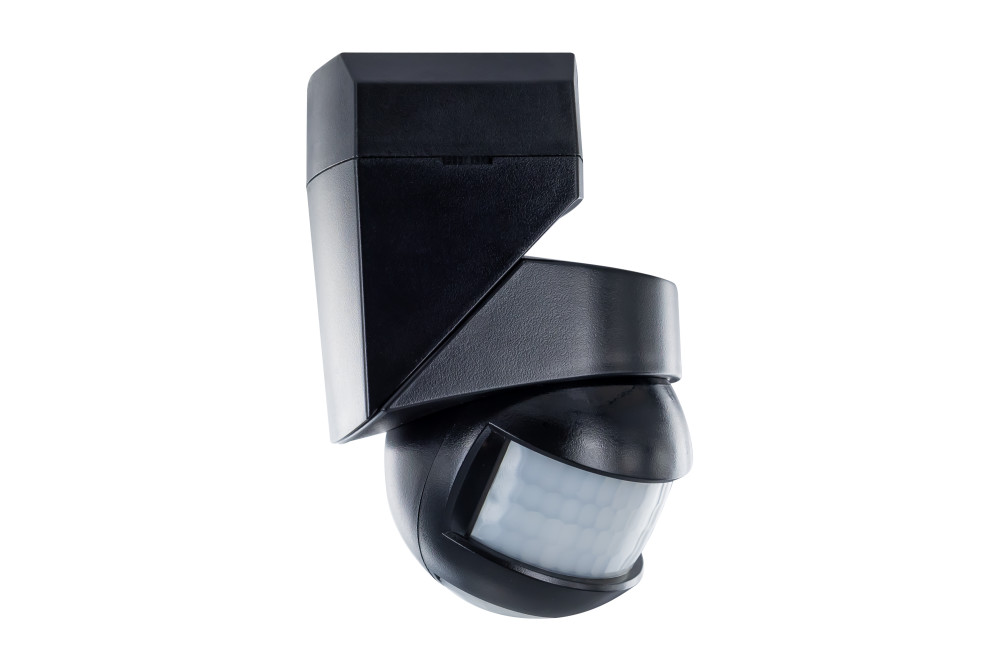

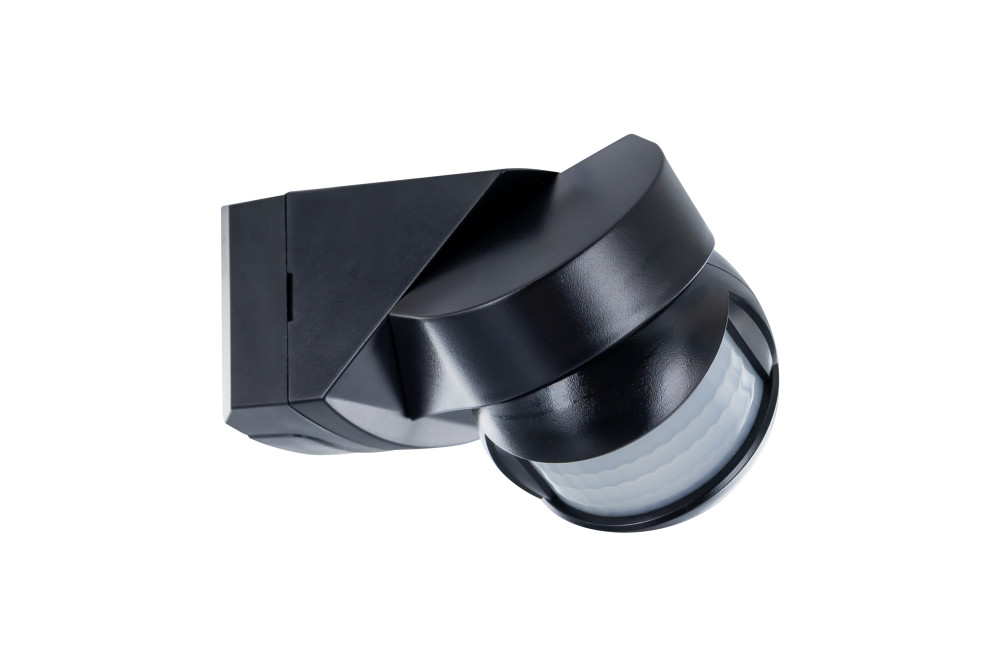

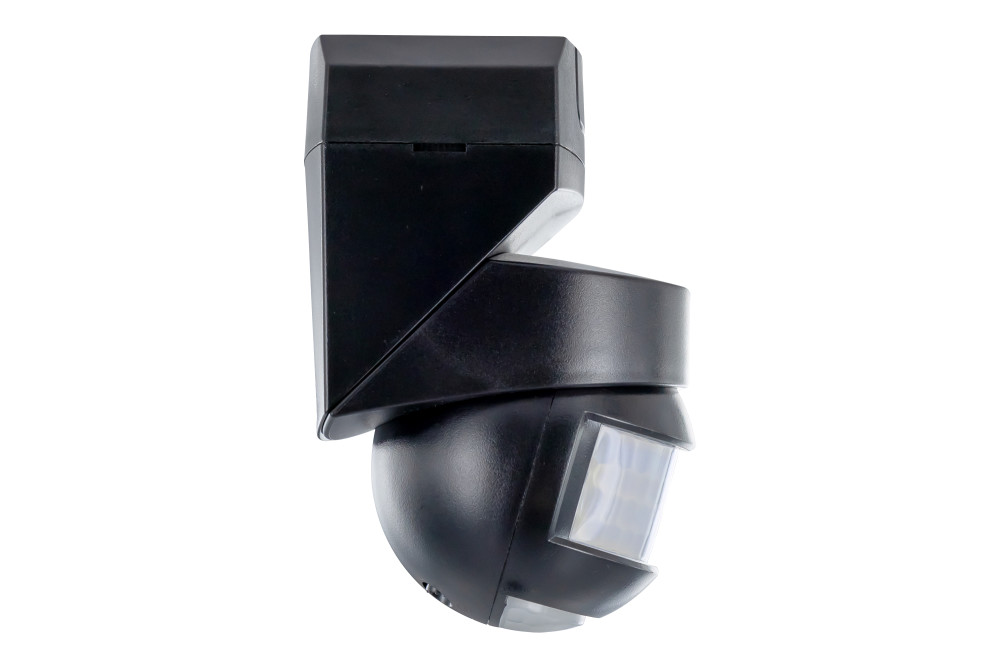

PIR SENSOR 4-IN-1 MOUNT 180DEG + 360DEG DUAL DETECTOR 12M RANGE IP54 BLACK 110-240VAC INPUT + HANDHELD REMOTE
Part Number:
ILSENPIR016
- Product Feature 1:
- 4-in-1 mount: Wall/Ceiling/In-Corner/On-corner
- Product Feature 2:
- Dual 180deg + 360deg detection, max 12m radius
- Product Feature 3:
- Hold time: 10S, 30S, 5MIN,10MIN, 20MIN, 30MIN
- Product Feature 4:
- Sensitivity: Low ~2m, Medium ~6m, High ~12m
- Product Feature 5:
- Daylight threshold: <10LUX, <25LUX, <250LUX, <500LUX, 24H
- Product Feature 6:
- Built-in Photocell function for Dusk-to-Dawn operation
- Product Feature 7:
- 8-hour Override mode
- Product Feature 8:
- Rated Load: 2000W Incandescent / 1000W LED
- Availability:
-
0
More stock due in on 29/01/2025
Suggested products
Details
| Quick Order Code | 710620 |
|---|---|
| Barcode | 5055788288350 |
| Category | Sensors |
| Range Name | Sensors |
| Product Type | Sensors |
| Product Body Finish | Matt Black |
| Market Segment | Commercial indoor, Residential indoor, Commercial outdoor, Residential outdoor |
| Finish | Matt Black |
| Features | PIR Sensor |
| Warranty (Years) | 3 |
Physical Data
| Product Length (mm) | 118 |
|---|---|
| Product Depth (mm) | 75 |
| Product Width (mm) | 72 |
| Product Weight (g) | 164 |
| Mounting Type | Wall, Ceiling, Corner Surface mount |
Light Data
Electrical Data
| Input Voltage (V) | 220-240 |
|---|---|
| Output Voltage (V) | 220-240 |
| Dimming | Non-Dimmable |
| Electric Current | AC |
Environmental
| IP Rating (Ingress Protection) | IP54 |
|---|
