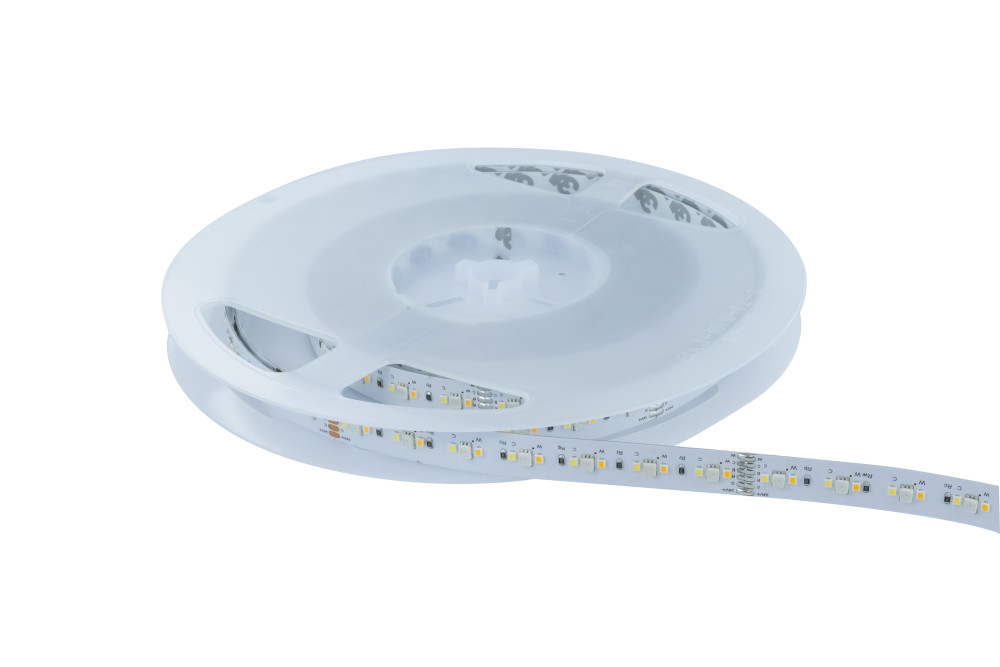

LED STRIP RGB+CCT 2700-6500K IP20 50M REEL 24V 15W/M 689LM/M WHITE 210LED/M 12MM WIDTH CRI90 115 BEAM - MAX RUN 5M
Part Number:
ILSTRGBCCTA400E
- Product Feature 1:

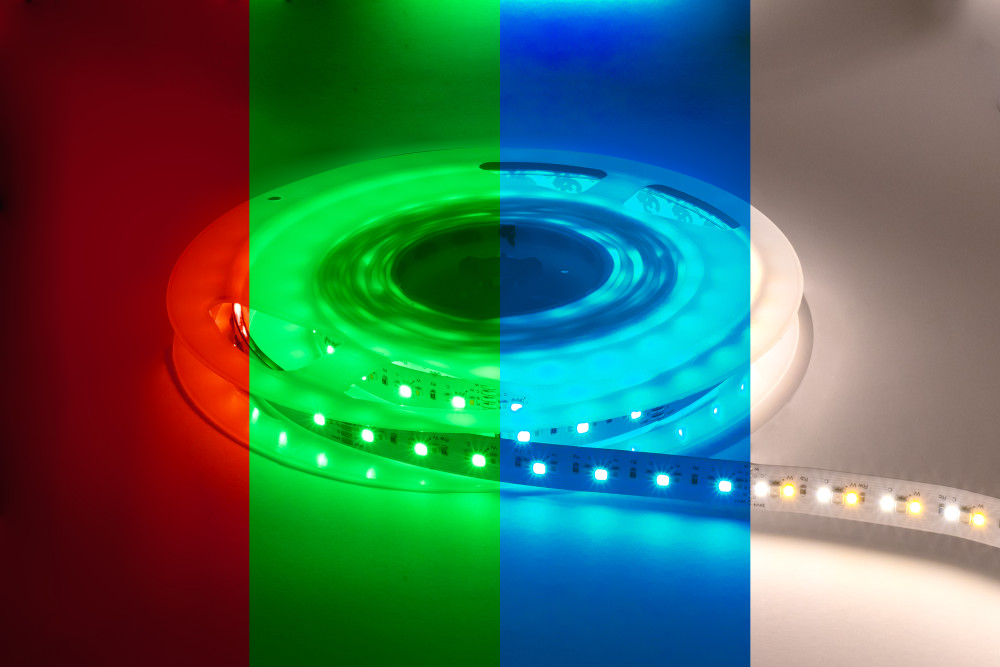

- RGB+CCT Colour Changing
- Product Feature 2:
- 2700-6500K Tunable White
- Product Feature 3:
- 50-metre pack
- Product Feature 4:
- 210 LED's per metre
- Product Feature 5:
- 24V DC Constant Voltage
- Product Feature 6:
- 15W per metre
- Product Feature 7:
- High CRI90 White
- Availability:
-
18
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788295525 |
|---|---|
| Quick Order Code | 447873 |
| Category | Strips |
| Range Name | RGB + CCT Strip |
| Product Type | Colour strip |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 5 |
Physical Data
| Strip Cut Points | 100 |
|---|---|
| Product Depth (mm) | 1.4 |
| Product Weight (g) | 1470 |
| Material | PCB |
| Construction | LED surface mounted on to strip |
| Max Run Length (m) | 5 |
| Placement / Application | Decorative indoor |
| Strip length (M) | 50 |
| Strip Width (mm) | 12 |
Light Data
| Lumens per meter (lm/m) | 689 |
|---|---|
| Correlated Colour Temperature (CCT) (K) | 2700-6500 |
| Colour Temperature Name | RGB+CCT |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 90 |
| Colour Type | RGB+CCT |
| LED Size (mm) | 2835+2216 |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 210 |
| Lifetime (hours) | 50000 |
Electrical Data
| Power Consumption per meter (W/m) | 15 |
|---|---|
| Voltage (V) | 24 |
| Voltage Range (v) | 24 |
| Watts per metre | 10.1w - 20w |
| Dimming | Dimmable |
| Driver Included | No |
| Electric Current | DC |
| EN | IEC 62031 |
| LVD Certified | Yes |
Environmental
| EN | IEC 62031 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -25 |
| Maximum Operating Temperature (°C) | 60 |
Packaging
| Barcode | 5055788295525 |
|---|---|
| Package Weight (g) | 1500 |
| Package Length (mm) | 450 |
| Package Width (mm) | 500 |
| Package Depth (mm) | 14 |
