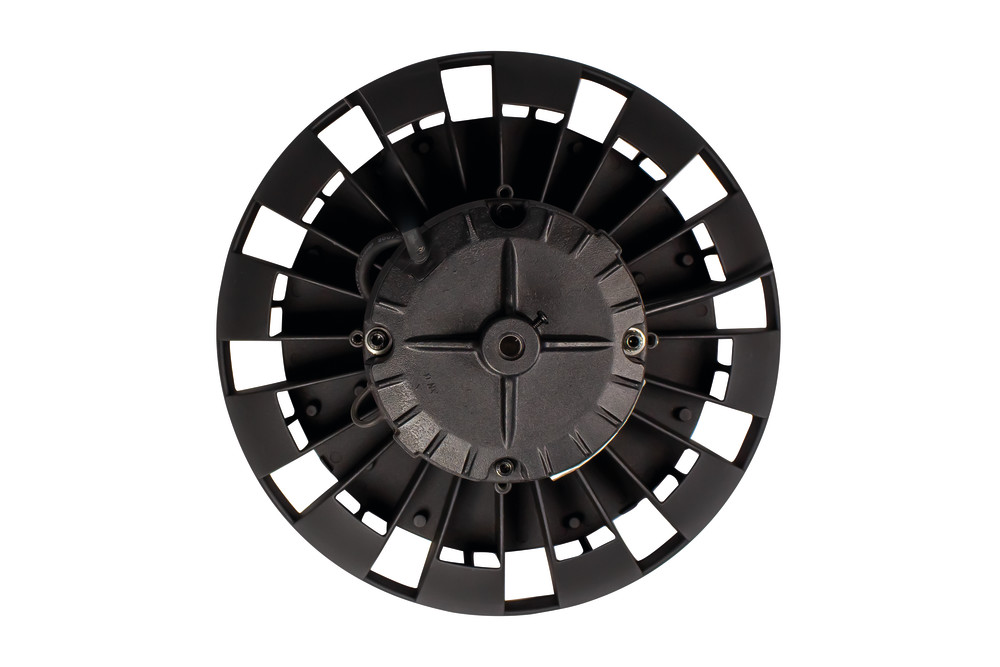

PERFORMANCE PRO SWITCHABLE CIRCULAR HIGH BAY IP65 IK08 100/150/200W 4000/5000/6500K 130Lm/W 90° DIMMABLE SENSOR READY PLUG-N-PLAY
Part Number:
ILHBC325
Our Performance Pro is a highly efficient smart high bay ideal to illuminate large spaces such as factories, warehouses or gymnasiums where very high lumen output is required. With an outstanding 130lm/w efficacy and a luminous output up to 26000 lm, it delivers more light for less energy to help minimise energy bills and carbon emissions. A range of plug and play sensors is available for full control over the Performance Pro high bay configuration. In just 1 second, you can simply add a controllable microwave motion sensor or turn this luminaire into a smart LED High Bay with our Tuya, Zigbee or Casambi modules.
Not compatible with ILHBAR315 Emergency Pack.
- Product Feature 1:
- 130lm/W
- Product Feature 2:
- Sensor Ready
- Product Feature 3:
- 5 Year Warranty
- Product Feature 4:
- 90 Degree Beam Angle
- Product Feature 5:
- 4000K/5000K/6500K
- Product Feature 6:
- IP65
- Product Feature 7:
- IK08
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 797934 |
|---|---|
| Barcode | 5055788267997 |
| Category | Luminaires |
| Range Name | Perform PRO |
| Type | Circular |
| Product Body Finish | Black |
| Market Segment | Commercial indoor, Industrial indoor |
| Features | Microwave Sensor |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | Optional Conversion Kit |
|---|---|
| Product Depth (mm) | 194 |
| Product Weight (g) | 2800 |
| Diameter (mm) | 300 |
| Optic | Polycarbonate |
| Material | Aluminium, Polycarbonate |
| Construction | Aluminium heat-sink and driver case |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Suspended |
| Placement / Application | Indoor, Commercial and Industrial |
| Typical Mounting Height | 4M+ |
Light Data
| Energy Efficiency Label (Image) | ILHBC325_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | Up to 26000 |
| Luminous efficacy (lm/W) | 130 |
| Correlated Colour Temperature (CCT) (K) | 4000/5000/6500 |
| Colour Temperature Name | Colour Temperature Changing |
| Beam Angle | 90 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 15000 |
Electrical Data
| Power (W) | 100/150/200 |
|---|---|
| Power Consumption (W) | 100/150/200 |
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 500 |
| Dimming | Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598, EN61000, EN61547, EN55015, IEC62321 |
Environmental
| EN | EN-60598, EN61000, EN61547, EN55015, IEC62321 |
|---|---|
| CE RoHS | Yes |
| New Energy Rating | D |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -30 |
| Maximum Operating Temperature (°C) | 50 |
| Metal Halide Equivalent | 330 |
Packaging
| Package Weight (g) | 4300 |
|---|---|
| Package Length (mm) | 360 |
| Package Width (mm) | 360 |
| Package Depth (mm) | 200 |
| Qty per euro pallet | 66 |
Packaging
Documents
Product Specification Sheet
Safety Guides
Safety Guide
LDT Files
-
ILHBC325-100W-4000K
-
ILHBC325-100W-5000K
-
ILHBC325-100W-6500K
-
ILHBC325-150W-4000K
-
ILHBC325-150W-5000K
-
ILHBC325-150W-6500K
-
ILHBC325-200W-4000K
-
ILHBC325-200W-5000K
-
ILHBC325-200W-6500K
