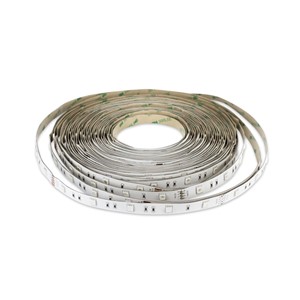

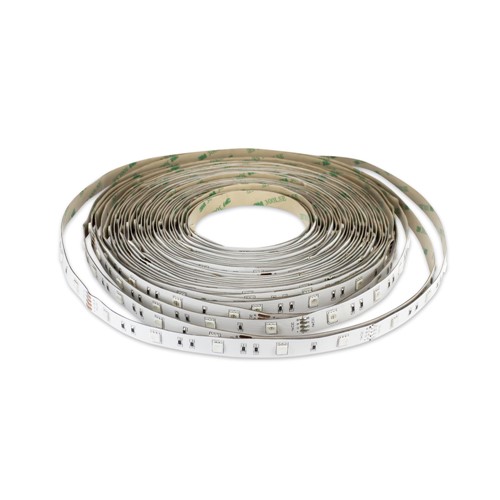

STRIP IP20 20M RGB 24V 4.8W/M 30LED/M 12MM WIDTH 115 BEAM BAG PACK INTEGRAL
Part Number:
ILSTRGBA115E
Ideal for large retail and hospitality installations, this 20 metre RGB Strip maintains a good light output with minimal voltage drop.
This 20M strip is also compatible with our new 5 metre roll (ILSTRGBA119E).
- Product Feature 1:

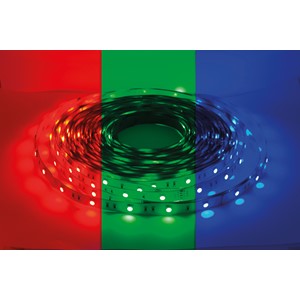

- RGB Colour Changing
- Product Feature 2:
- Can run up to 20 metres from one driver
- Product Feature 3:
- 24V DC Constant Voltage
- Product Feature 4:
- 30 LEDs per metre
- Product Feature 5:
- 4.8W per metre
- Product Feature 6:
- LED size 50:50
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788242697 |
|---|---|
| Quick Order Code | 487820 |
| Category | Strips |
| Range Name | RGB Strip |
| Product Type | Colour strip |
| Market Segment | Commercial indoor, Residential indoor |
| Warranty (Years) | 3 |
Physical Data
| Product Width (mm) | 12 |
|---|---|
| Product Weight (g) | 400 |
| Material | PCB |
| Construction | LED surface mounted on to strip |
| Strip Cut Points (mm) | 166 |
| Max Run Length (m) | 20 |
| Placement / Application | Decorative indoor |
| Strip length (M) | 20 |
| Strip Width (mm) | 12 |
Light Data
| Colour Temperature Name | RGB |
|---|---|
| Beam Angle | 115 |
| Colour Type | RGB |
| LED Size (mm) | 5050 |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 30 |
| Lifetime (hours) | 25000 |
Electrical Data
| Power Consumption per meter (W/m) | 4.8 |
|---|---|
| Voltage (V) | 24 |
| Voltage Range (v) | 24 |
| Watts per metre | 3.1W - 6w |
| Driver Included | No |
| Electric Current | DC |
| EN | IEC 62031 |
| LVD Certified | Yes |
Environmental
| EN | IEC 62031 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -25 |
| Maximum Operating Temperature (°C) | 60 |
Packaging
| Barcode | 5055788242697 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 700 |
| Package Length (mm) | 380 |
| Package Width (mm) | 380 |
| Package Depth (mm) | 12 |
| Outer Carton Barcode | 5055788242703 |
| Qty per Outer Carton | 20 |
| Outer Carton Length (mm) | 410 |
| Outer Carton Width (mm) | 350 |
| Outer Carton Depth (mm) | 400 |
