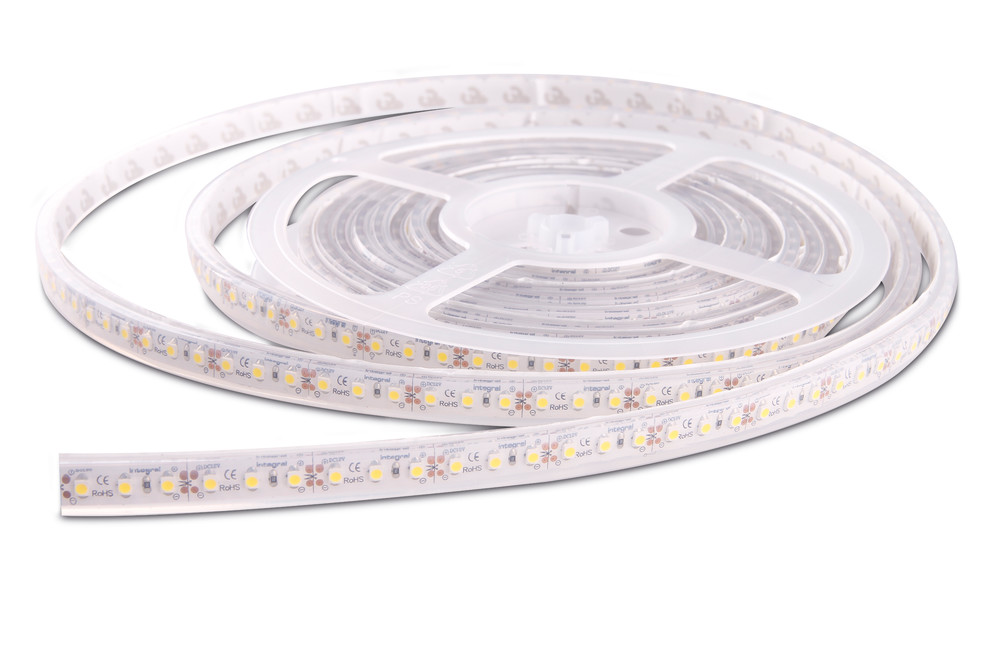

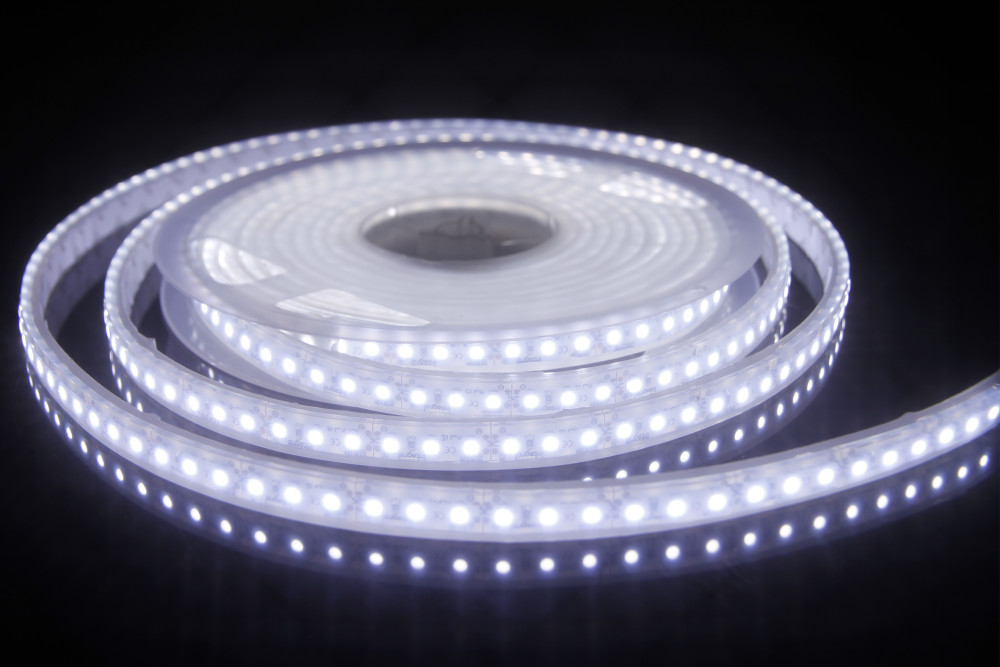

STRIP IP67 5M 6500K 12V 8W/M 620LM/M 120LED/M 10MM WIDTH 115 BEAM BAG PACK INTEGRAL
Part Number:
ILSTWHIC015E
This cool daylight LED strip has 120 LEDs per metre and is constructed using high quality materials to ensure a consistent light and colour across the strip. This LED strip is IP67 rated and is suitable for indoor and outdoor applications. Each 5m reel is supplied with an easy-to-follow installation guide and 20 mounting clips. Additional accessories are available to purchase. A suitable constant voltage driver is required, depending on the total power requirement of the connected strip(s).
- Product Feature 1:
- Cool Daylight
- Product Feature 2:
- 12V DC Constant Voltage
- Product Feature 3:
- 8W per metre
- Product Feature 4:
- LED size 35:28
- Availability:
-
52
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788220794 |
|---|---|
| Quick Order Code | 138290 |
| Category | Strips |
| Range Name | White Strip |
| Product Type | White strip |
| Market Segment | Residential indoor, outdoor |
| Warranty (Years) | 3 |
Physical Data
| Product Width (mm) | 10 |
|---|---|
| Product Weight (g) | 480 |
| Material | PCB |
| Construction | LED surface mounted on to strip, silicone poured on to seal |
| Strip Cut Points (mm) | 25 |
| Max Run Length (m) | 5 |
| Placement / Application | Decorative indoor, outdoor |
| Strip length (M) | 5 |
| Strip Width (mm) | 10 |
Light Data
| Luminous efficacy (lm/W) | 77 |
|---|---|
| Lumens per meter (lm/m) | 620 |
| Correlated Colour Temperature (CCT) (K) | 6500 |
| Colour Temperature Name | Cool Daylight |
| Beam Angle | 115 |
| Colour Rendering Index (CRI) | 80 |
| Colour Type | White |
| LED Size (mm) | 3528 |
| LED Type | Surface mounted device (SMD) |
| LEDs per meter | 120 |
| Lifetime (hours) | 13000 |
Electrical Data
| Power Consumption per meter (W/m) | 8 |
|---|---|
| Voltage (V) | 12 |
| Watts per metre | 6.1w - 10w |
| Driver Included | No |
| Electric Current | DC |
| EN | EN-62031 |
| LVD Certified | Yes |
Environmental
| EN | EN-62031 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP67 |
| Lowest Operating Temperature (°C) | -25 |
| Maximum Operating Temperature (°C) | 60 |
Packaging
| Barcode | 5055788220794 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 487.5 |
| Package Length (mm) | 205 |
| Package Width (mm) | 230 |
| Package Depth (mm) | 11 |
| Outer Carton Barcode | 05055788220961 |
| Qty per Outer Carton | 40 |
| Outer Carton Length (mm) | 560 |
| Outer Carton Width (mm) | 380 |
| Outer Carton Depth (mm) | 260 |
