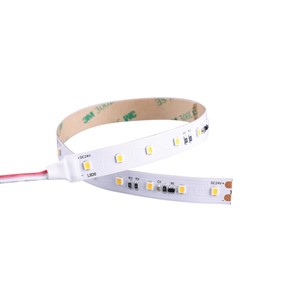

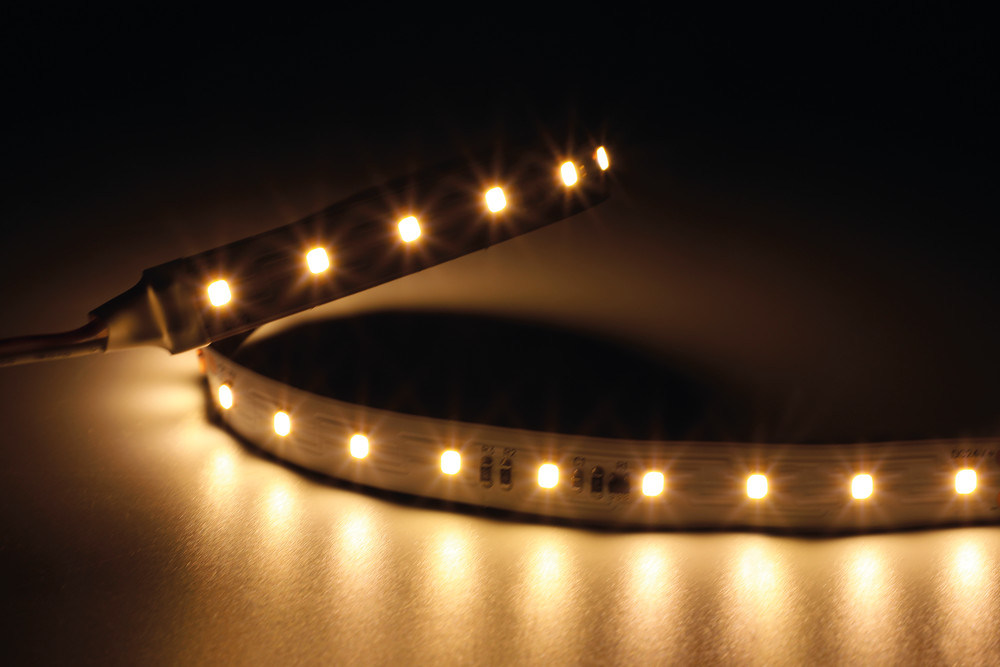

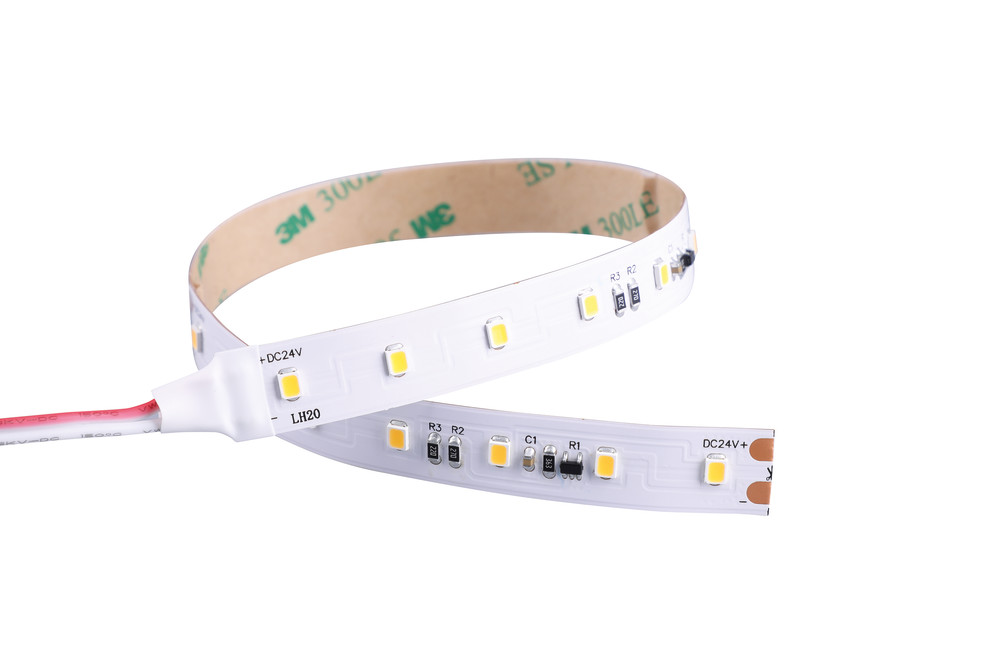

ULTRALONG STRIP IP20 15M 3000K 24V 6W/M 720LM/M 70LED/M 12MM WIDTH 120 BEAM BAG PACK INTEGRAL
Part Number:
ILSTWHIA139E
Integral LED produces high-quality Ultra-Long LED Strips for designs where strips of extensive length are required. They are manufactured to minimise the effects of voltage drop, give a consistent light across the strip, and reduce the number of wires and connections needed compared to shorter strips. An ideal solution for substantial hospitality, retail, domestic and commercial projects.
- Product Feature 1:
- For extensive LED strip projects - indoor use
- Product Feature 2:
- Warm White
- Product Feature 3:
- 24V DC Constant Voltage
- Product Feature 4:
- 6W per metre
- Product Feature 5:
- The entire length of the LED strip can be powered with one compatible LED Driver
- Availability:
-
26
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788256441 |
|---|---|
| Quick Order Code | 874354 |
| Category | Strips |
| Range Name | Ultralong strip |
| Product Type | White strip |
| Market Segment | Commercial indoor, Residential indoor |
| Features | Ultra Long |
| Warranty (Years) | 5 |
Physical Data
| Product Weight (g) | 500 |
|---|---|
| Material | PCB |
| Construction | LED surface mounted on to strip |
| Strip Cut Points (mm) | 100 |
| Max Run Length (m) | 15 |
| Placement / Application | Decorative indoor |
| Strip length (M) | 15 |
| Strip Width (mm) | 12 |
Light Data
| Lumens per meter (lm/m) | 720 |
|---|---|
| Correlated Colour Temperature (CCT) (K) | 3000 |
| Colour Temperature Name | Warm White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Colour Type | White |
| LED Size (mm) | 2835 |
| LEDs per meter | 70 |
| Lifetime (hours) | 50000 |
| Light Source | Non-replaceable |
Electrical Data
| Power Consumption per meter (W/m) | 6 |
|---|---|
| Voltage (V) | 24 |
| Watts per metre | 3.1W - 6w |
| Driver Included | No |
| Electric Current | DC |
| EN | EN-62031 |
| LVD Certified | Yes |
Environmental
| EN | EN-62031 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | F |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Barcode | 5055788256441 |
|---|---|
| Single box qty | 1 |
| Package Length (mm) | 300 |
| Package Width (mm) | 300 |
| Package Depth (mm) | 15 |
| Outer Carton Barcode | 5055788258421 |
| Qty per Outer Carton | 15 |
| Outer Carton Length (mm) | 300 |
| Outer Carton Width (mm) | 300 |
| Outer Carton Depth (mm) | 300 |
