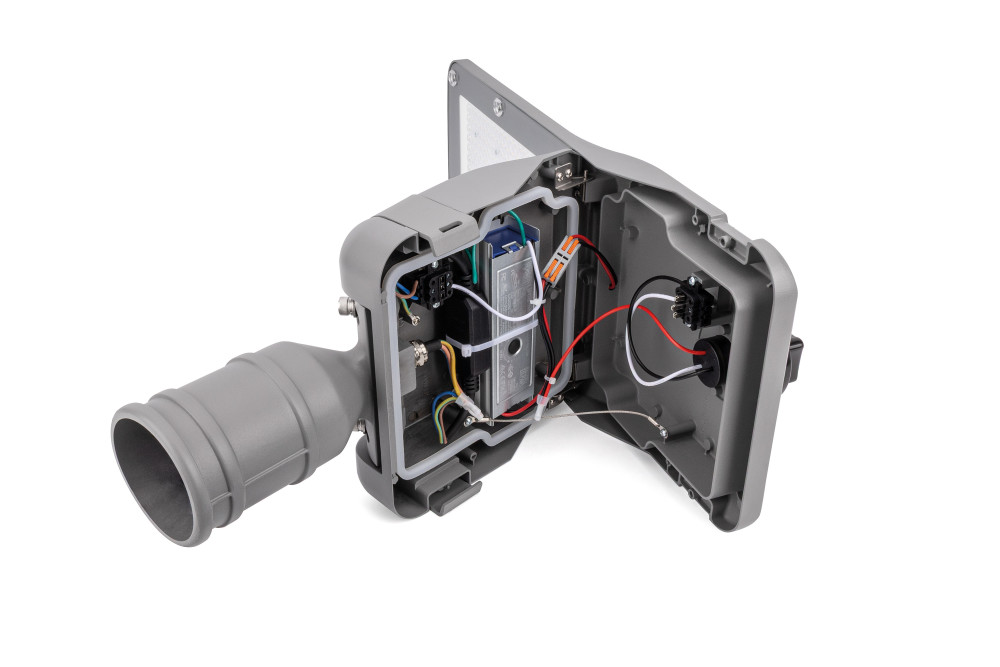

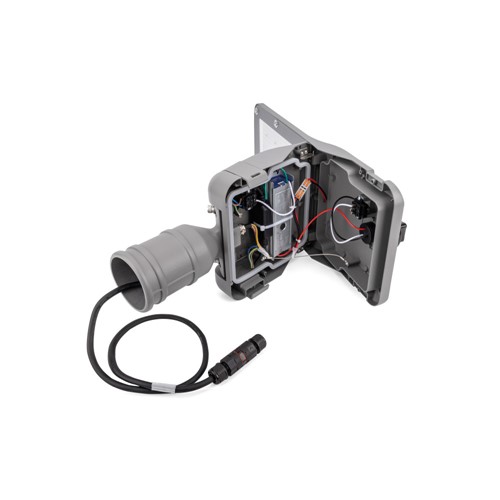

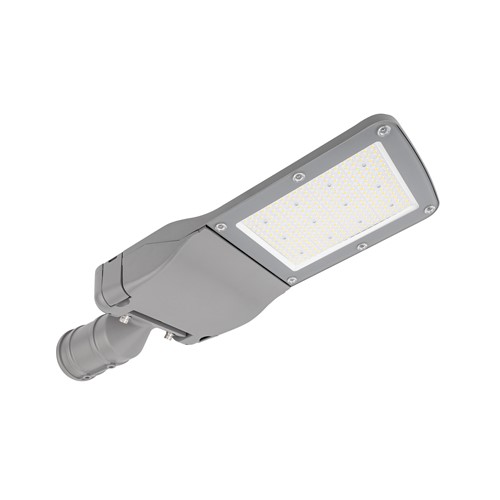

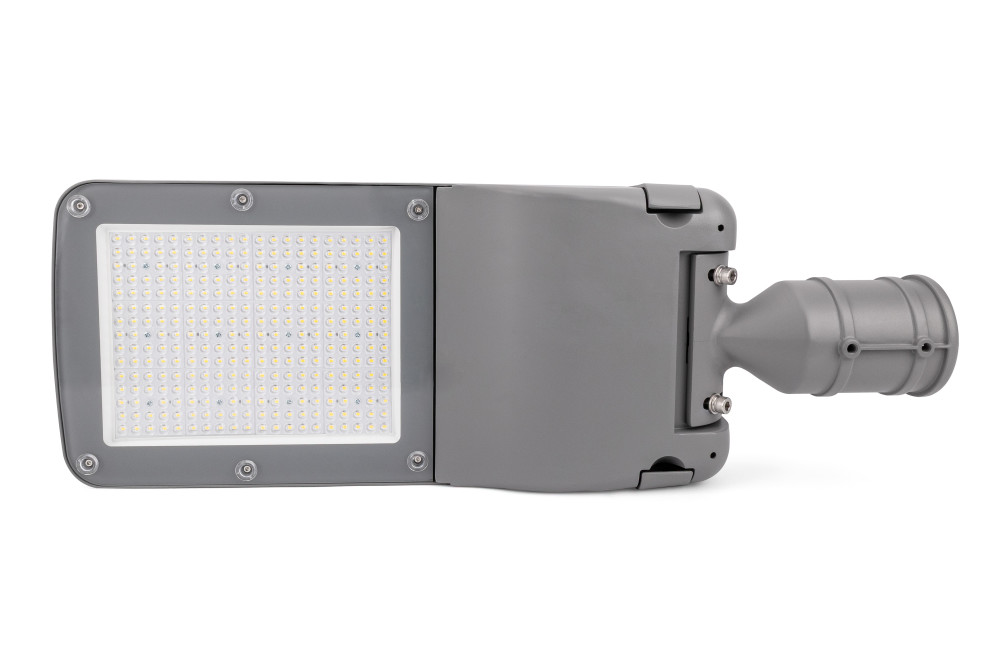

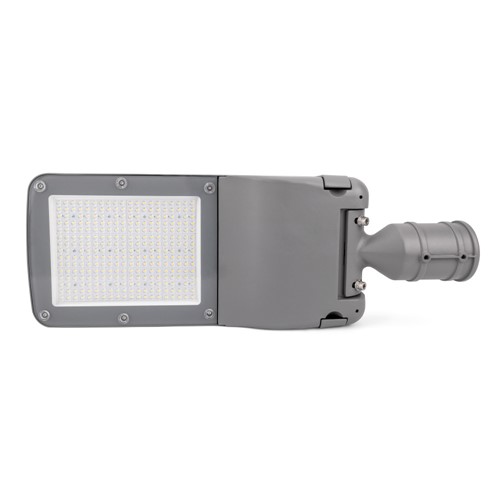

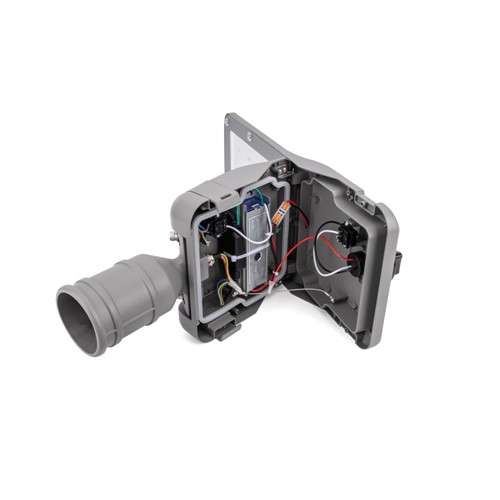

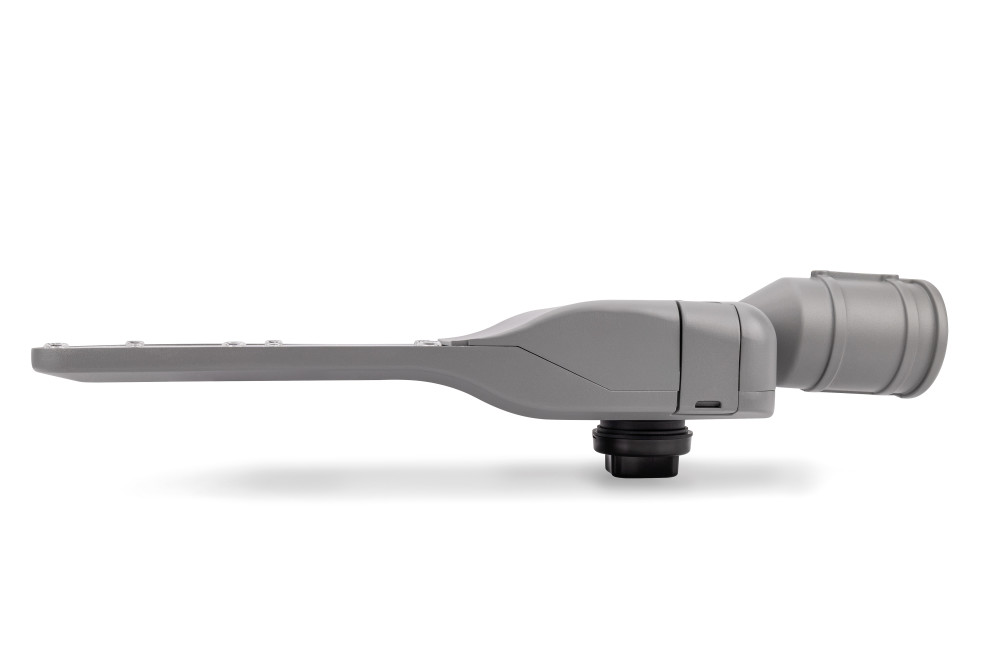

VISION STREETLIGHT 80W 12800lm 4000K T2M Optics IP65 76mm Dia SPIGOT IK08 160LM/W NEMA3 with CAP , Knife switch Auto Disconnector RAL7037 Lifud Driver, 10KV surge protector 1M 3*1.5mmSq Cable with IP68 Ext. Connector, 5 Year Warranty
Part Number:
ILSLB011
- Product Feature 1:
- Compact LED design
- Product Feature 2:
- Ultra-efficient 160Lm/w
- Product Feature 3:
- Ultra efficient LED lantern for residential street, highways, walkways and car parks
- Product Feature 4:

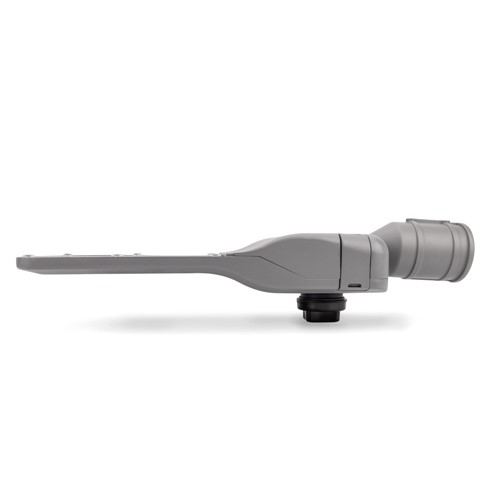

- Suitable for Post-top & side-entry mounting with adjustable tilt settings
- Product Feature 5:

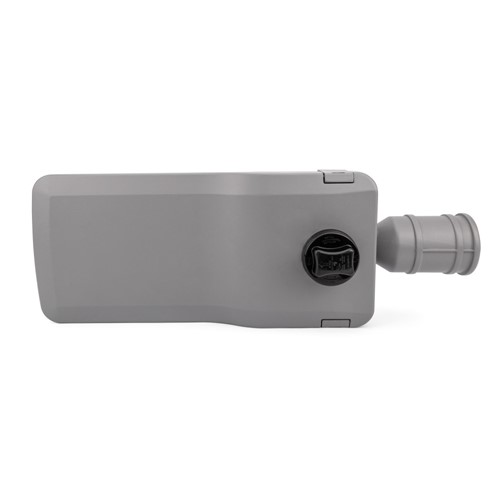

- 3-pin NEMA socket with shorting cap supplied
- Product Feature 6:
- Suitable for Post-top & side-entry mounting with adjustable tilt settings
- Product Feature 7:
- Suitable for 76mm Spigot mounting
- Product Feature 8:
- Contact us for columns and accessories
- Availability:
-
8
More stock due in on 13/06/2025
Suggested products
Details
| Barcode | 5055788302896 |
|---|---|
| Quick Order Code | 466995 |
| Category | Luminaires |
| Range Name | Vision |
| Product Body Finish | Grey |
| Market Segment | Commercial and Outdoor |
| Warranty (Years) | 5 |
Physical Data
| Product Length (mm) | 654.3 |
|---|---|
| Product Depth (mm) | 150.3 |
| Product Width (mm) | 227 |
| Product Weight (g) | 4390 |
| Material | Aluminium, Tempered Glass |
| Construction | Aluminium die-cast heat-sink, Tempered Glass protective front cover, Integrated driver |
| Bulb or Luminaire Shape | Rectangle |
| Luminaire Fixing | Bracket for Wall & Pole Mounting |
| Placement / Application | Outdoor |
Light Data
| Beam Type | Asymmetrical |
|---|---|
| Luminous Flux in Lumens (lm) | 12800 |
| Luminous efficacy (lm/W) | 160 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | T2-M |
| Colour Rendering Index (CRI) | 70 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Sensor / Overide | No |
Electrical Data
| Power Consumption (W) | 72 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 100-240 |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Back/Recessed side) | IP65 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Barcode | 5055788302896 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 5620 |
| Package Length (mm) | 735 |
| Package Width (mm) | 300 |
| Package Depth (mm) | 200 |
| Qty per euro pallet | 60 |
