PROFILE ALUMINIUM RECESSED BLACK ANODISED 1M BLACK FROSTED DIFFUSER 23.2 X 7.9MM INCLUDE 2 ENDCAPS AND 2 MOUNTING BRACKETS INTEGRAL
Part Number:
ILPFR071B

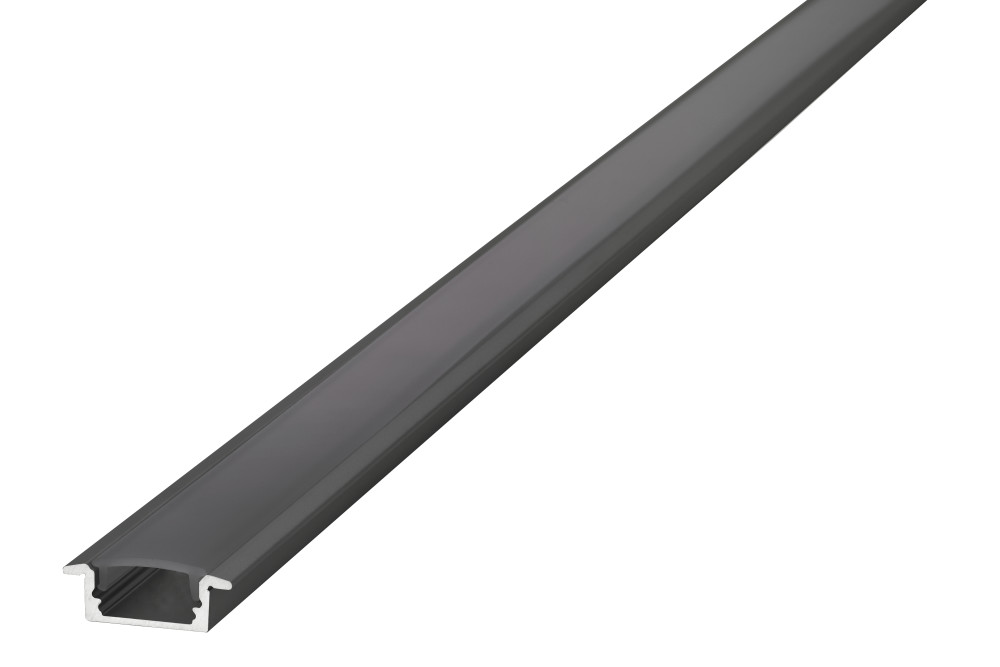

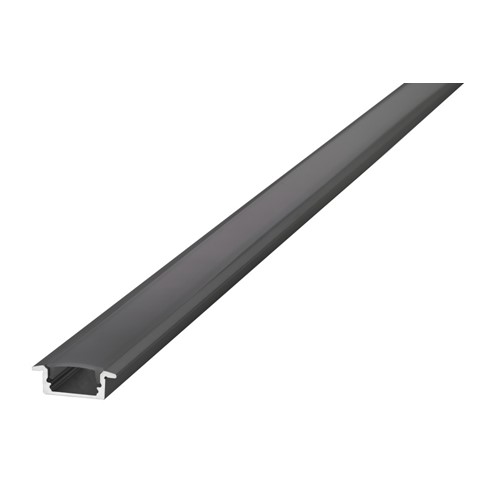

Enhance the appearance of your LED Strip lighting installation with this new and stylish 1-metre black anodised aluminium extrusion, complete with a matt black frosted polycarbonate diffuser.

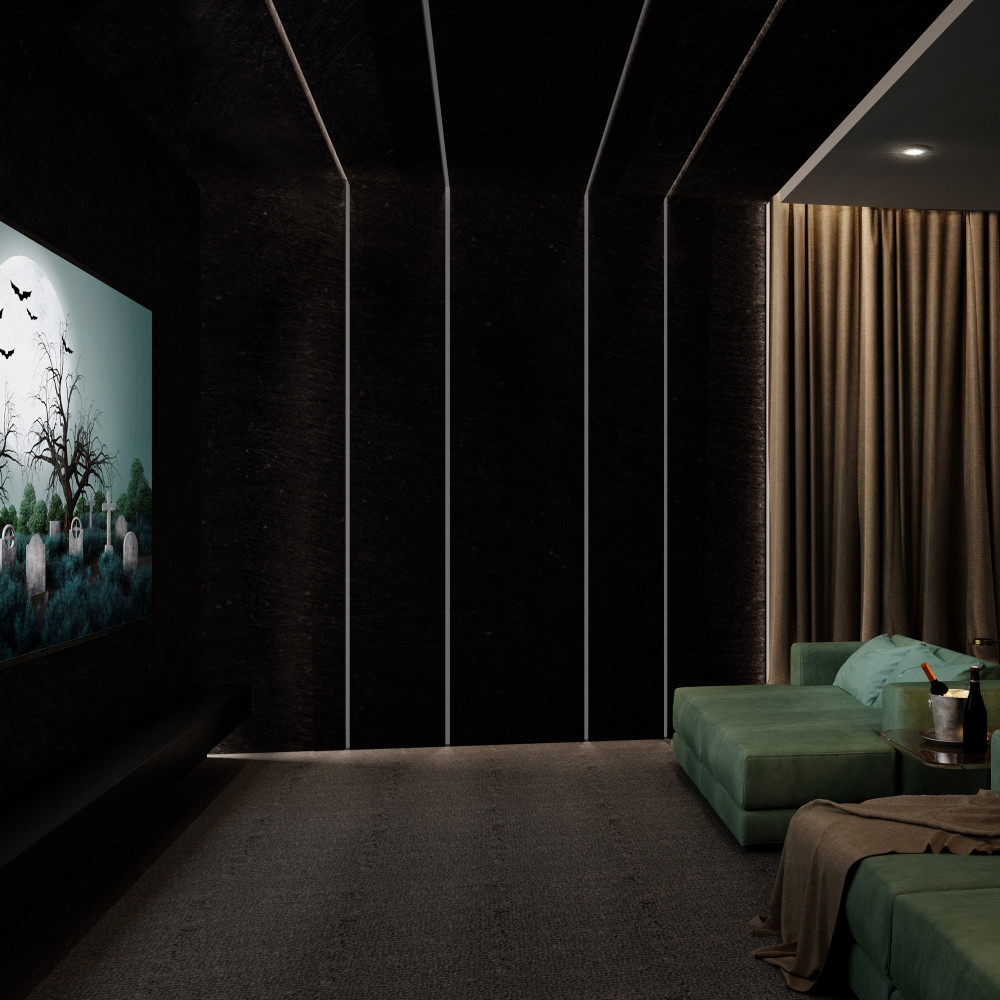

This aluminium profile can accommodate any IP20 or IP65 LED strip ranging between 4mm and 12mm width. It is particularly suitable for a wide range of discreet lighting applications such as hallways, home cinemas, theatres, exhibition halls and venues.
Accessory White Frosted diffuser available to purchase separately.
- Product Feature 1:
- Black Frosted Diffuser
- Product Feature 2:
- Suitable for up to 12mm width Integral LED IP20/IP65 Strips
- Product Feature 3:
- Complete with 2 endcaps (1 with cable entry and 1 without cable entry) and 2 mounting brackets
- Availability:
-
91
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788287339 |
|---|---|
| Quick Order Code | 894996 |
| Category | Strips |
| Range Name | Recessed |
| Product Type | Aluminium Profiles |
| Warranty (Years) | 1 |

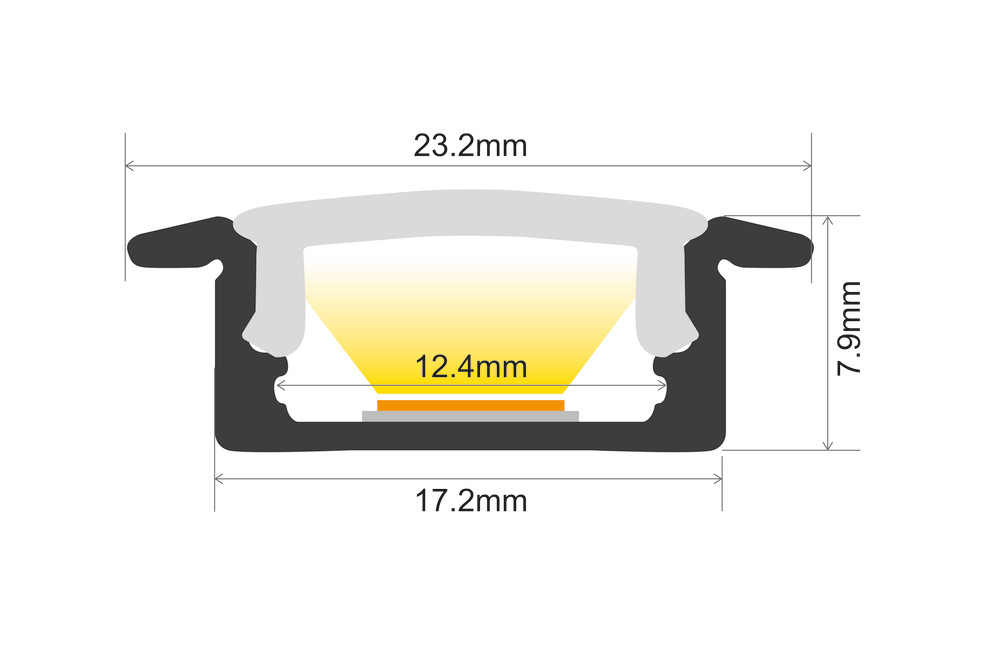

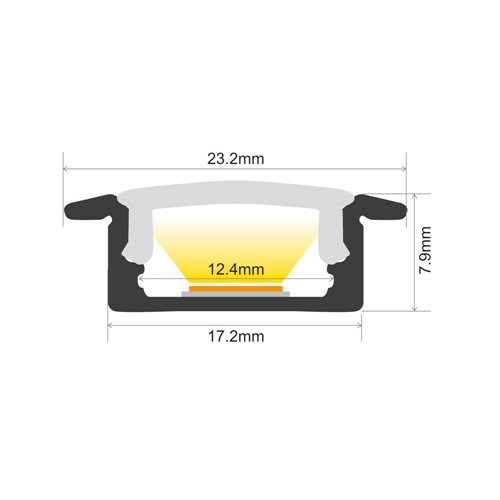

Physical Data
| Product Length (mm) | 1000 |
|---|---|
| Product Depth (mm) | 7.9 |
| Product Width (mm) | 23.2 |
| Product Weight (g) | 127 |
| Material | Aluminium, PC |
| Max Strip Width (mm) | 12 |
| Mounting Type | Recessed |
| Placement / Application | Decorative indoor |
| Profile Height (in mm) | 7 to 9 |
| Profile Width | 19 to 25.4 |
| Length (m) | 1 |
Light Data
Electrical Data
Environmental
| CE RoHS | Yes |
|---|---|
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Max Strip IP Rating | 65 |
| Profile IP Rating | IP20 |
Packaging
| Barcode | 5055788287339 |
|---|---|
| Package Weight (g) | 167 |
| Package Length (mm) | 1040 |
| Package Width (mm) | 23.2 |
| Package Depth (mm) | 7.9 |
