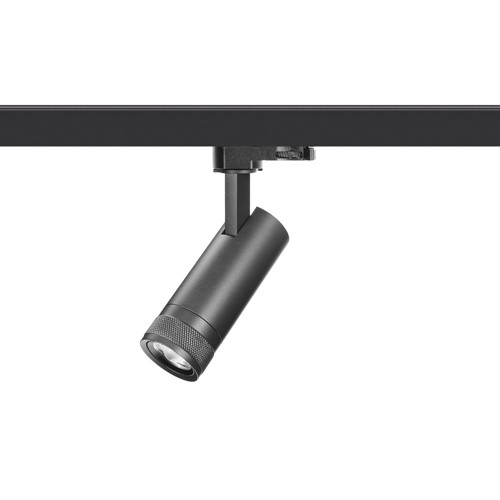

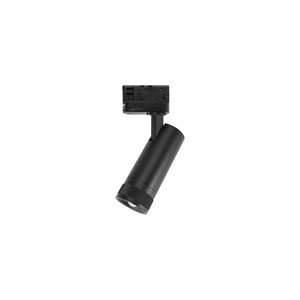

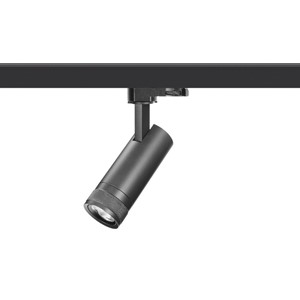

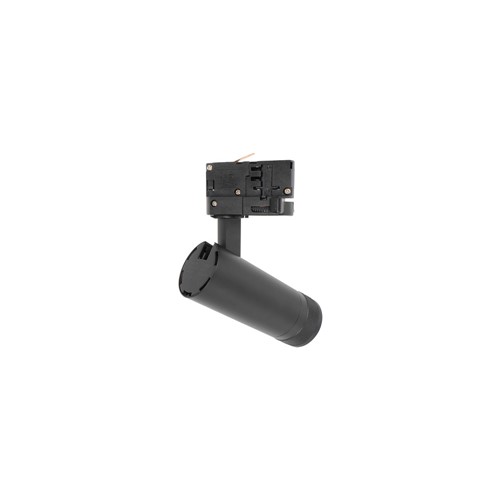

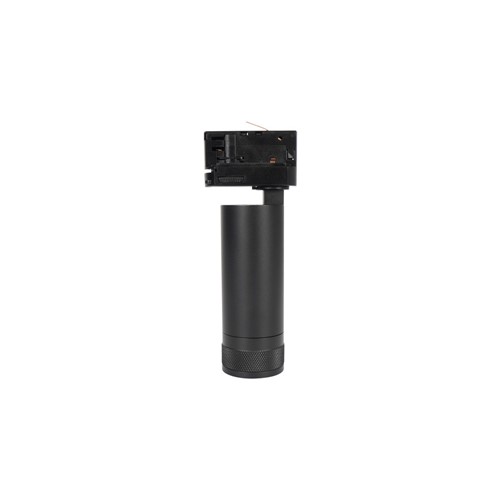

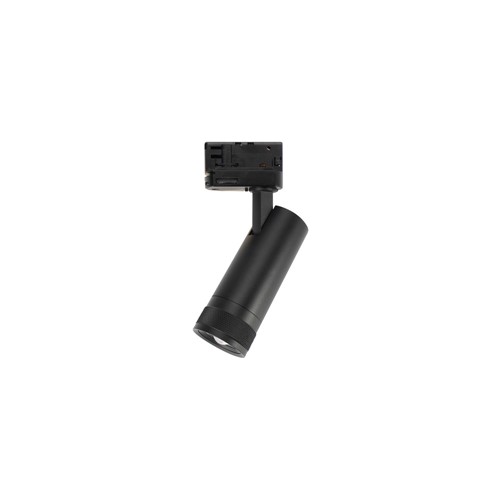

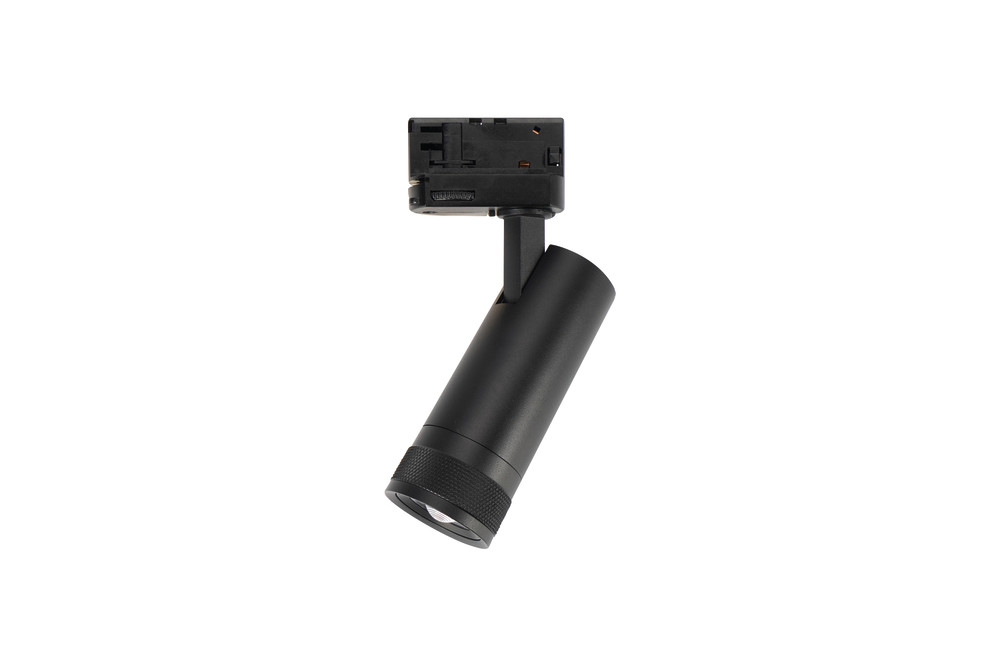

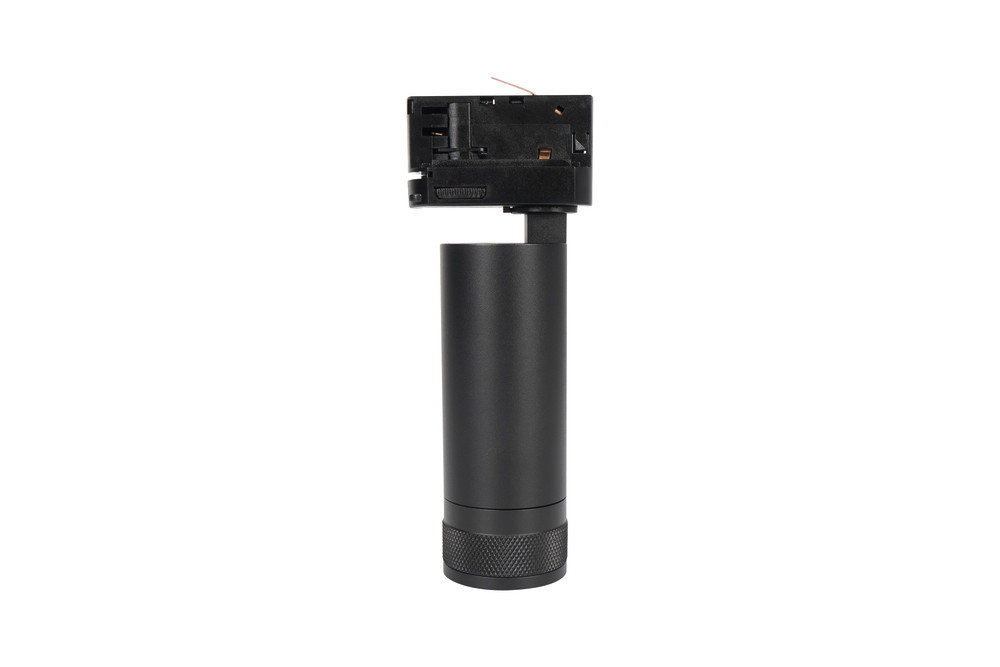

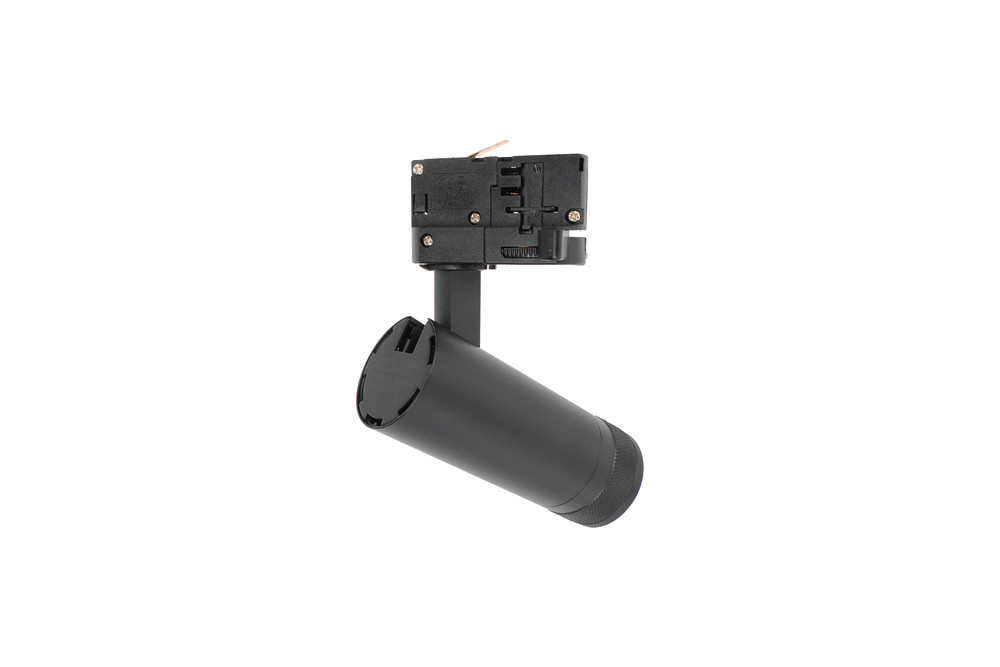

FOCUSPRO 8W BLACK LED SPOT LIGHT NON-DIMMABLE ZOOMABLE BEAM ANGLE 18-50 DEG TRACK MOUNTED 3 CIRCUIT 4000K 131MM CRI90 500LM 93LM/W 220-240V
Part Number:
ILTSL005

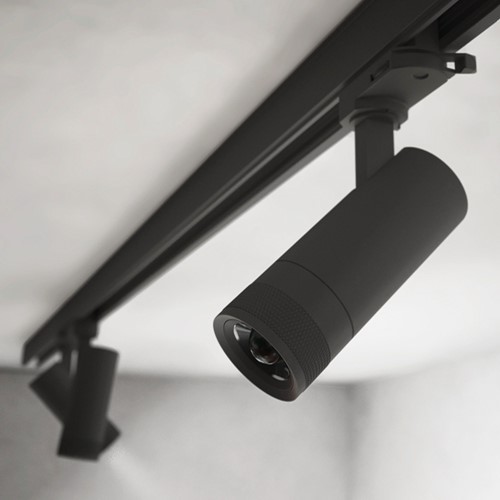

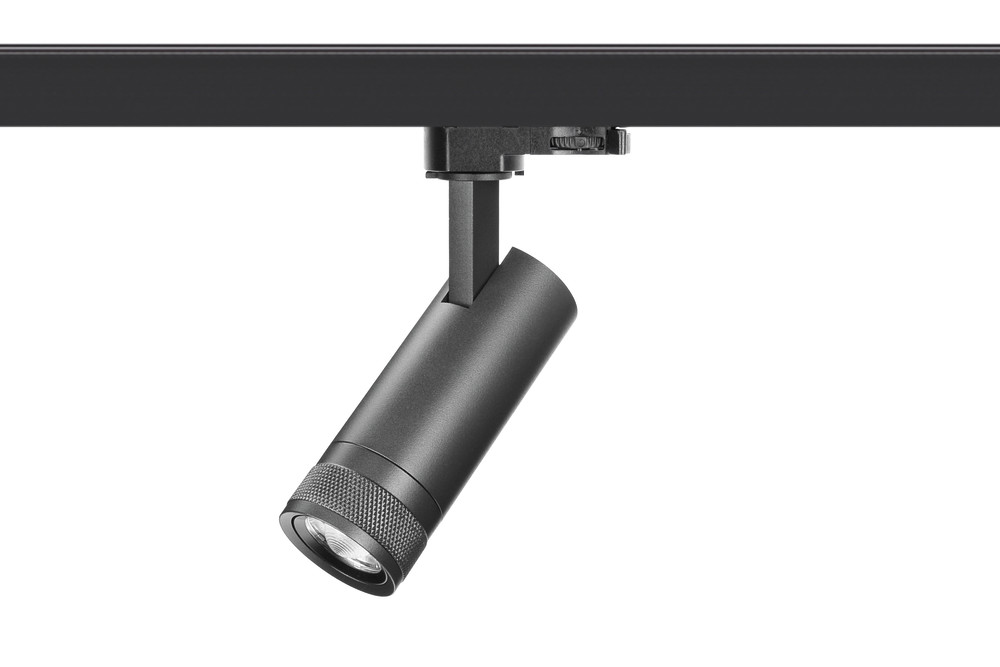

Integral’s track spots are designed to fit into Global 3 circuit track such as our Onetrack sold separately. They feature an adjustable zoom beam angle for superb light focus control, 100% aluminium body for a quality finish with impeccable heat dissipation and adjustable rotational and tilt angles for extra flexibility of install.
The 3-circuit option means you can turn on and off the spotlights independently from each other on the same length of the track.
We welcome enquiries for project customization including Triac, 0-10V and Dali dimmable. App controlled spots can also be provided. Please contact our sales team for more information.
- Product Feature 1:
- Adjustable beam angle with zoom control
- Product Feature 2:
- 90 degree tilt angle
- Product Feature 3:
- 355 degree rotational angle
- Product Feature 4:
- CRI90 real colour
- Product Feature 5:
- 3 circuit
- Availability:
-
44
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 829796 |
|---|---|
| Barcode | 5055788266150 |
| Category | Luminaires |
| Range Name | FocusPro |
| Product Body Finish | Black |
| Market Segment | Indoor |
| Warranty (Years) | 3 |

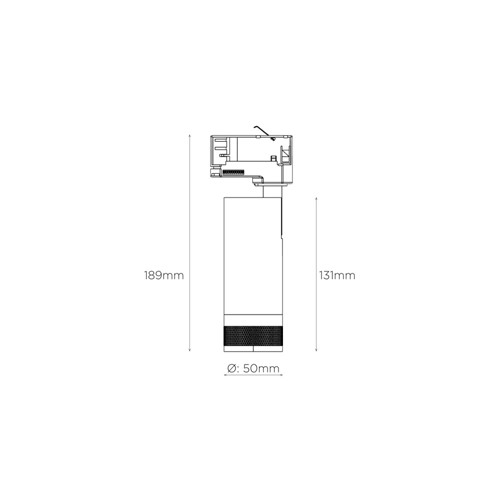

Physical Data
| Product Length (mm) | 131 |
|---|---|
| Product Depth (mm) | 50 |
| Product Width (mm) | 50 |
| Product Weight (g) | 400 |
| Material | 1070 Aluminium |
| Luminaire Fixing | Track |
| Placement / Application | Indoor |
Light Data
| Energy Efficiency Label (Image) | ILTSL005_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 500 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 18-50 |
| Colour Rendering Index (CRI) | 90 |
| Frequency Range (Hz) | 50/60 |
| Integrated Light Source | Yes |
| Lifetime (hours) | 50000 |
Electrical Data
| Power Consumption (W) | 8 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Dimming | Non-Dimmable |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | F |
| IP Rating (Ingress Protection) | IP20 |
Packaging
| Package Weight (g) | 500 |
|---|---|
| Package Length (mm) | 105 |
| Package Width (mm) | 105 |
| Package Depth (mm) | 257 |
Safety Guide
ILTSL005 - 50 DEG BEAM ANGLE
