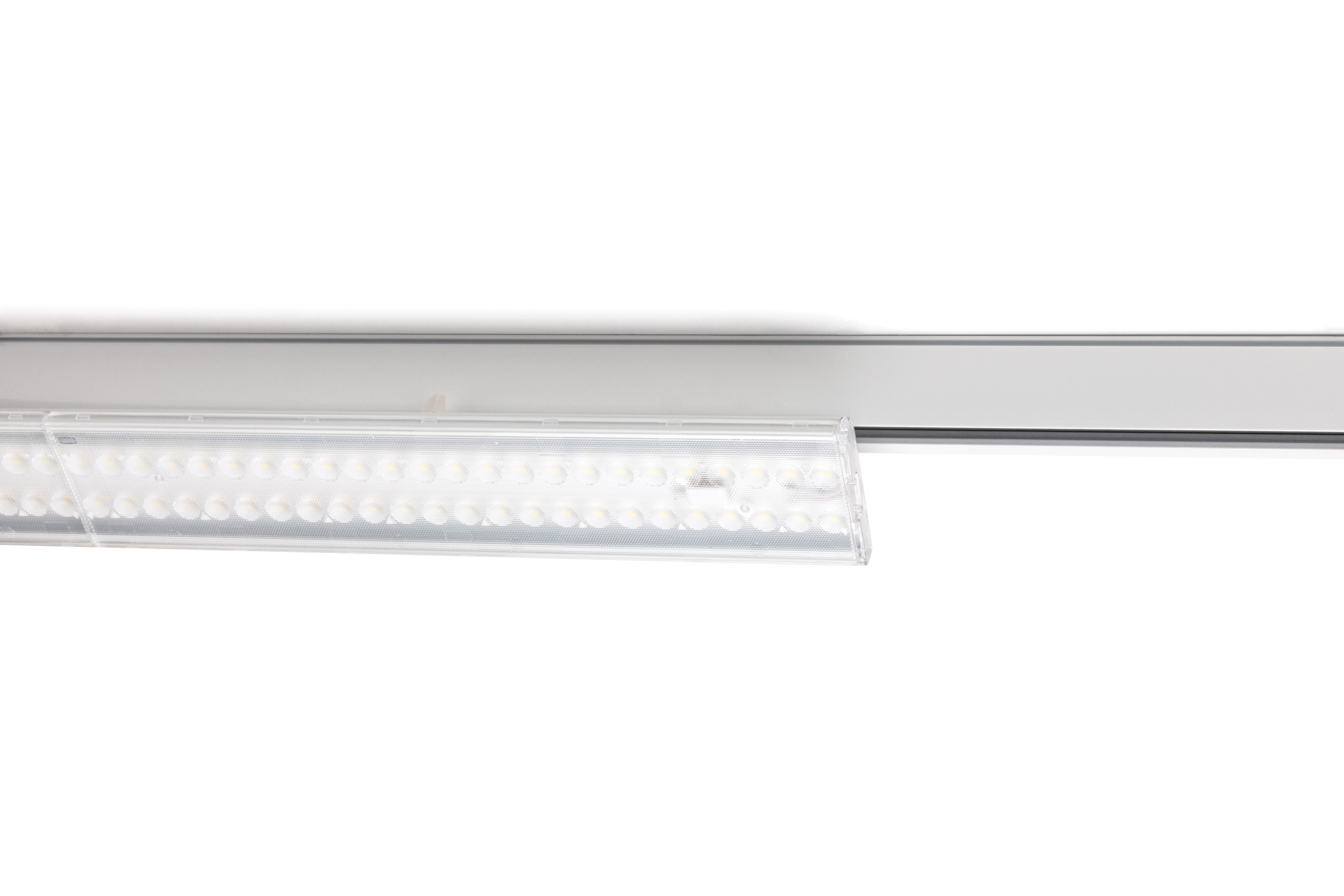

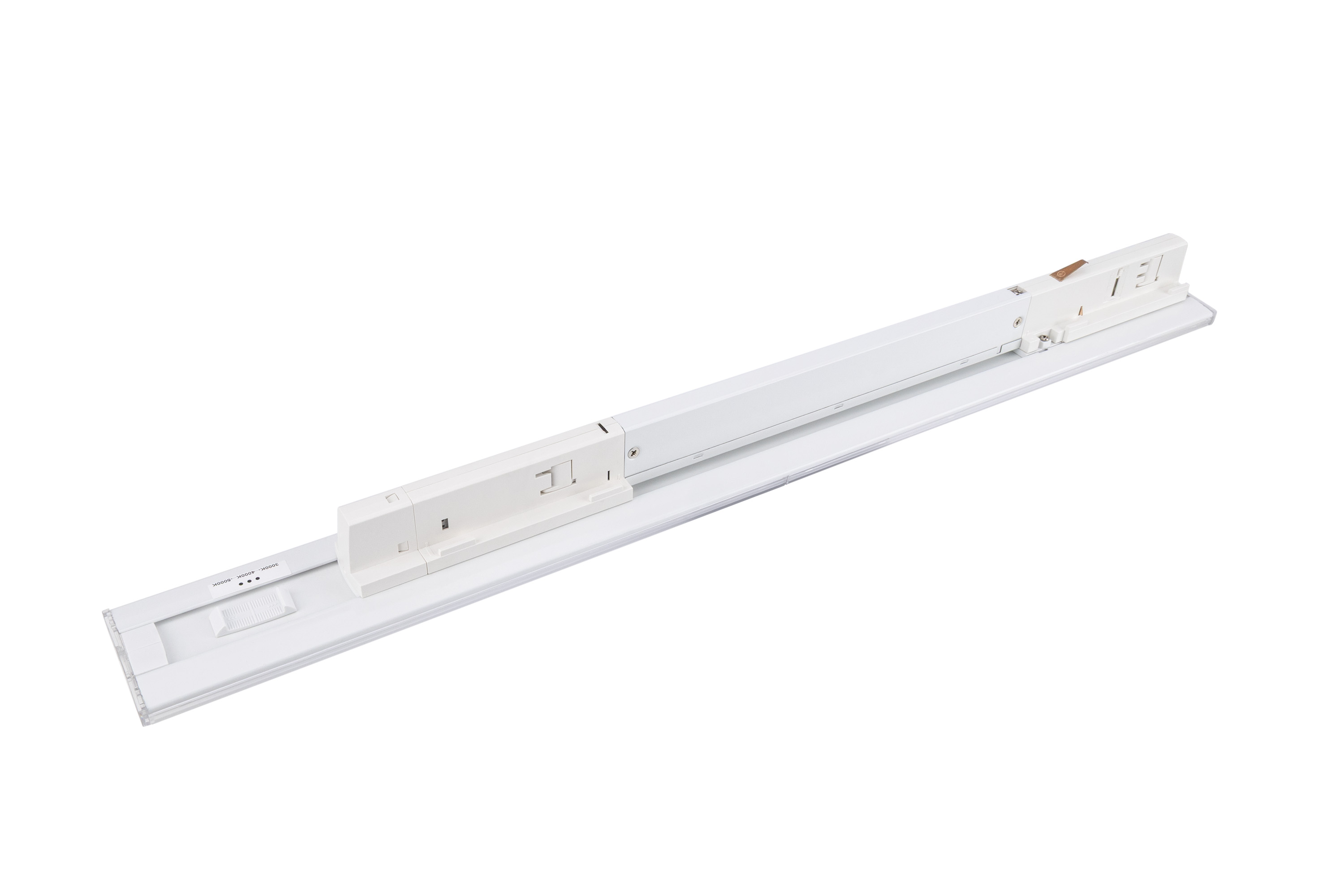

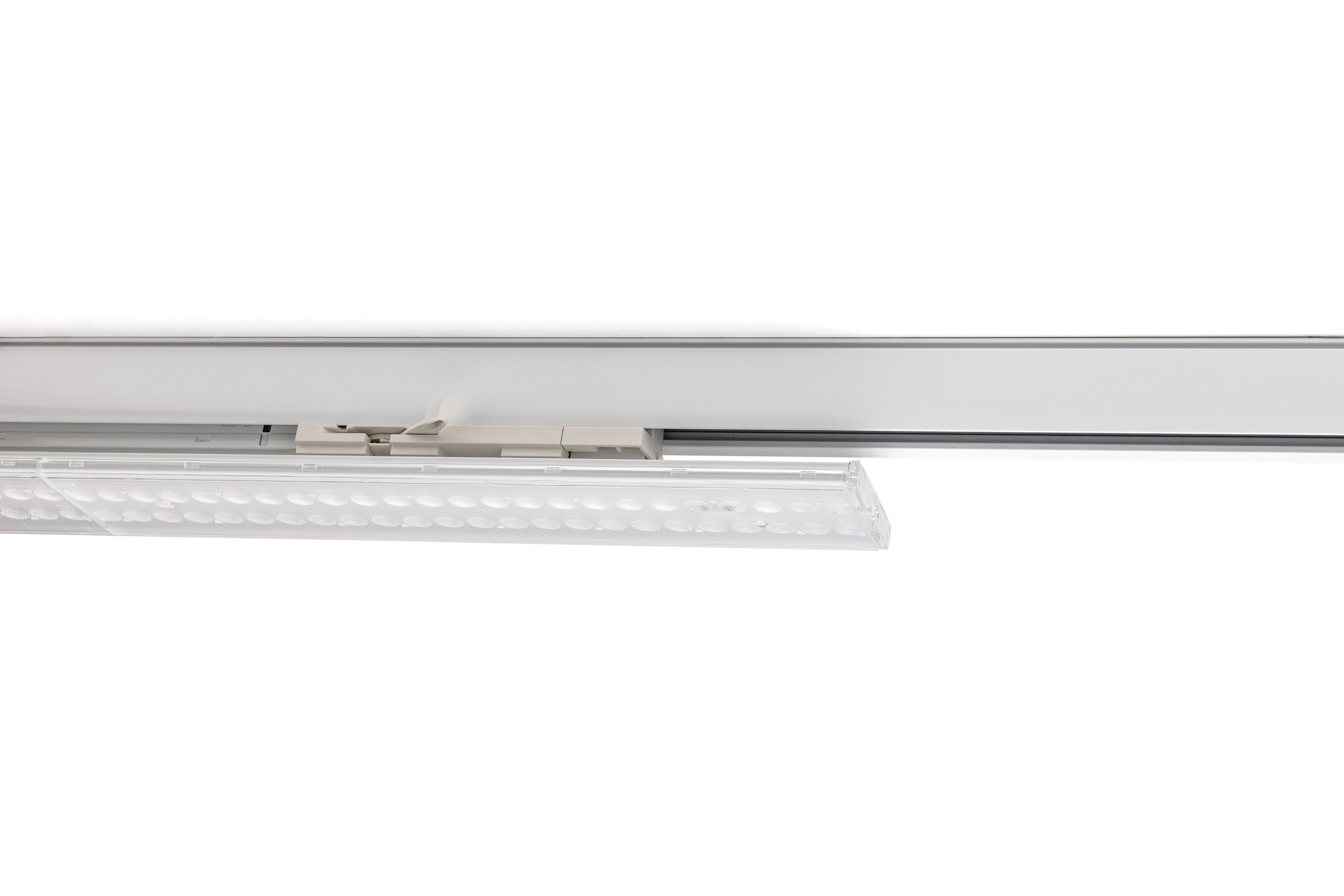

TRACKPRO LINEAR TILT & FIXED 600MM 90° BEAM 170LM/W 18/20/22/24W 3060/3400/3740/4080LM 3000/4000/5000K 80CRI 3SDCM CCT & WATTAGE SWITCHABLE 3-CIRCUIT NON-DIM WHITE
Part Number:
ILTLT60A001W
- Product Feature 1:
- Adjustable 600mm linear track light for 230V 3-circuit track
- Product Feature 2:
- Push up for a fixed direction, or pull down to tilt with 90° beam
- Product Feature 3:
- 4 Wattage Switchable: 18W(3060lm) / 20W(3400lm) / 22W(3740lm) / 24W(4080lm) - - efficacy up to 170lm/W
- Product Feature 4:
- CCT Switchable: 3000K / 4000K / 5000K & 3SDCM colour consistency
- Product Feature 5:
- For retail and commercial applications
- Availability:
-
47
Details
| Barcode | 5056884604891 |
|---|---|
| Quick Order Code | 418910 |
| Category | Luminaires |
| Range Name | TrackPro |
| Product Body Finish | White |
| Market Segment | Indoor |
| Warranty (Years) | 5 |
Physical Data
| Product Length (mm) | 600 |
|---|---|
| Product Depth (mm) | 54 |
| Product Width (mm) | 60 |
| Product Weight (g) | 700 |
| Material | Aluminium |
| Luminaire Fixing | Track |
| Placement / Application | Indoor |
| Control Gear | Non-replaceable |
Light Data
| Luminous Flux in Lumens (lm) | 3060 to 4080 |
|---|---|
| Correlated Colour Temperature (CCT) (K) | 3000 / 4000 / 5000 (CCT Switchable) |
| Colour Temperature Name | Warm White, Cool White, Daylight |
| Beam Angle | 90 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Integrated Light Source | Yes |
| Lifetime (hours) | 50000 |
| Light Source | Non-replaceable |
Electrical Data
| Power (W) | 18 / 20 / 22 / 24 (Power Switchable) |
|---|---|
| Power Consumption (W) | 18 / 20 / 22 / 24 (Power Switchable) |
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Dimming | Non-Dimmable |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| IP Rating (Ingress Protection) | IP20 |
Packaging
| Barcode | 5056884604891 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 970 |
| Package Length (mm) | 635 |
| Package Width (mm) | 88 |
| Package Depth (mm) | 103 |
| Outer Carton Barcode | 05056884604990 |
| Qty per Outer Carton | 8 |
| Outer Carton Length (mm) | 670 |
| Outer Carton Width (mm) | 380 |
| Outer Carton Depth (mm) | 230 |
Safety Guide
ILTLT60A001W-24W-3000K
