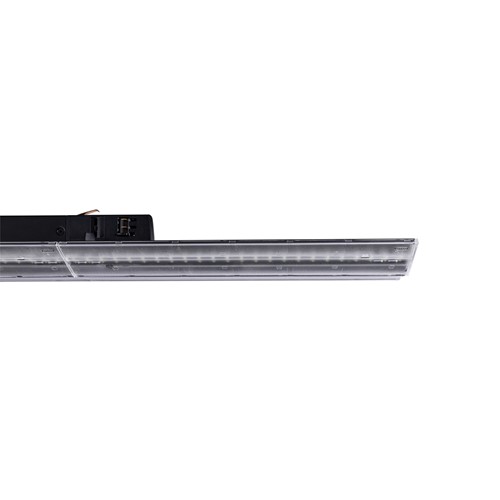

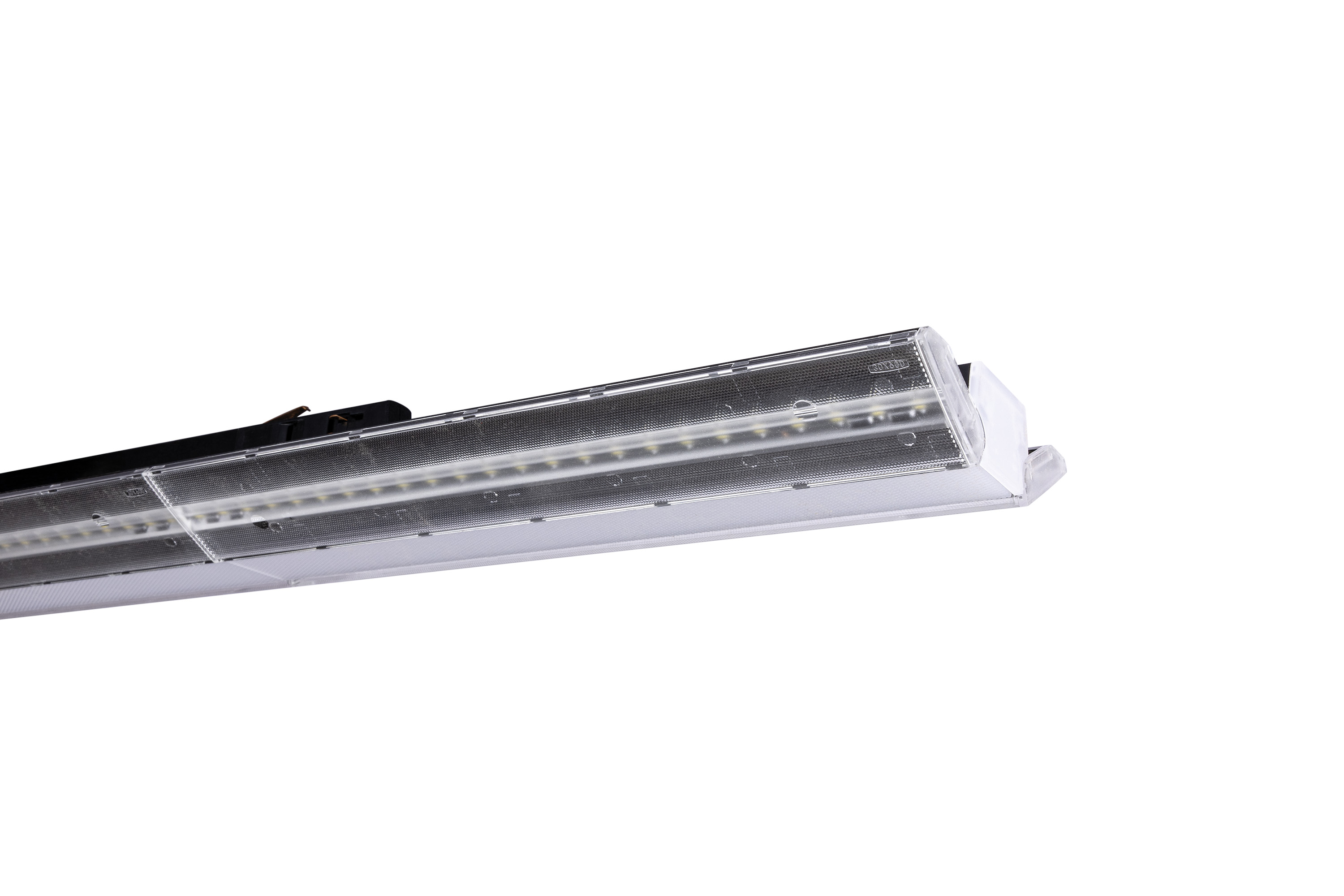

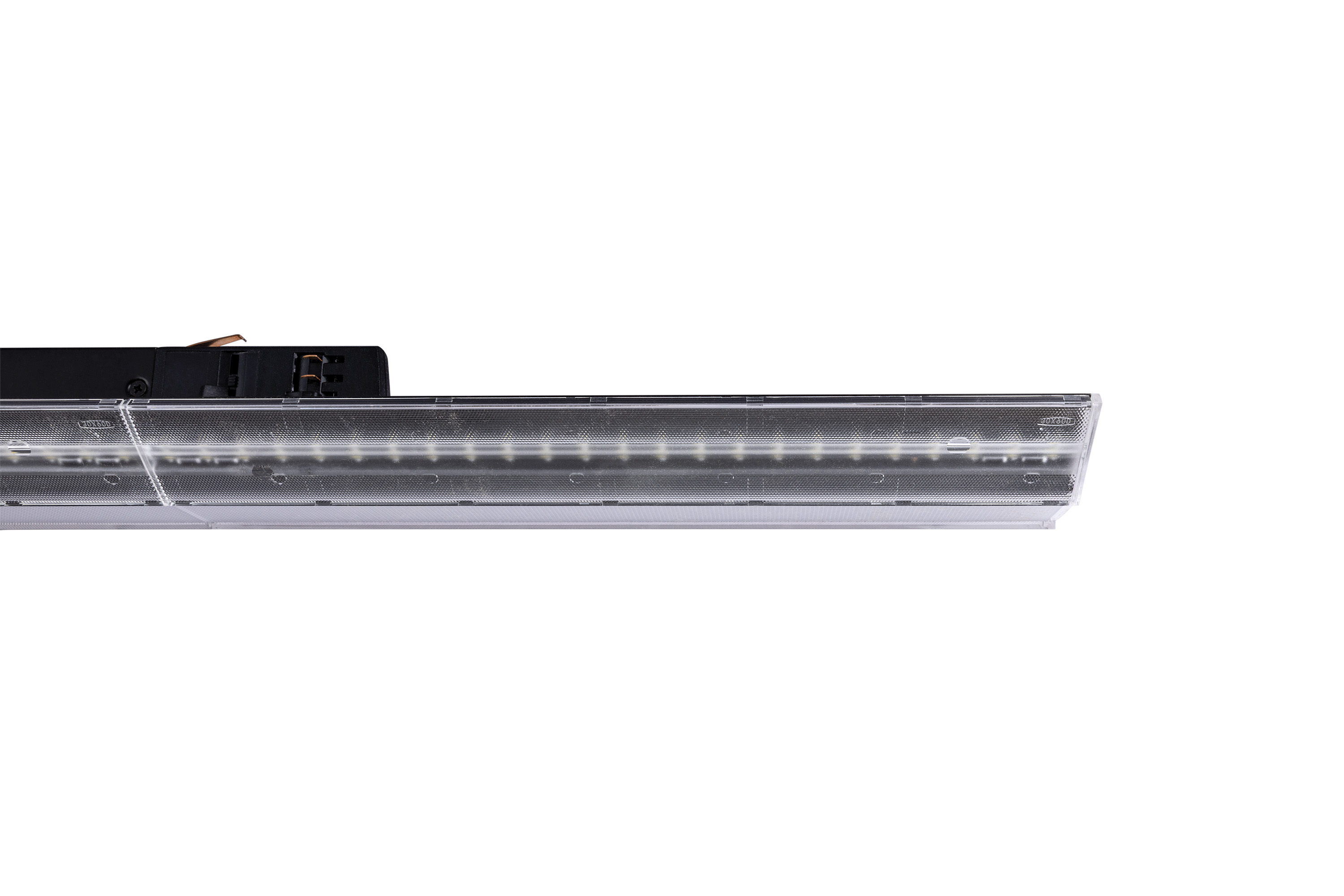

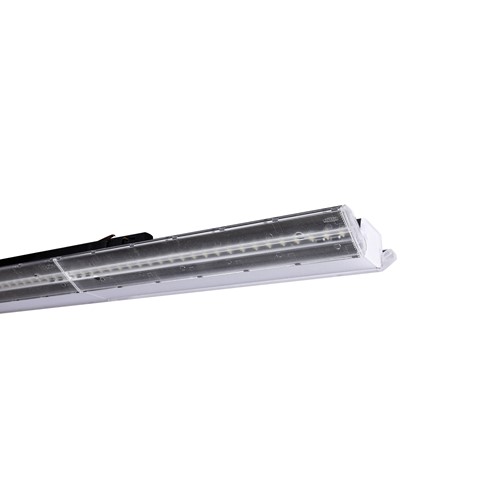

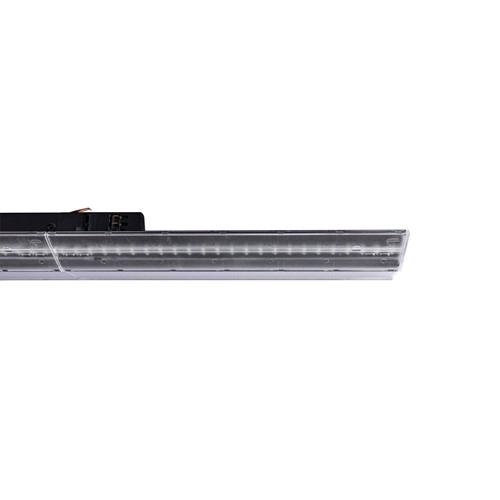

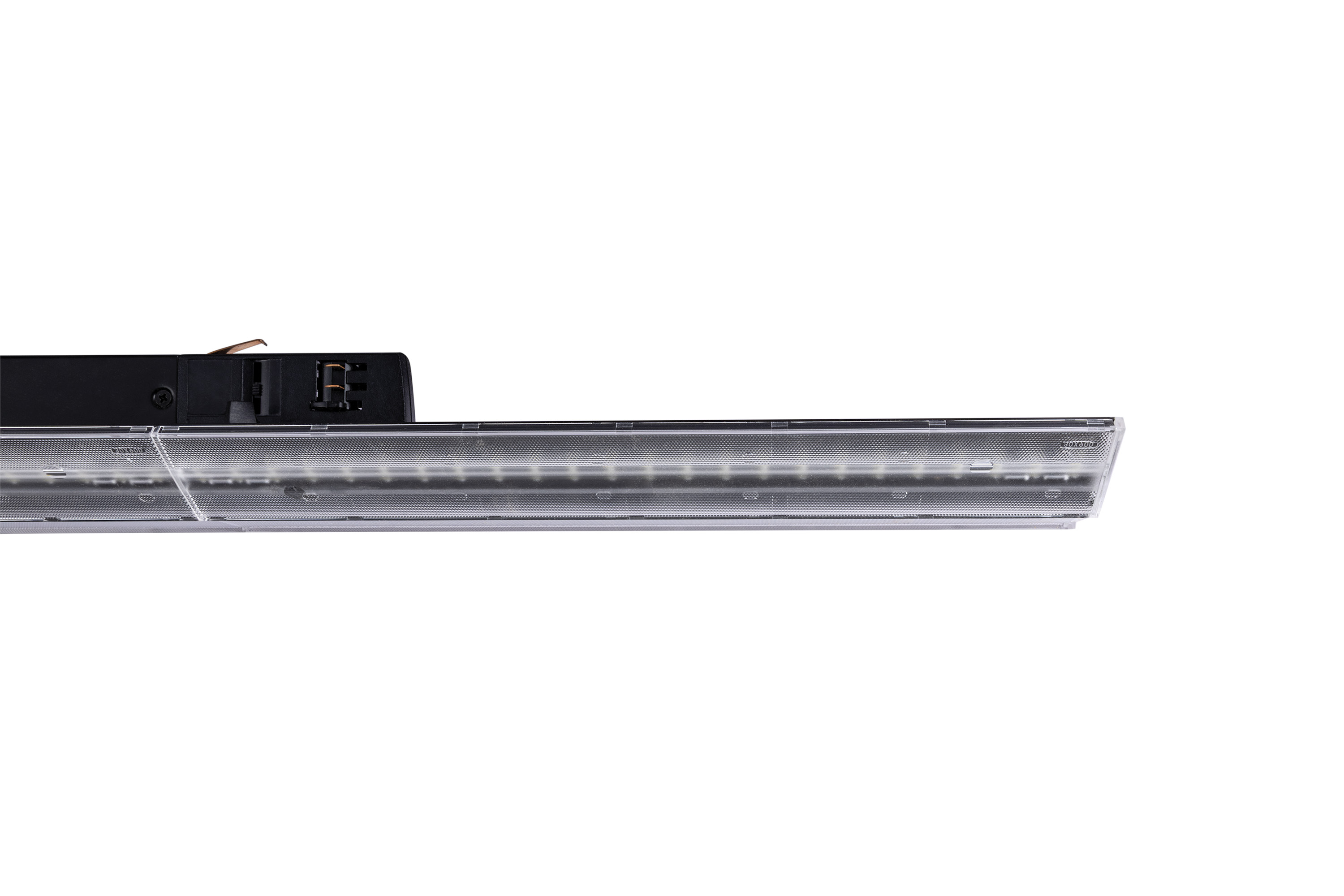

TRACKPRO LINEAR WING 1500MM 30x90° BEAM 150LM/W 6750/7500/8250/9000LM 45/50/55/60W 4000K 80CRI 3SDCM WATTAGE SWITCHABLE 3-CIRCUIT NON-DIM BLACK
Part Number:
ILTLW60A002B
- Product Feature 1:
- Linear track light for 230V 3-circuit track
- Product Feature 2:
- Twin adjustable wings with central light for complete aisle lighting (30° x 90°)
- Product Feature 3:
- 4 Wattage Switchable: 45W(6750lm) / 50W(7500lm) / 55W(8250lm) / 60W(9000lm) - efficacy up to 150lm/W
- Product Feature 4:
- CCT Switchable: 3000K / 4000K / 5000K & 3SDCM colour consistency
- Product Feature 5:
- For retail and commercial applications
- Availability:
-
71
Details
| Barcode | 5056884604976 |
|---|---|
| Quick Order Code | 054688 |
| Category | Luminaires |
| Range Name | TrackPro |
| Product Body Finish | Black |
| Market Segment | Indoor |
| Warranty (Years) | 5 |
Physical Data
| Product Length (mm) | 1493 |
|---|---|
| Product Depth (mm) | 68 |
| Product Width (mm) | 120 |
| Product Weight (g) | 2100 |
| Material | Aluminium |
| Luminaire Fixing | Track |
| Placement / Application | Indoor |
| Control Gear | Non-replaceable |
Light Data
| Luminous Flux in Lumens (lm) | 6750 to 9000 |
|---|---|
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 30x90 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Integrated Light Source | Yes |
| Lifetime (hours) | 50000 |
| Light Source | Non-replaceable |
Electrical Data
| Power (W) | 45 / 50 / 55 / 60 (Power Switchable) |
|---|---|
| Power Consumption (W) | 45 / 50 / 55 / 60 (Power Switchable) |
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Dimming | Non-Dimmable |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| IP Rating (Ingress Protection) | IP20 |
Packaging
| Barcode | 5056884604976 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 3050 |
| Package Length (mm) | 1532 |
| Package Width (mm) | 110 |
| Package Depth (mm) | 162 |
| Outer Carton Barcode | 05056884605072 |
| Qty per Outer Carton | 6 |
| Outer Carton Length (mm) | 1550 |
| Outer Carton Width (mm) | 350 |
| Outer Carton Depth (mm) | 350 |
Safety Guide
ILTLW60A002B-45W-4000K-0D
