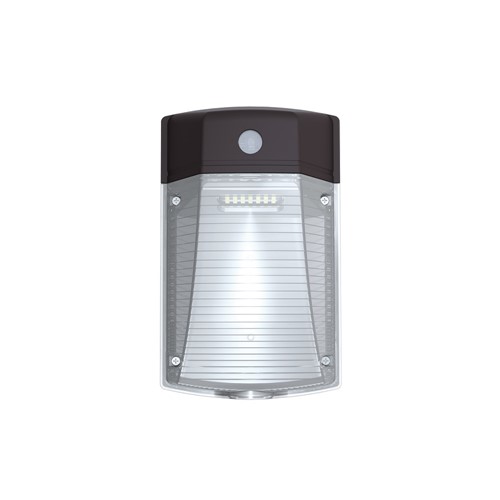

OUTDOOR WALL PACK COMPACT LIGHT SENSOR IP65 3150LM 30W 4000K 115 BEAM BLACK INTEGRAL
Part Number:
ILWPA001
THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT.
Integral Compact Tough Wall Pack Lights are ideal for perimeter lighting as well as pedestrian and vehicle access areas in commercial and industrial environments. The IP65 weatherproof and IK08 impact-resistant cast aluminium body makes it perfectly suitable for outdoor installation.This model features a light sensor, so the unit automatically switches on at dusk and off at dawn, increasing efficiency.
- Product Feature 1:
- Light sensor for increased efficiency
- Product Feature 2:
- Stylish and contemporary design
- Product Feature 3:
- Hard-wearing and weatherproof
- Product Feature 4:
- Cast-aluminium body
- Availability:
-
1
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 926174 |
|---|---|
| Barcode | 5055788241782 |
| Category | Luminaires |
| Range Name | Compact Tough |
| Product Type | Wall Packs |
| Product Body Finish | Dark Brown |
| Market Segment | Outdoor |
| Finish | Dark Brown |
| Features | Dusk-to-Dawn Sensor |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | No |
|---|---|
| Linkable | No |
| Product Length (mm) | 241.7 |
| Product Depth (mm) | 76 |
| Product Width (mm) | 150 |
| Product Weight (g) | 1170 |
| Optic | Polycarbonate diffuser |
| Material | ADC12 Aluminium |
| Construction | Aluminium heat-sink, PC injection moulded driver case |
| Bulb or Luminaire Shape | Rectangle |
| Luminaire Fixing | Wall |
| Mounting Type | Rear Cable Entry |
| Placement / Application | Outdoor |
Light Data
| Energy Efficiency Label (Image) | ILWPA001_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 3150 |
| Luminous efficacy (lm/W) | 105 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 115 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Lifetime (hours) | 50000 |
| Switching Cycles | 100000 |
| Useful Lumens (lm) | 3150 |
Electrical Data
| Power (W) | 30 |
|---|---|
| Power Consumption (W) | 30 |
| Power Factor | 0.95 |
| Voltage Range (v) | 100-277 |
| Input Voltage (V) | 220-240 |
| Dimming | Non-Dimmable |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | 0 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 1370 |
|---|---|
| Package Length (mm) | 255 |
| Package Width (mm) | 160 |
| Package Depth (mm) | 100 |
