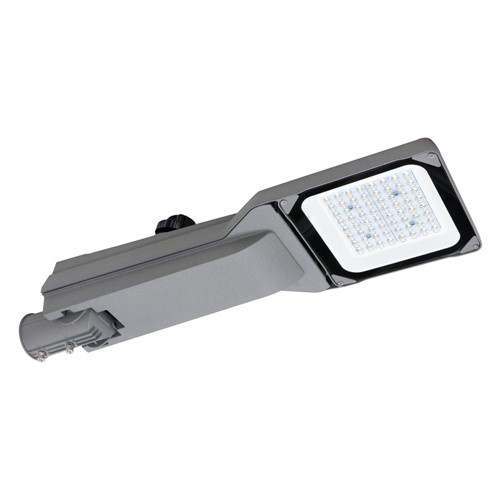

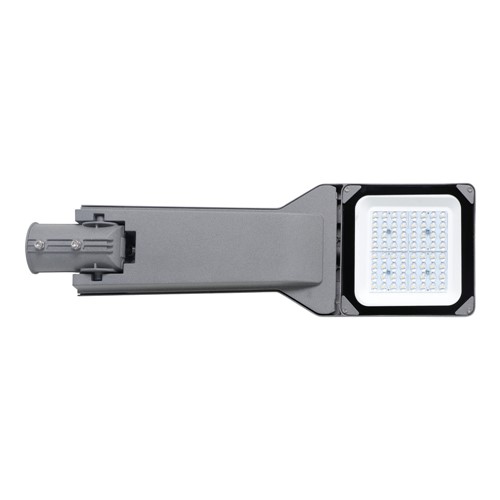

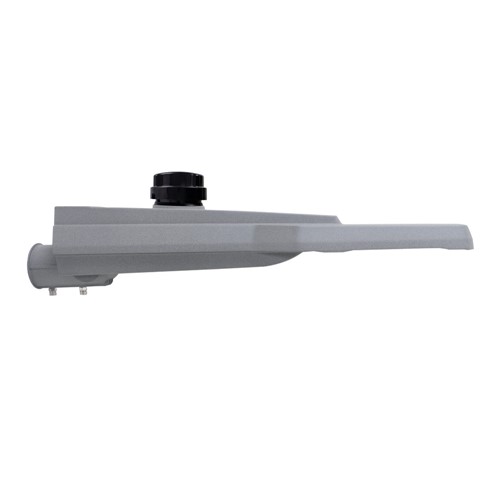

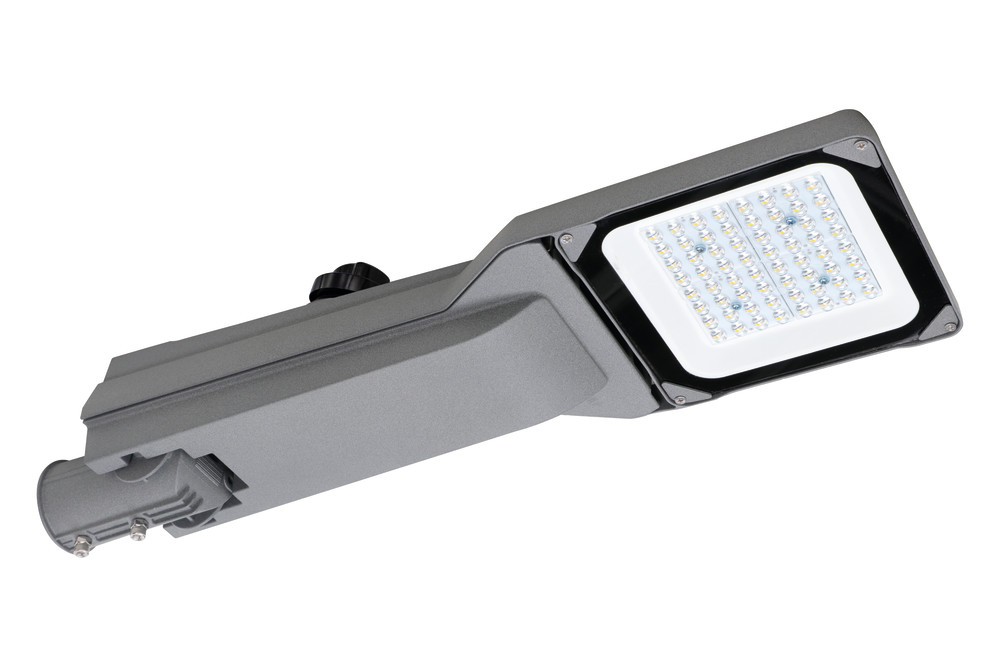

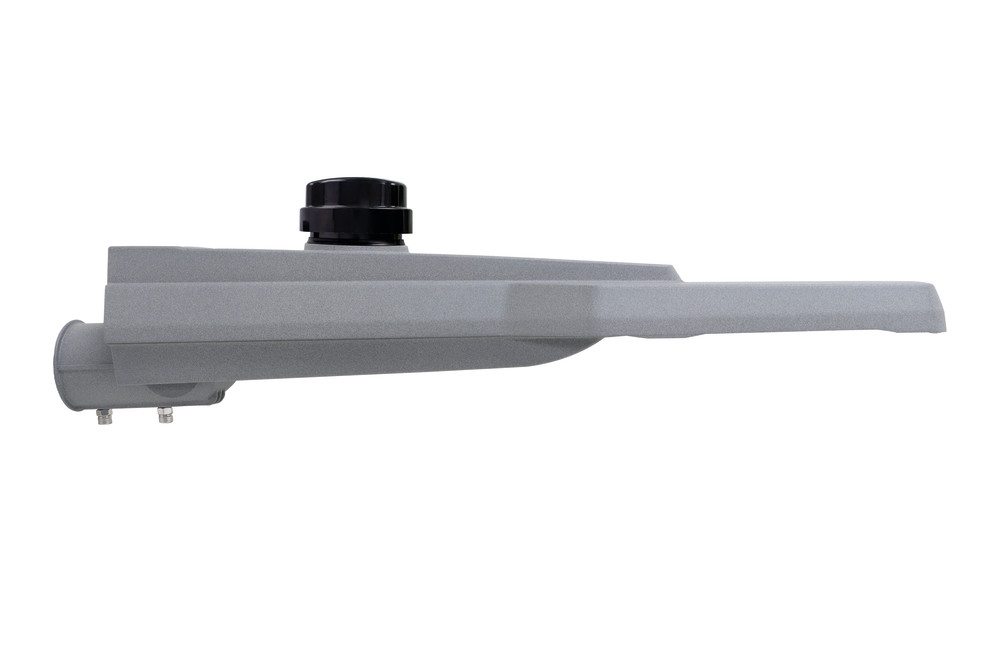

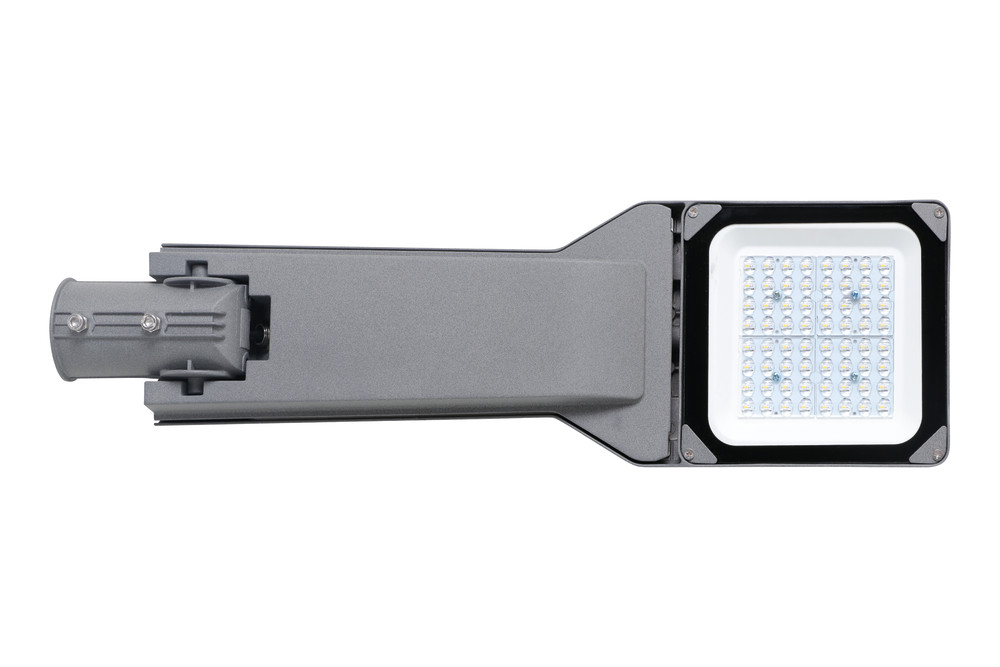

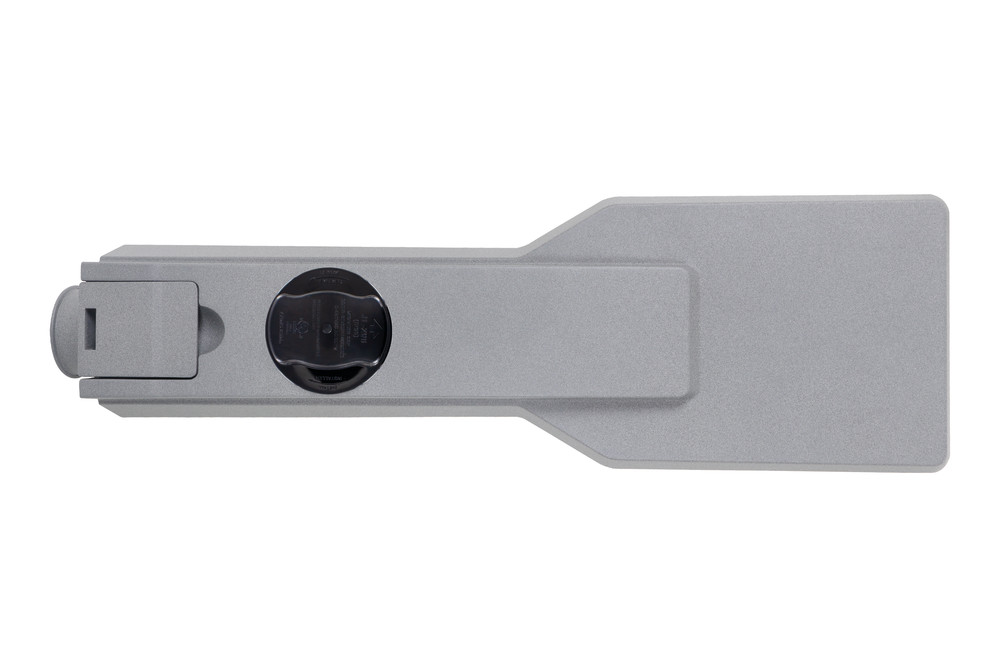

MATRIX MINI STREET LIGHT 4650LM 30W 4000K OPTIC-T2M IP66 34 TO 48MM DIA SPIGOT CLAMP NFC IK09 NEMA3 WITH CAP & AUTO-DISCONNECT RAL7037
Part Number:
ILSLB001
- Product Feature 1:
- Compact LED design
- Product Feature 2:
- Tough aluminium body tempered glass and marine grade fixings
- Product Feature 3:
- Ultra efficient LED lantern for street lighting and car parks
- Product Feature 4:
- Field programmable driver using NFC
- Product Feature 5:

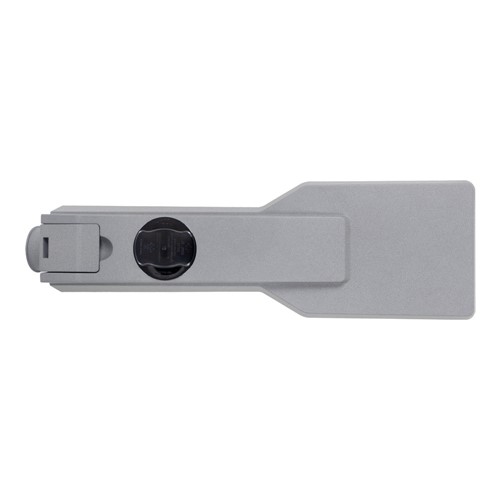

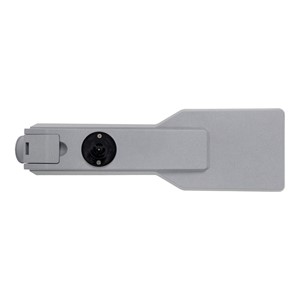

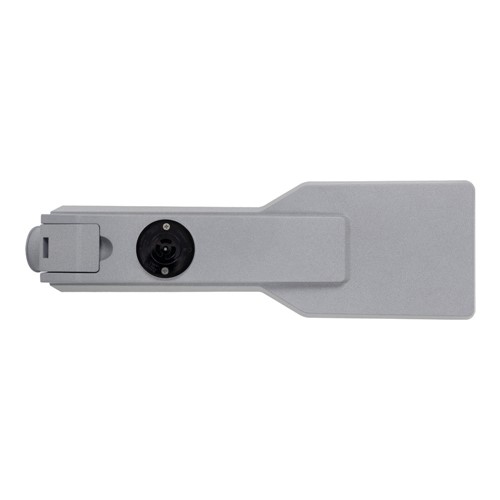

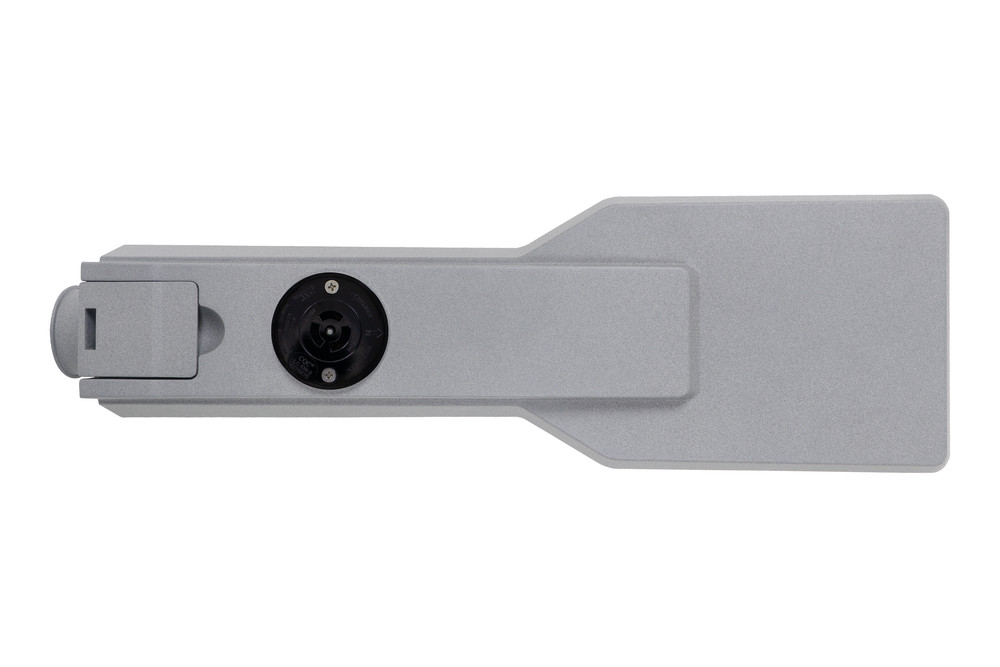

- 3 pin NEMA Socket
- Product Feature 6:
- Thermally Optimised
- Product Feature 7:
- Contact us for columns and accessories
- Product Feature 8:
- Settable tilt angles From 10 to +15
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Details
| Quick Order Code | 400961 |
|---|---|
| Barcode | 5055788266051 |
| Category | Luminaires |
| Range Name | Matrix |
| Product Body Finish | Grey |
| Market Segment | Commercial and Outdoor |
| Warranty (Years) | 5 |
Physical Data
| Product Length (mm) | 517 |
|---|---|
| Product Depth (mm) | 110 |
| Product Width (mm) | 166 |
| Product Weight (g) | 3200 |
| Material | Aluminium, Tempered Glass |
| Construction | Aluminium die-cast heat-sink, Tempered Glass protective front cover, Integrated driver |
| Bulb or Luminaire Shape | Rectangle |
| Luminaire Fixing | Bracket for Wall & Pole Mounting |
| Placement / Application | Outdoor |
Light Data
| Beam Type | Asymmetrical |
|---|---|
| Luminous Flux in Lumens (lm) | 4650 |
| Luminous efficacy (lm/W) | 155 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | T2-M |
| Colour Rendering Index (CRI) | 70 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 100000 |
| Sensor / Overide | No |
| Switching Cycles | 100000 |
Electrical Data
| Power Consumption (W) | 30 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Dimming | 0-10V/PMW/Resistor |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK09 |
| IP Rating (Back/Recessed side) | IP66 |
| IP Rating (Ingress Protection) | IP66 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 55 |
Packaging
| Package Weight (g) | 4000 |
|---|---|
| Package Length (mm) | 175 |
| Package Width (mm) | 660 |
| Package Depth (mm) | 235 |
