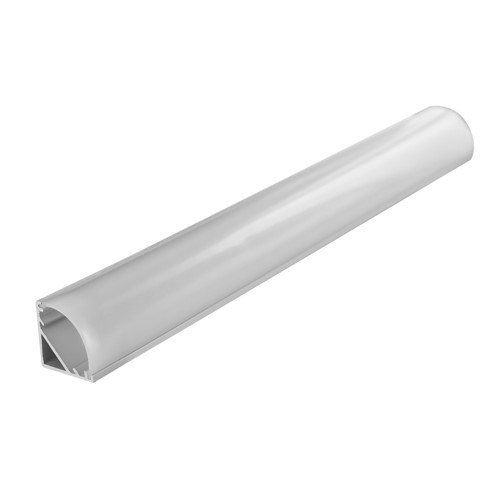

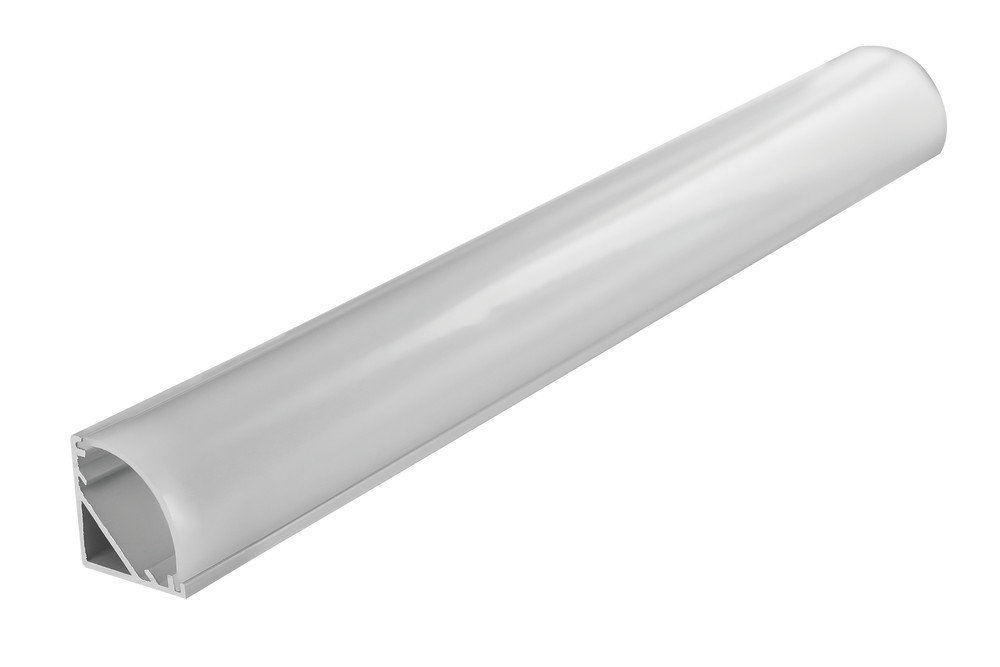

PROFILE ALUMINIUM CORNER SURFACE MOUNT 1M FROSTED DIFFUSER 20X20MM INCLUDE 2 END CAPS AND 2 MOUNTING BRACKETS
Part Number:
ILPFC046
Integral LED Surface Mounted Aluminium Profiles (also known as Extrusions) are engineered from high quality components and designed for any Integral IP33 and IP65 Flexible LED Strip range from 8mm to 12mm. They are suitable for a wide range of applications such as heavy furniture, glass cabinets and accent lighting in ceilings.
- Product Feature 1:
- Frosted Diffuser
- Product Feature 2:
- Suitable for up to 14mm width Integral IP33/IP65/IP67 Strips
- Product Feature 3:

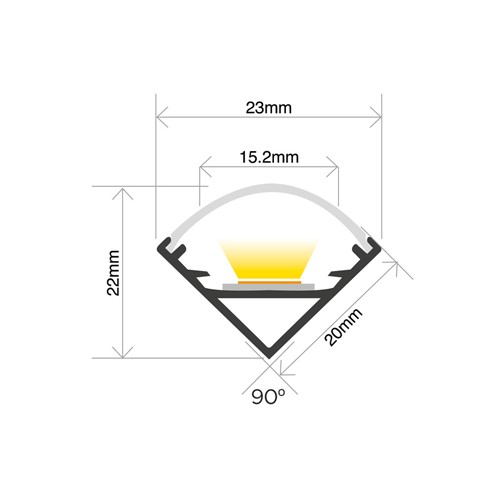

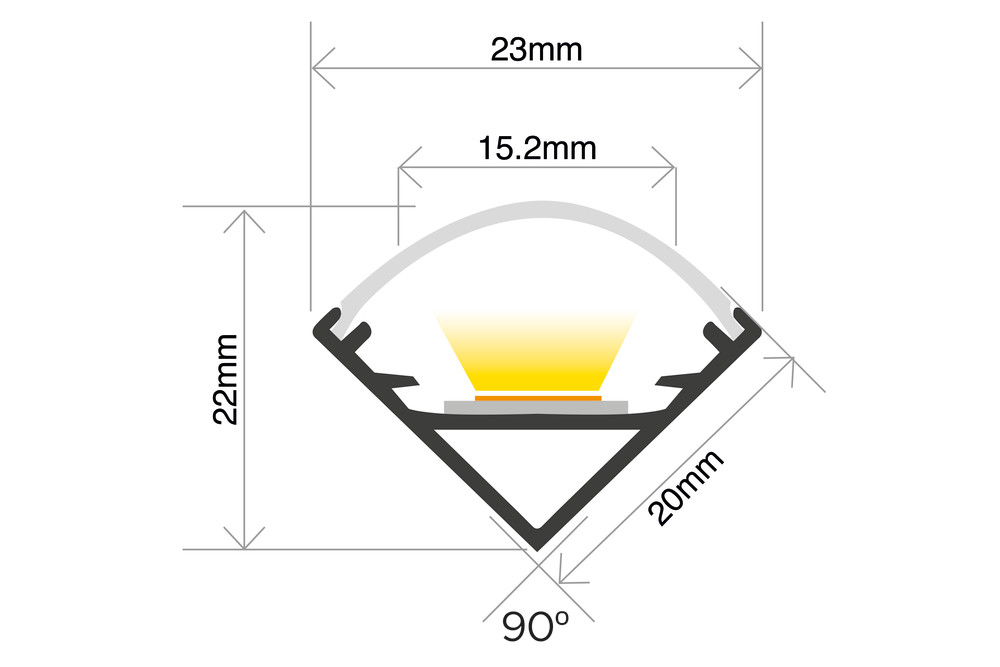

- 1000(L) x (90 degree) 20x20mm
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 543124 |
|---|---|
| Barcode | 5055788233695 |
| Category | Strips |
| Range Name | Corner |
| Product Type | Aluminium Profiles |
| Warranty (Years) | 1 |
Physical Data
| Product Length (mm) | 1000 |
|---|---|
| Product Depth (mm) | 20 |
| Product Width (mm) | 20 |
| Product Weight (g) | 199 |
| Material | Aluminium, PC |
| Mounting Type | Corner |
| Length (m) | 1 |
Light Data
Electrical Data
Environmental
| Max Strip IP Rating | IP67 |
|---|---|
| Profile IP Rating | IP20 |
Packaging
| Package Weight (g) | 227 |
|---|---|
| Package Length (mm) | 1050 |
| Package Width (mm) | 22 |
| Package Depth (mm) | 22 |
