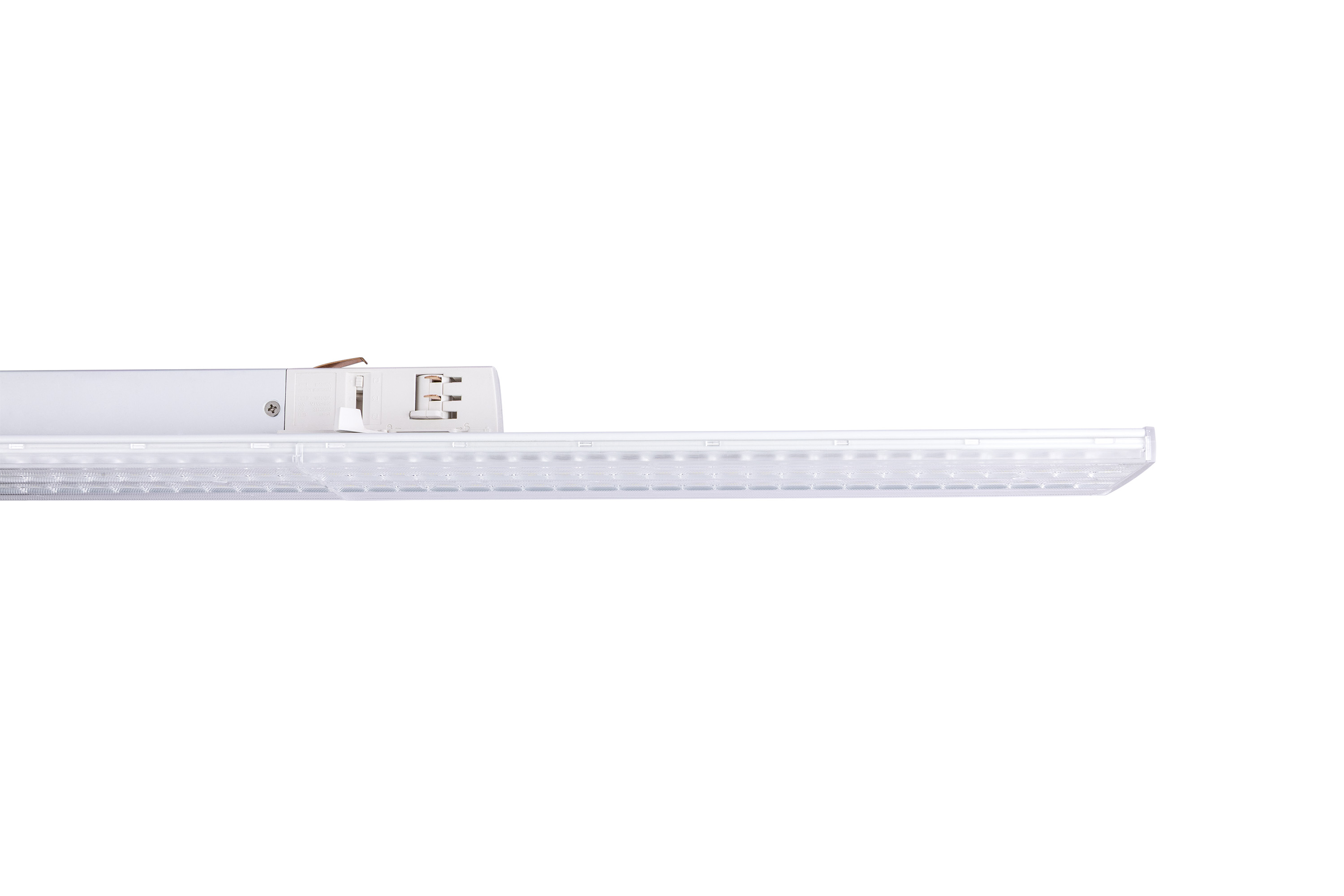

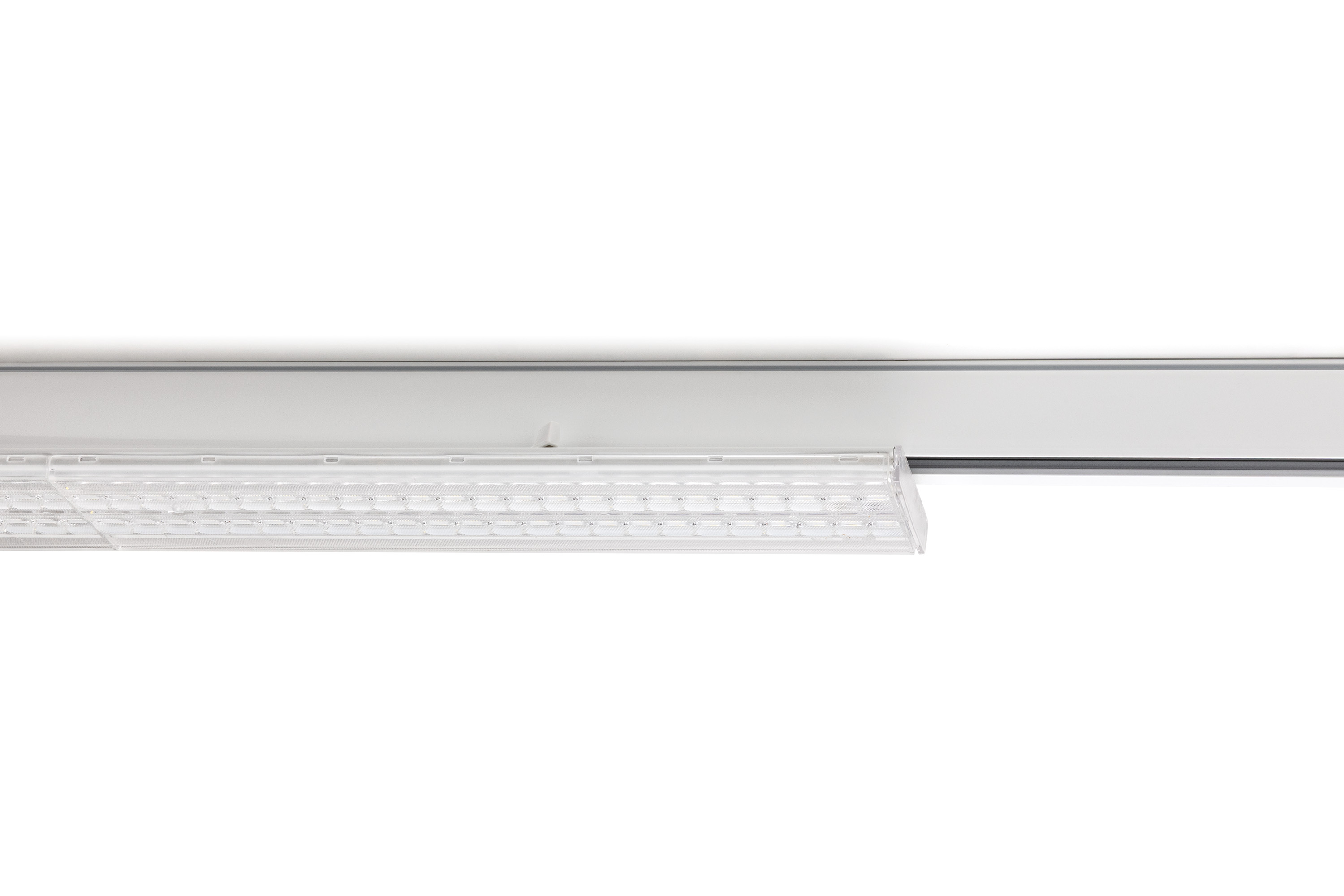

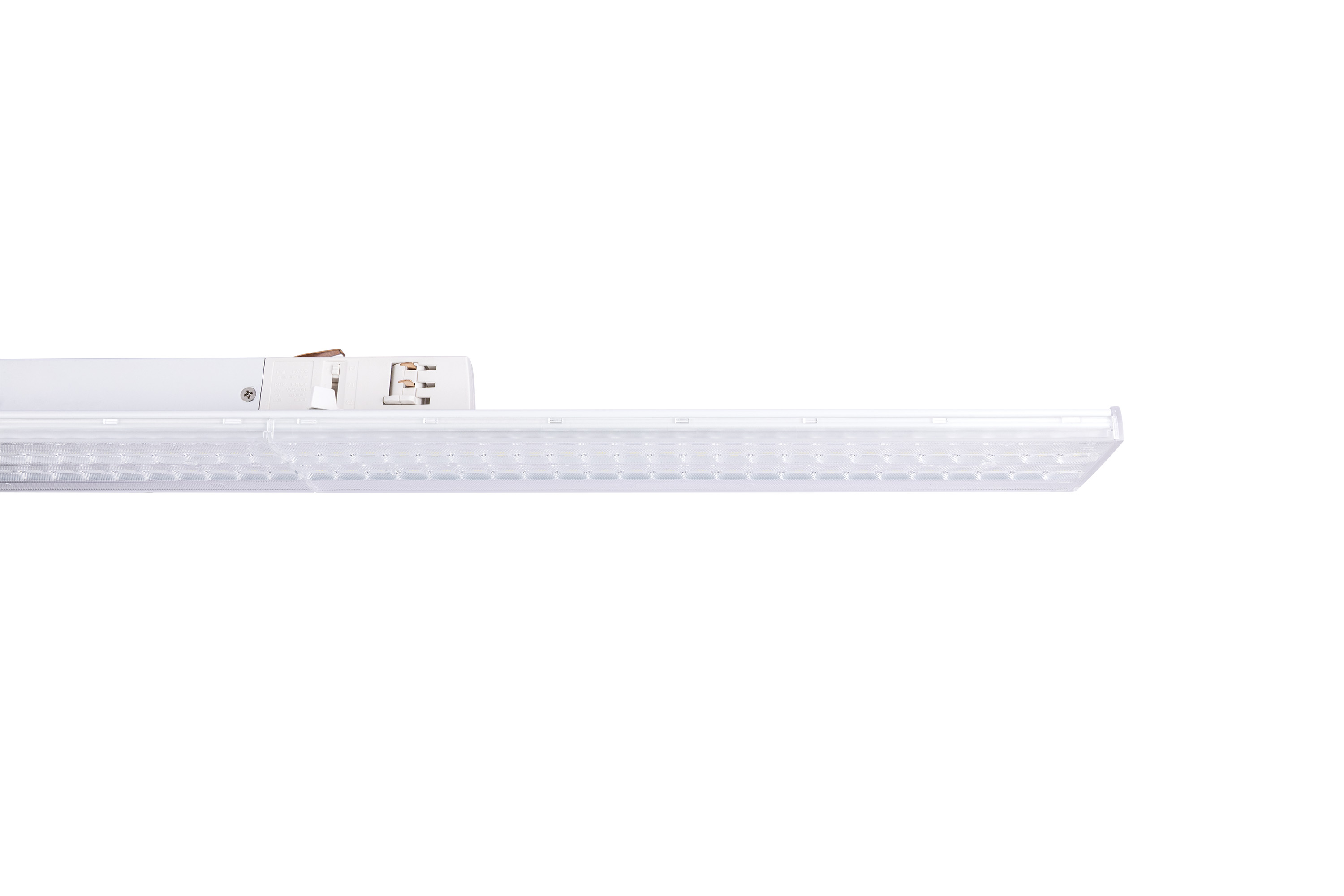

TRACKPRO LINEAR FIXED 1500MM DOUBLE ASYMMETRICAL 30+30° BEAM 180LM/W 45/50/55/60W 8100/9000/9900/10800LM 4000K 80CRI 3SDCM WATTAGE SWITCHABLE 3-CIRCUIT NON-DIM WHITE
Part Number:
ILTLF60A003W
- Product Feature 1:
- 1500mm linear track light for 230V 3-circuit track
- Product Feature 2:
- Double asymmetric 30° + 30° beam – perfect for aisle lighting
- Product Feature 3:
- 4 Wattage Switchable: 45W(8100lm) / 50W(9000lm) / 55W(9900lm) / 60W(10800lm) - efficacy up to 180lm/W
- Product Feature 4:
- 4000K & 3SDCM colour consistency
- Product Feature 5:
- For retail and commercial applications
- Availability:
-
49
Details
| Barcode | 5056884604884 |
|---|---|
| Quick Order Code | 755594 |
| Category | Luminaires |
| Range Name | TrackPro |
| Product Body Finish | White |
| Market Segment | Indoor |
| Warranty (Years) | 5 |
Physical Data
| Product Length (mm) | 1493 |
|---|---|
| Product Depth (mm) | 41.7 |
| Product Width (mm) | 61.4 |
| Product Weight (g) | 1350 |
| Material | Aluminium |
| Luminaire Fixing | Track |
| Placement / Application | Indoor |
| Control Gear | Non-replaceable |
Light Data
| Luminous Flux in Lumens (lm) | 8100 to 10800 |
|---|---|
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | Double assymetric |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Integrated Light Source | Yes |
| Lifetime (hours) | 50000 |
| Light Source | Non-replaceable |
Electrical Data
| Power (W) | 45 / 50 / 55 / 60 (Power Switchable) |
|---|---|
| Power Consumption (W) | 45 / 50 / 55 / 60 (Power Switchable) |
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Dimming | Non-Dimmable |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| IP Rating (Ingress Protection) | IP20 |
Packaging
| Barcode | 5056884604884 |
|---|---|
| Single box qty | 1 |
| Package Weight (g) | 1910 |
| Package Length (mm) | 1530 |
| Package Width (mm) | 88 |
| Package Depth (mm) | 103 |
| Outer Carton Barcode | 05056884604983 |
| Qty per Outer Carton | 8 |
| Outer Carton Length (mm) | 1550 |
| Outer Carton Width (mm) | 380 |
| Outer Carton Depth (mm) | 230 |
Safety Guide
ILTLF60A003W-45W-4000K
