2M WHITE STANDARD STUCCHI 3 CIRCUIT 230V ONETRACK WITH DALI LINE
Part Number:
ILTR001
THIS ITEM IS NOW UPGRADED OR DISCONTINUED. CONTACT US TO FIND A REPLACEMENT PRODUCT.

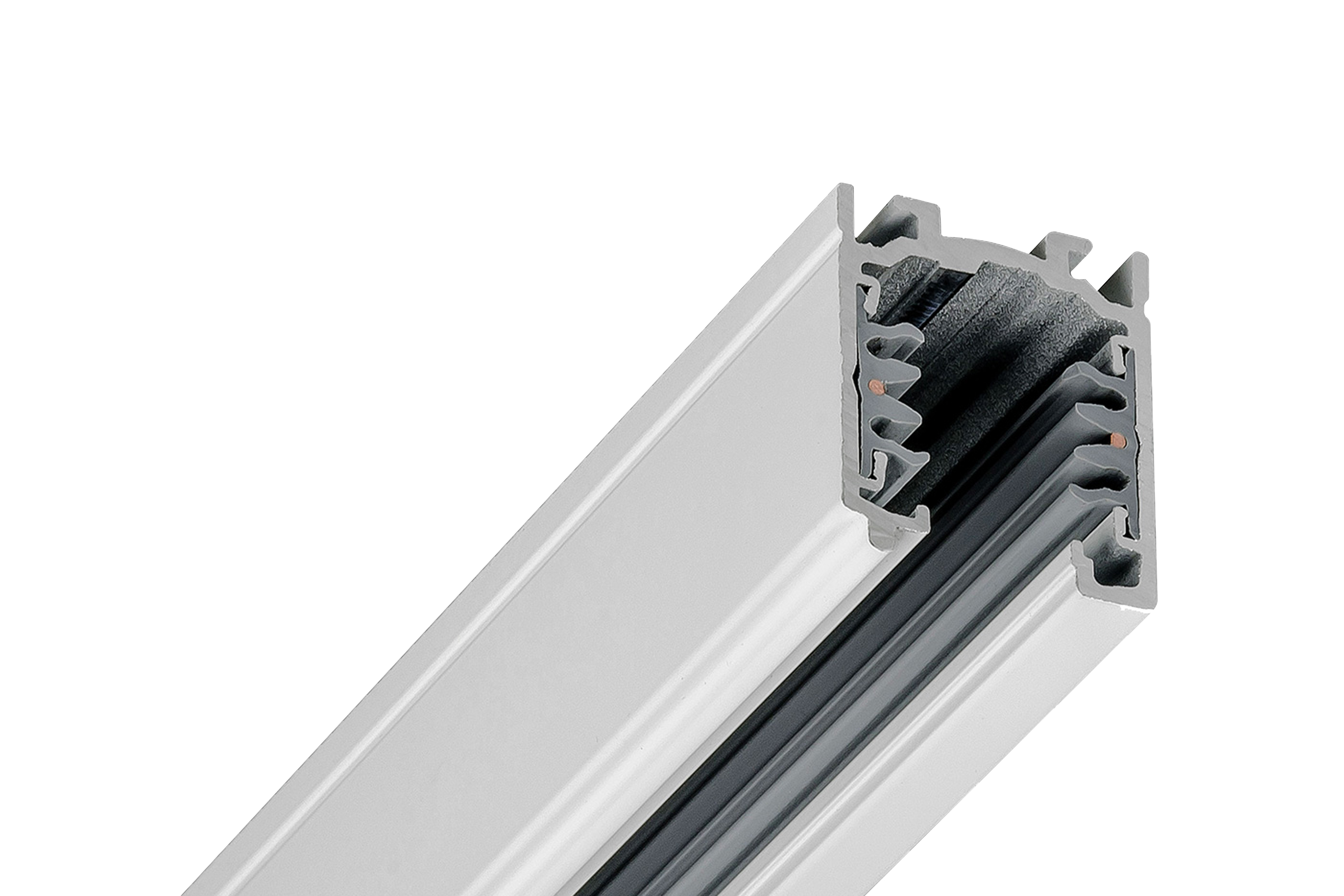

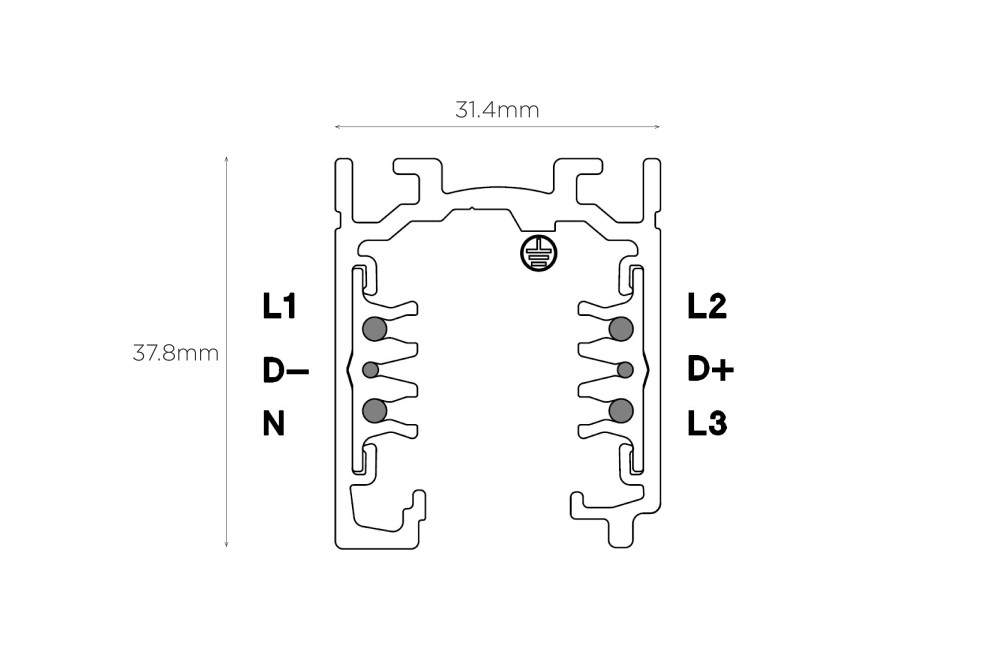

Stucchi Onetrack is a premium quality Eurostandard Plus® 6 connector track that allows compatible fittings to be controlled independently on a maximum of 3 circuits. The copper conductors comprise three live (giving 3 circuits), one neutral and two data lines that can integrate DALI, for example. Earth connection is made inside the extruded aluminium body of the track.
One track that does it all.
- Product Feature 1:
- White finish
- Product Feature 2:
- Three circuit and DALI compatible
- Product Feature 3:
- Based on EUROSTANDARD PLUS® platform
- Product Feature 4:
- Suitable for use with Global Trac® adaptors
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788271475 |
|---|---|
| Quick Order Code | 818867 |
| Category | Track |
| Range Name | Onetrack |
| Market Segment | Commercial indoor, Residential indoor |
| Finish | White |
| Features | 3 Circuit |
| Warranty (Years) | 3 |
Physical Data
| Product Length (mm) | 2000 |
|---|---|
| Product Depth (mm) | 37.8 |
| Product Width (mm) | 31.4 |
| Product Weight (g) | 2000 |
| Mounting Type | Surface or Suspended |
Light Data
Electrical Data
| Input Voltage (V) | 240 |
|---|---|
| Output Current (mA) | 64000 |
| Output Voltage (V) | 230 |
| Electric Current | AC |
Environmental
Packaging
| Barcode | 5055788271475 |
|---|---|
| Package Weight (g) | 2006 |
| Package Length (mm) | 2006 |
| Package Width (mm) | 50 |
| Package Depth (mm) | 50 |
| Qty per euro pallet | 264 |
