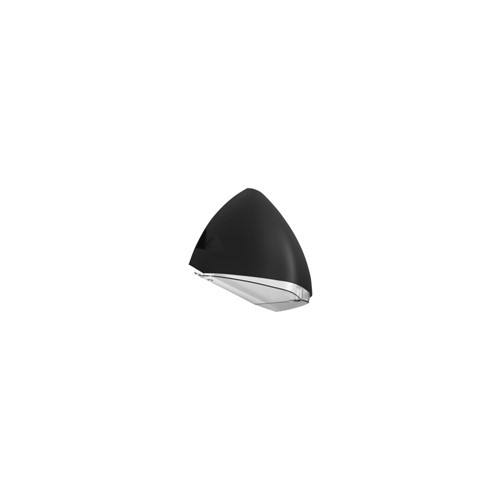

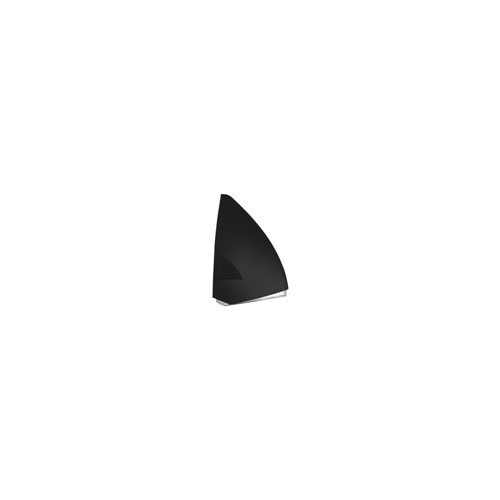

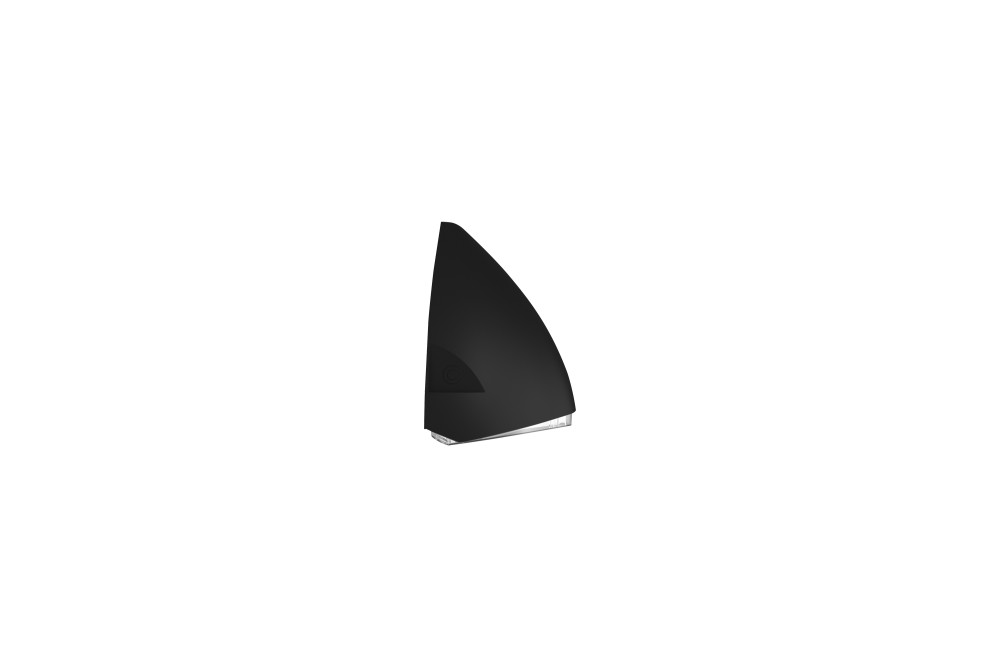

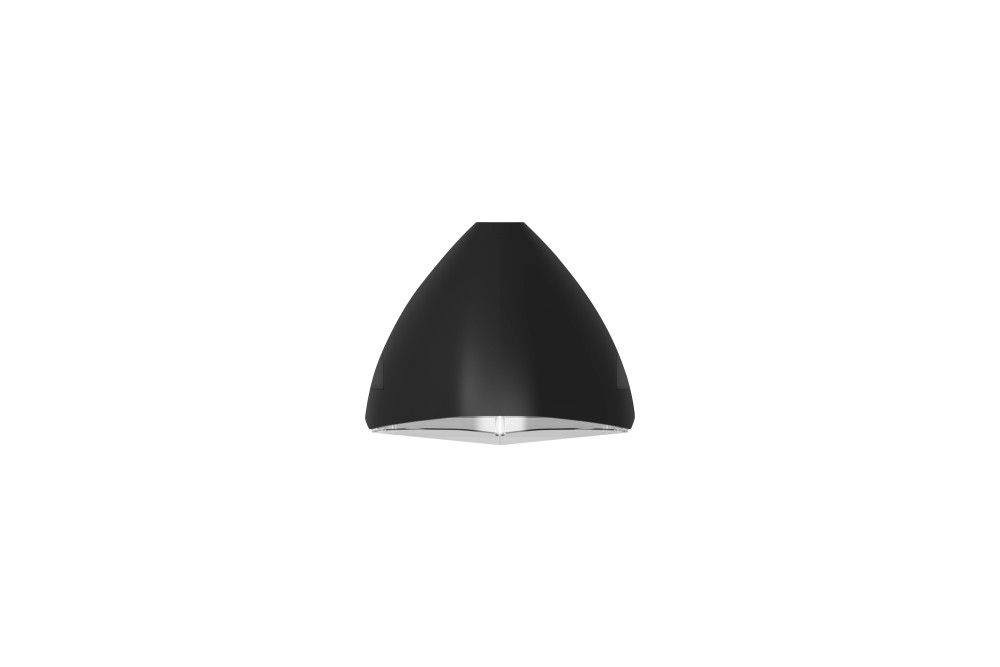

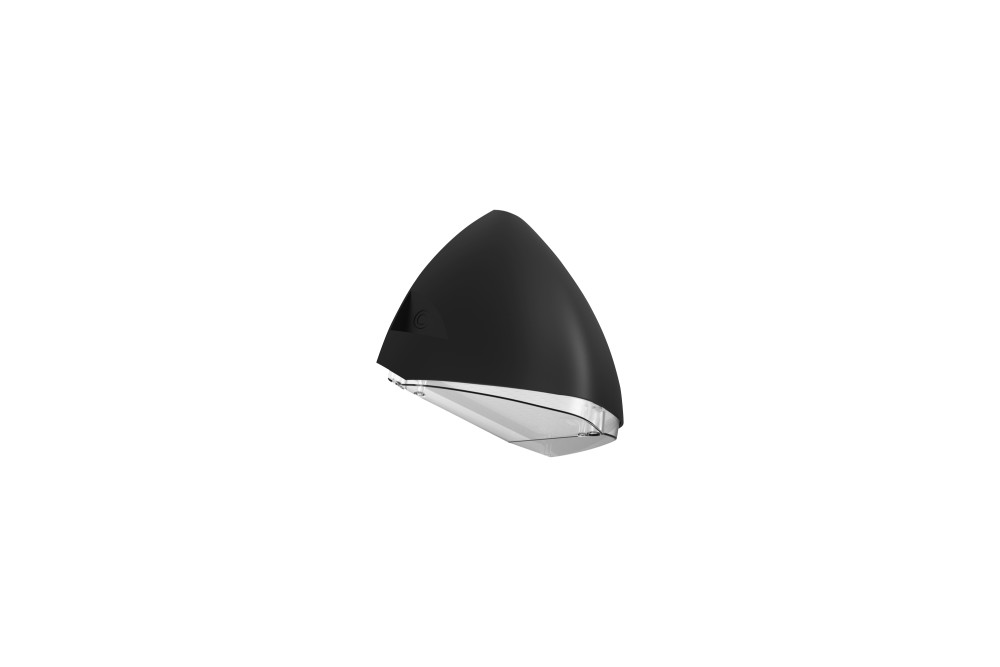

OUTDOOR NANO COBRA WALL PACK 5W 635LM CCT SELECTABLE 3000K/4000K 127LM/W BLACK RAL9005
Part Number:
ILWPE003
The Integral LED Cobra Nano Black Wall Pack offers a sophisticated modern look with superior practicality. IP65 weatherproofing and IK10 impact-resistance make it perfect for outdoor applications, whilst the die-cast aluminium body provides a premium finish.
Designed for quick and easy installation, this rugged luminaire is ideal for perimeter lighting as well as pedestrian and vehicle access areas in residential, commercial and industrial environments.
Providing 120lm/W, this small yet efficient luminaire offers 3000K/4000K CCT selection.
- Product Feature 1:
- Stylish and contemporary design
- Product Feature 3:
- Hard-wearing and weatherproof
- Product Feature 4:
- Cast-aluminium body
- Product Feature 5:
- 130lm/W
- Product Feature 8:
- IK10
- Availability:
-
7
Call us on 0208 451 8700 to check the next availability
Details
| Barcode | 5055788277781 |
|---|---|
| Category | Luminaires |
| Range Name | Cobra |
| Product Type | Outdoor |
| Product Body Finish | Black |
| Market Segment | Outdoor |
| Finish | Black |
| Features | Hard-wearing and weatherproof |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | No |
|---|---|
| Product Length (mm) | 241.7 |
| Product Depth (mm) | 76 |
| Product Width (mm) | 150 |
| Product Weight (g) | 1170 |
| Optic | Polycarbonate diffuser |
| Material | ADC12 Aluminium |
| Construction | Aluminium |
| Luminaire Fixing | Wall |
| Mounting Type | Rear Cable Entry |
| Placement / Application | Outdoor |
Light Data
| Luminous Flux in Lumens (lm) | 635 |
|---|---|
| Luminous efficacy (lm/W) | 105 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 115 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 100000 |
Electrical Data
| Power Factor | 0.95 |
|---|---|
| Voltage Range (v) | 100-277 |
| Input Voltage (V) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 1370 |
|---|---|
| Package Length (mm) | 255 |
| Package Width (mm) | 160 |
| Package Depth (mm) | 100 |
Safety Guide
ILWPE003-3000K
