HIGH PERFORMANCE+
THE MOST EFFICIENT PANEL ON THE MARKET

Slash Your Energy Bill and Reduce Carbon Emissions by 43%



Our High Performance+ panel range is at the top of the game when it comes to efficacy - up to 175lm/W.

How much can you save with High Performance+ Panels? Assuming you need 3500 lumens, you'll only need 20W with our highly efficient panel vs 35W with a standard LED panel. That's nearly £20 savings on energy cost per panel every year!*

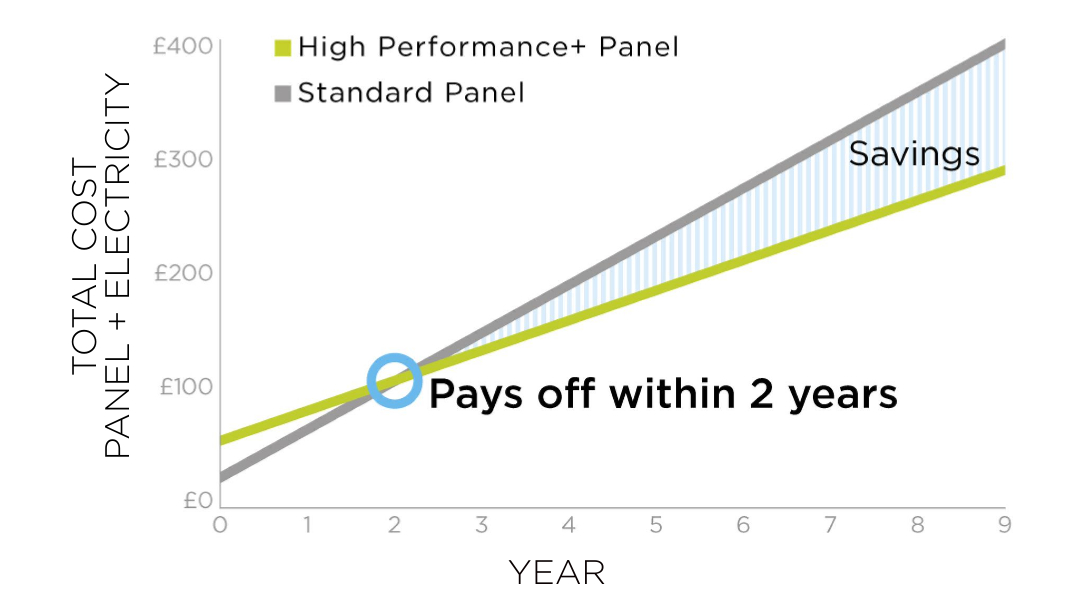

Cost comparison between Integral LED High Performance+ panel and a standard LED panel:

*Based on a standard panel cost of £24 and a High Performance+ panel cost of £58, electricity cost of £0.22 per kWh as listed on comparethemarket.com in September 2021 and a daily usage of 16 hours per day.



High quality panels will last for years and you need to consider the overall cost as well as the impact on the environment to select the right option. By choosing High Performance+ panels, your investment will quickly break even, and the energy saved will help reduce carbon emissions.

Our High Performance+ panels come with a 5-year warranty and are guaranteed no-yellowing to give you peace of mind.





Adjustable Wattage - Set the Brightness to Match Your Needs

Easily select from 16 different wattages and a lumen range between 1600-5600lms. This means one panel can offer a lighting solution for varied environments and room/area functions where different tasks, ceiling heights or lux levels must be considered.

Emergency Ready

Just add the Emergency Conversion Kit when installing it and your panel will provide emergency lighting for 3 hours. Part Number: ILEMPK074.


UGR<19 Version Available for Optimal Comfort

The High Performance+ Variable Wattage panel with UGR<19 is also available. It's been lab tested to ensure it’s not only highly efficient at 155 lm/W, but also has low glare output. This guarantees a comfortable light which is ideal in places like hospitals, dental practices, schools, universities, shops and offices.









175 lm/W Panels

SKU Dimension Lumens/Watt IP Rating Lumens (max) Diffuser View
ILP6060B041 600x600 175 lm/W IP20 5600 lm TP(a)
ILP6060B042 600x600 175 lm/W IP20 5600 lm TP(b)

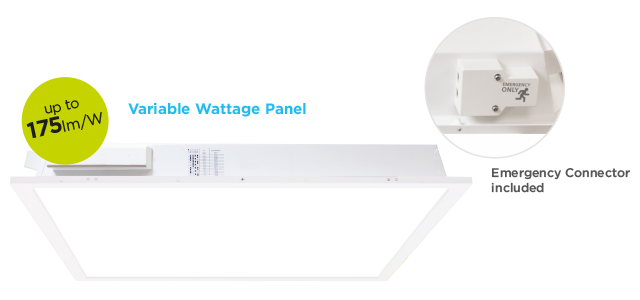

175 lm/W High Performance+ Back-lit Variable Wattage Panel

A significant amount of less energy is used with 175 lm/W efficiency – 75% more efficient than standard LED panels (100 lm/W). It’s better than buying a cheap panel and paying a lot more for electricity over the next few years.

  • Highly efficient - 175 lm/W
  • Variable wattage gives flexibility with 16 different light outputs (easily selected by switches on the side of the panel)
  • Back-lit with a high quality diffusers (TP(a) or TP(b)) for a uniform light and building regulation conformity
  • Easy-add on Emergency kit also available
  • 5 Year Warranty

Variable Wattage options

Watts Lumens
32 5600
30.5 5300
29 5000
27.5 4700
26 4600
24.5 4600
26 4600
24.5 4250
23 4050
21.5 3700
20 3500
18.5 3250
17 3000
15.5 2650
14 2500
12.5 2150
11 1950
9.5 1600

155 lm/W (UGR<19) Panel

SKU Dimension Lumens/Watt IP Rating Lumens (max) Diffuser View
ILP6060B043 600x600 155 lm/W IP20 4960 lm TP(a)

155 lm/W (UGR<19) High Performance+ Back-lit Variable Wattage Panel

This panel gives the ultimate performance in terms of efficiency, variable light-output and low glare (UGR<19) an ideal solution for schools, hospitals and offices.

  • Highly efficient - 155 lm/W
  • Variable wattage gives flexibility with 16 different light outputs (easily selected by switches on the side of the panel)
  • UGR<19 for a low glare (up to 3570 lm)
  • Back-lit with a high quality diffuser TP(a) for a uniform light and building regulation conformity
  • Easy-add on Emergency kit also available
  • 5 Year Warranty

Variable Wattage options

Watts Lumens UGR<19
32 4960 -
30.5 4730 -
29 4500 -
27.5 4260 -
26 4030 -
24.5 3800 -
23 3570 UGR<19
21.5 3330 UGR<19
20 3100 UGR<19
18.5 2870 UGR<19
17 2635 UGR<19
15.5 2400 UGR<19
14 2170 UGR<19
12.5 1940 UGR<19
11 1700 UGR<19
9.5 1470 UGR<19


What is UGR<19?

Unified Glare ratio (UGR) is a function of the installation environment and the fitting combined. To correctly assess the level of glare a professional lighting design must be carried out. Please contact Integral for our complimentary design service. Integral LED panels can help you achieve your glare requirements. All of our products that are specified as UGR<19 are rated as less than 19 at 4H/8H for reflectance at 70/50/20 on both visual axis.*

*Based on the Unified Glare Rating table produced in Integral’s UK light laboratory.
