HYDRA PRO MULTI CONNECT 2FT IP66 IK08 9/12/15/18W 1260 TO 2520LM 4K/5K/6.5K 120 BEAM 140LM/W NON DIMM SIDE/REAR CONDUIT ENTRY BESA
Part Number:
ILBTD300

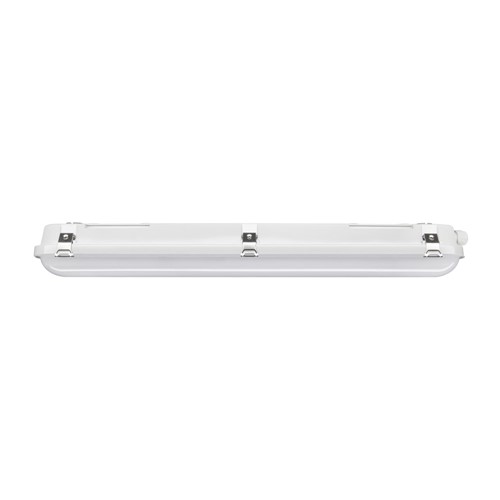

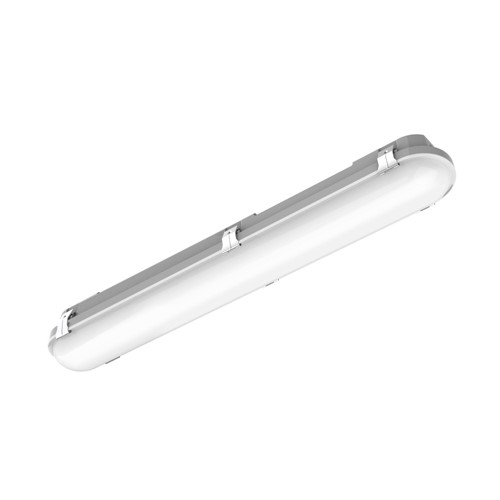

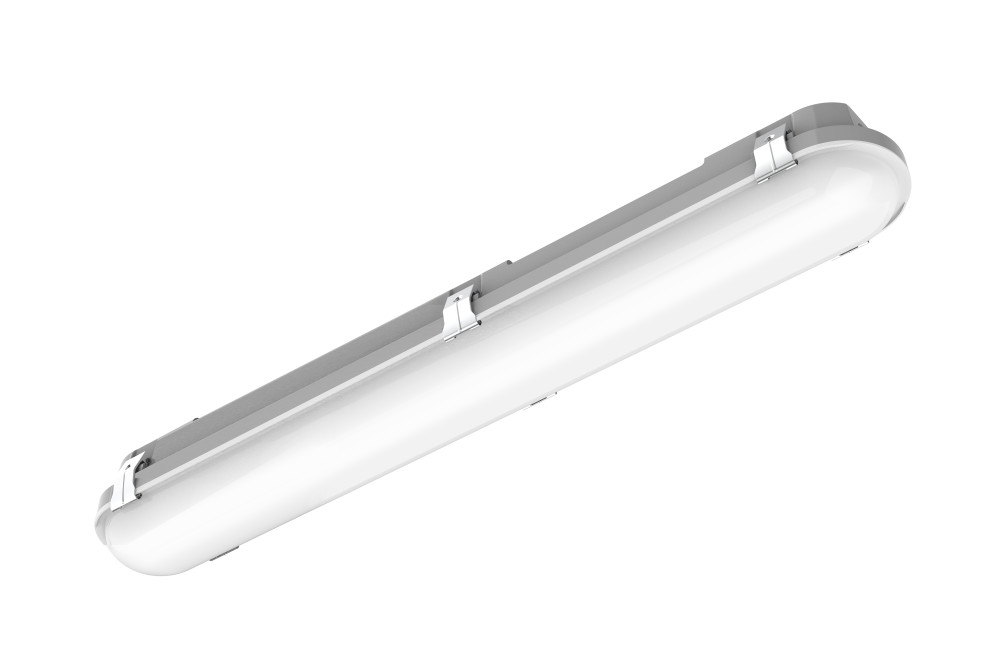

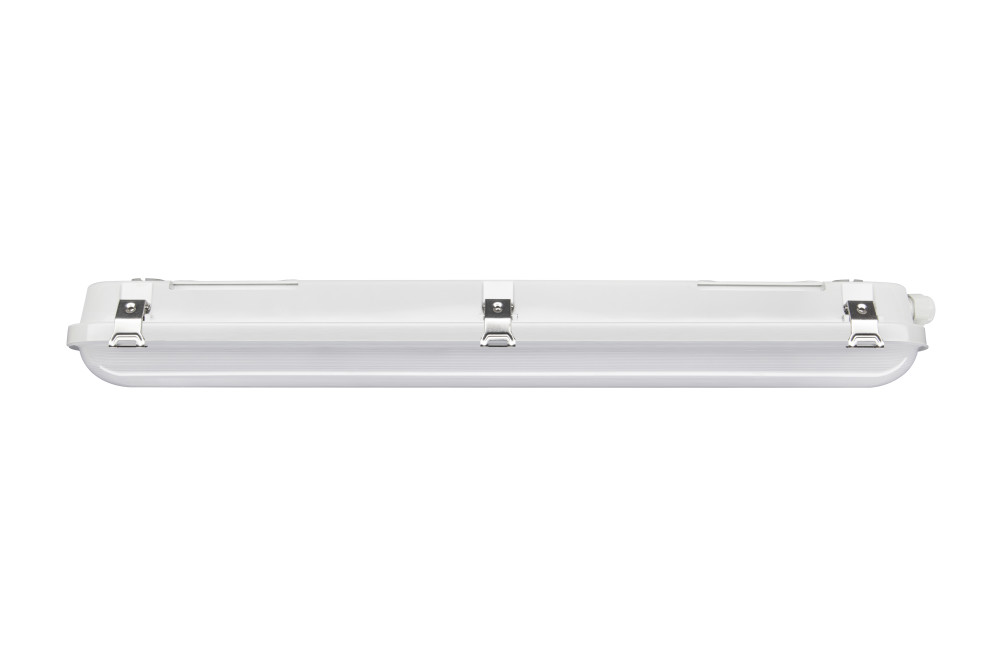

The Integral LED Hydra Multi Connect Pro 2ft Batten has been designed with flexibility and ease of installation in mind.
4000K, 5000K and 6500K CCT and power switchable as standard to match the needs of any application.

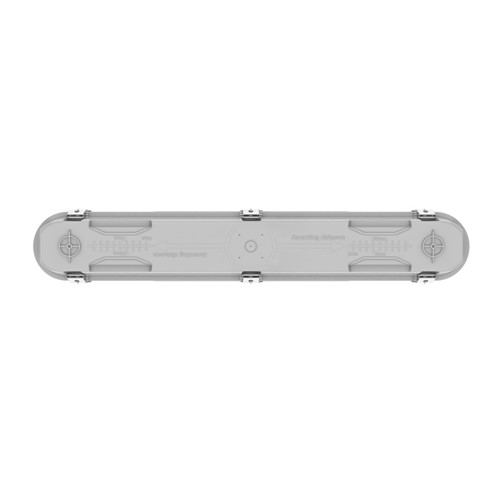

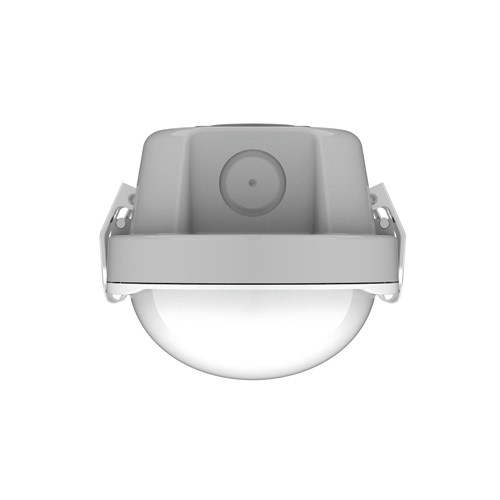

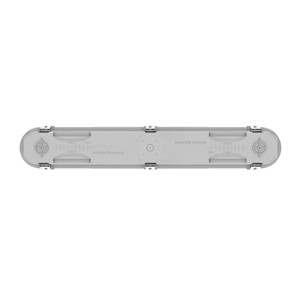

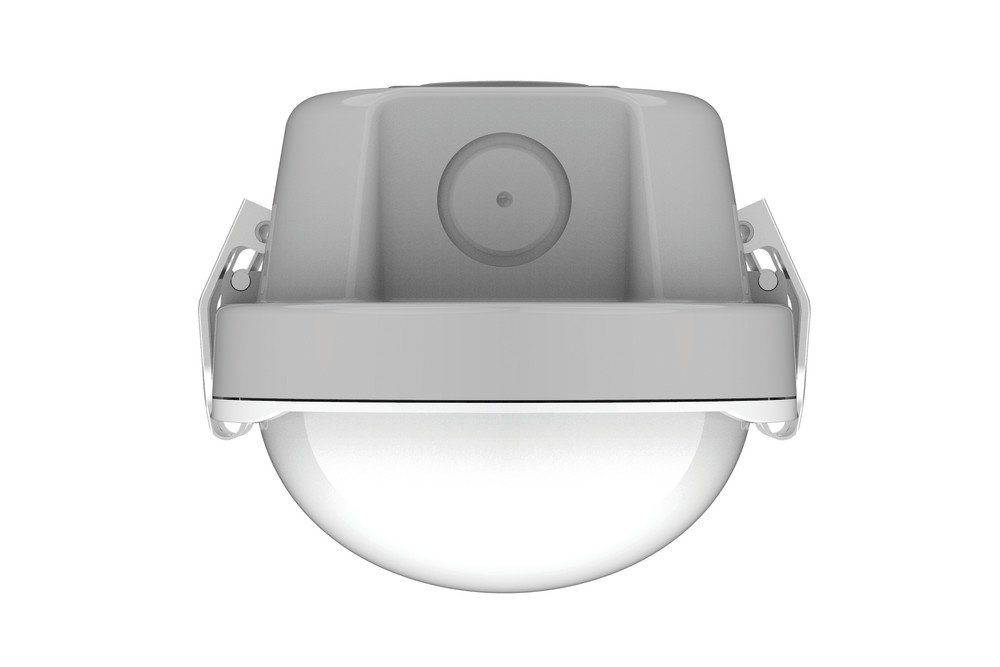

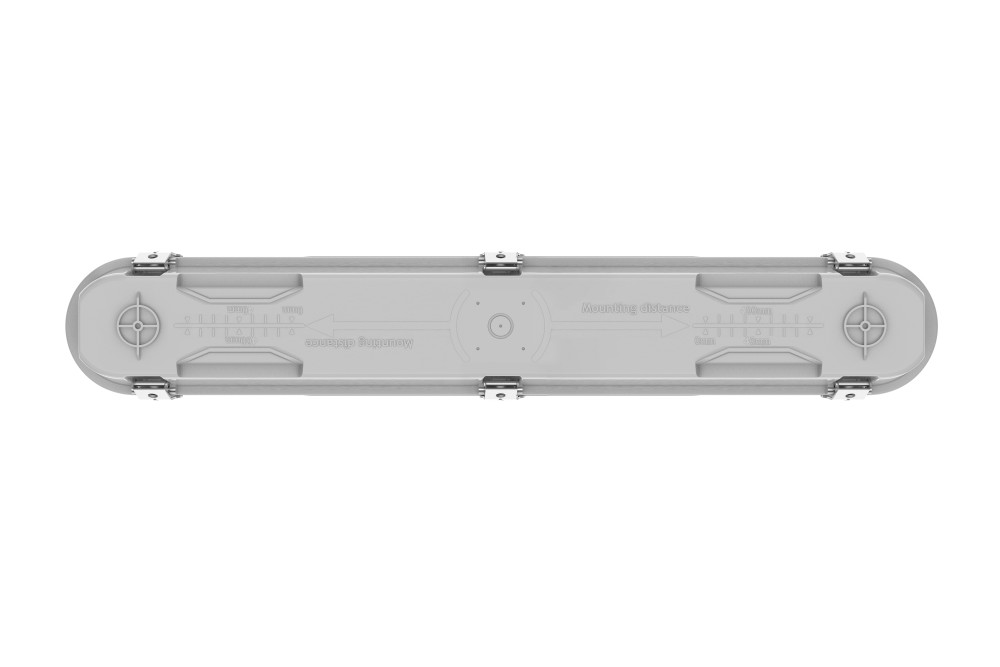

Designed for both interior and exterior use, the Hydra Pro is non-corrosive with a polycarbonate body that boasts robust IK08 and IP66 protection, ensuring durability in any environment. With BESA mounting and multiple conduit entry points on the sides, ends, and rear, installation is convenient and straight-forward.
Excellent 140lm/W efficacy ensures power saving over traditional fluorescent and many LED equivalents. Ideal for car parks, warehouses, storage facilities, food preparation facilities and other demanding industrial and agricultural environments.
- Product Feature 1:
- Power & CCT Switchable
- Product Feature 2:
- 50000hrs
- Product Feature 3:
- 140lm/W
- Product Feature 4:
- 5 year warranty
- Product Feature 5:
- IP66
- Product Feature 6:
- IK08
- Availability:
-
0
More stock due in on 22/11/2024
Suggested products
Details
| Quick Order Code | 728196 |
|---|---|
| Barcode | 5055788298243 |
| Category | Luminaires |
| Range Name | Hydra Pro |
| Type | Single / Twin |
| Product Type | Battens |
| Product Body Finish | Grey |
| Market Segment | Commercial indoor and outdoor, Industrial indoor and outdoor |
| Finish | Grey |
| Features | Power & CCT Switchable |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | No |
|---|---|
| Size (in ft) | 2ft |
| Linkable | Yes |
| Product Length (mm) | 670 |
| Product Depth (mm) | 82 |
| Product Width (mm) | 99 |
| Product Weight (g) | 830 |
| Optic | Polycarbonate diffuser |
| Material | Polycarbonate |
| Construction | Injection moulding |
| Bulb or Luminaire Shape | Linear |
| Luminaire Fixing | Ceiling mounted |
| Mounting Type | Rear Cable & Side conduit Entry |
| Placement / Application | Indoor, Commercial and Industrial |
Light Data
| Luminous Flux in Lumens (lm) | 1260 to 2520 |
|---|---|
| Luminous efficacy (lm/W) | 140 |
| Correlated Colour Temperature (CCT) (K) | 4000/5000/6500 |
| Colour Temperature | 4000/5000/6500 - Cool White/Daylight/Cool Daylight |
| Colour Temperature Name | Warm White / Cool White / Cool Daylight |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 50000 |
Electrical Data
| Power Consumption (W) | 9/12/15/18 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Input Voltage (V) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08 |
| IP Rating (Ingress Protection) | IP66 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
Packaging
| Package Weight (g) | 950 |
|---|---|
| Package Length (mm) | 675 |
| Package Width (mm) | 100 |
| Package Depth (mm) | 85 |
Safety Guide
ILBTD300-12W-4000K
