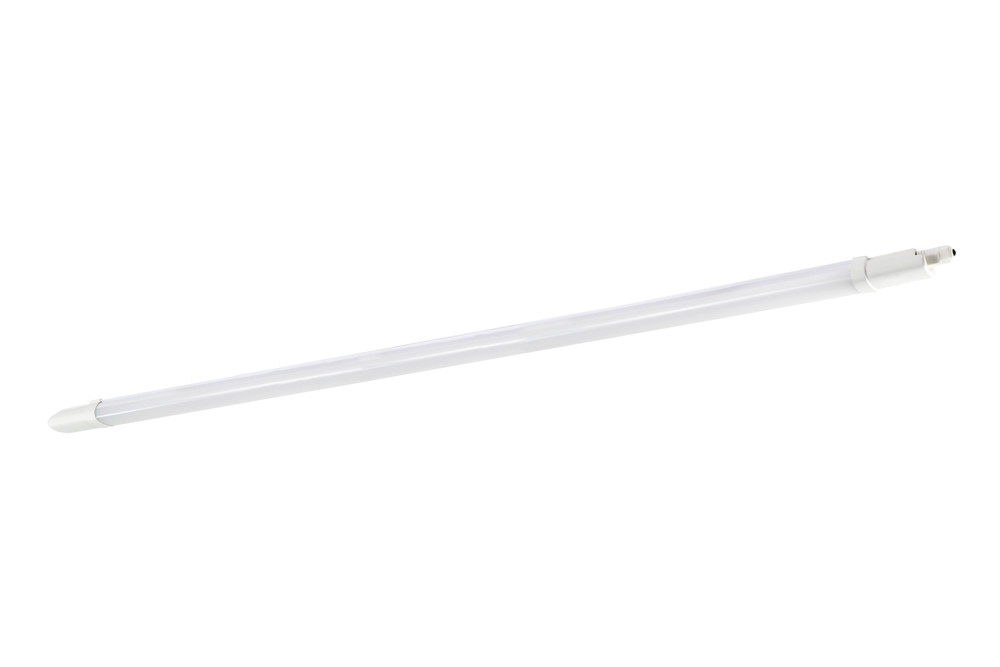

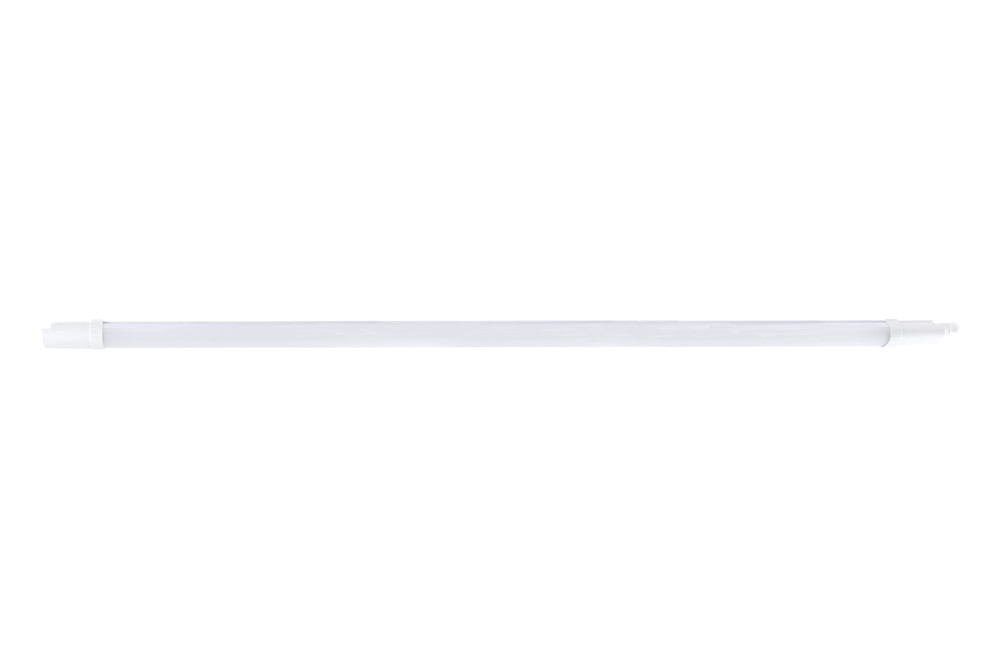

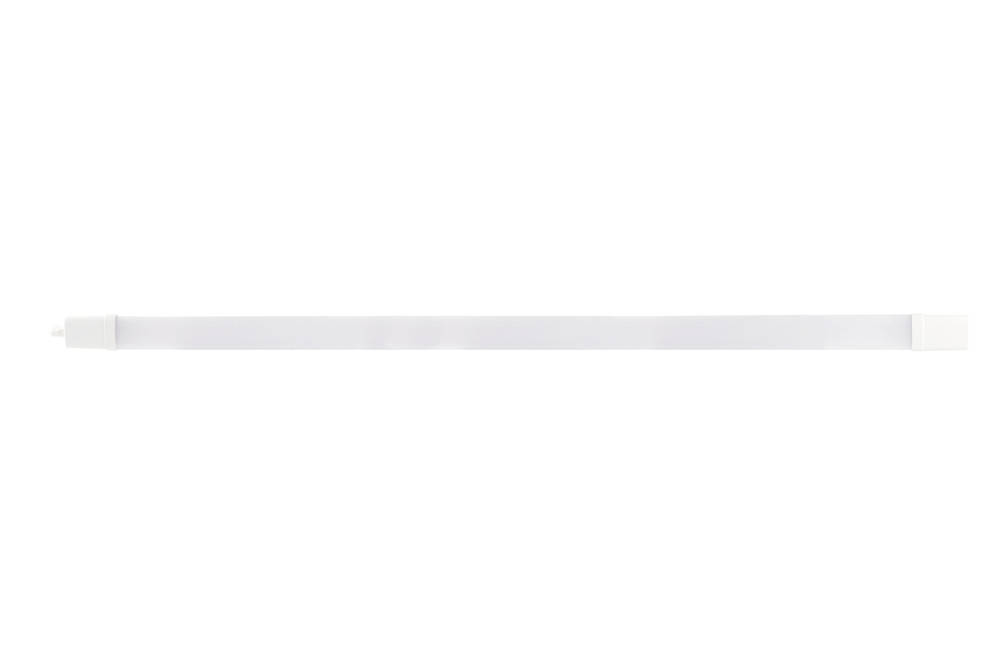

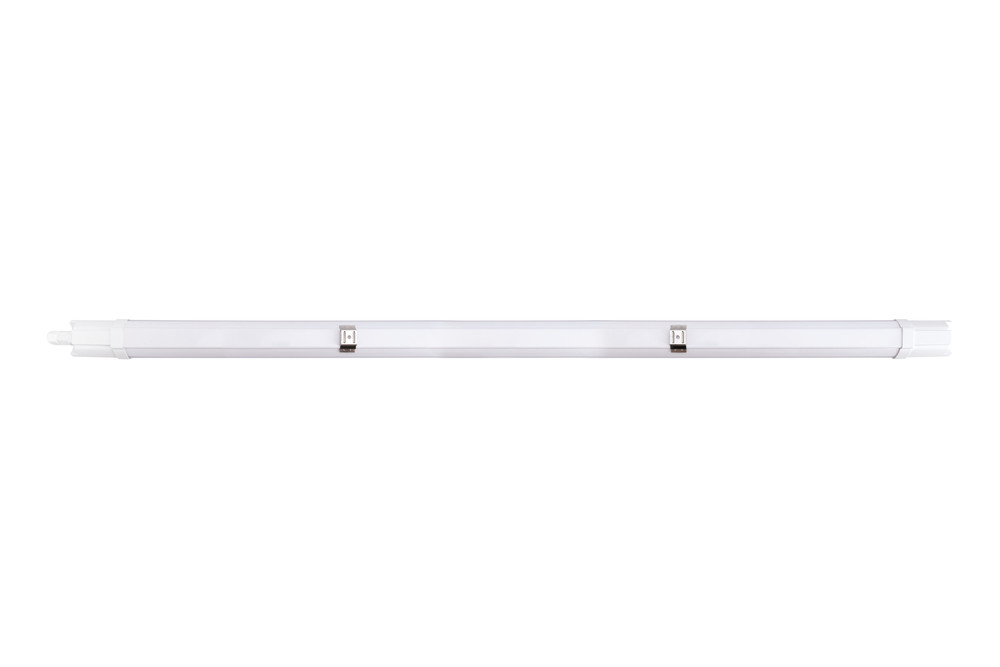

SLIM ECO IP65 BATTEN 5FT 24W 2400lm 4000K 120 BEAM 100LM/W 1518mm NON-DIMM INTEGRAL
Part Number:
ILBTE103
The Integral LED Slim Eco IP65 Batten offers an affordable, easy to install and compact luminaire ideal for retrofits and installations in commercial, residential and other generalised applications which require superior IP65 protection from dust and moisture.
Available in 2ft, 4ft and 5ft all with an efficient output of 100lm/W.
- Product Feature 1:
- 2400lm
- Product Feature 2:
- Slim Design
- Product Feature 3:
- IP65 body protects against dust and moisture ingress
- Product Feature 4:
- 3 Year warranty
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788297437 |
|---|---|
| Quick Order Code | 621113 |
| Product Type | Battens |
| Category | Luminaires |
| Range Name | Slim Eco |
| Finish | Matt White |
| Product Body Finish | Matt white |
| Type | Single |
| Market Segment | Commercial indoor and outdoor, Industrial indoor and outdoor |
| Placement / Application | Indoor and outdoor, General lighting |
| Warranty (Years) | 3 |
Physical Data
| Bulb or Luminaire Shape | Linear |
|---|---|
| Product Length (mm) | 1556.7 |
| Product Width (mm) | 38.2 |
| Product Depth (mm) | 41.9 |
| Product Weight (g) | 230 |
| Material | Polycarbonate |
| Construction | PC extrusion |
| Luminaire Fixing | Ceiling mounted |
| Emergency Option | No |
| Size (in ft) | 5ft |
| Linkable | Yes |
| Optic | Polycarbonate diffuser |

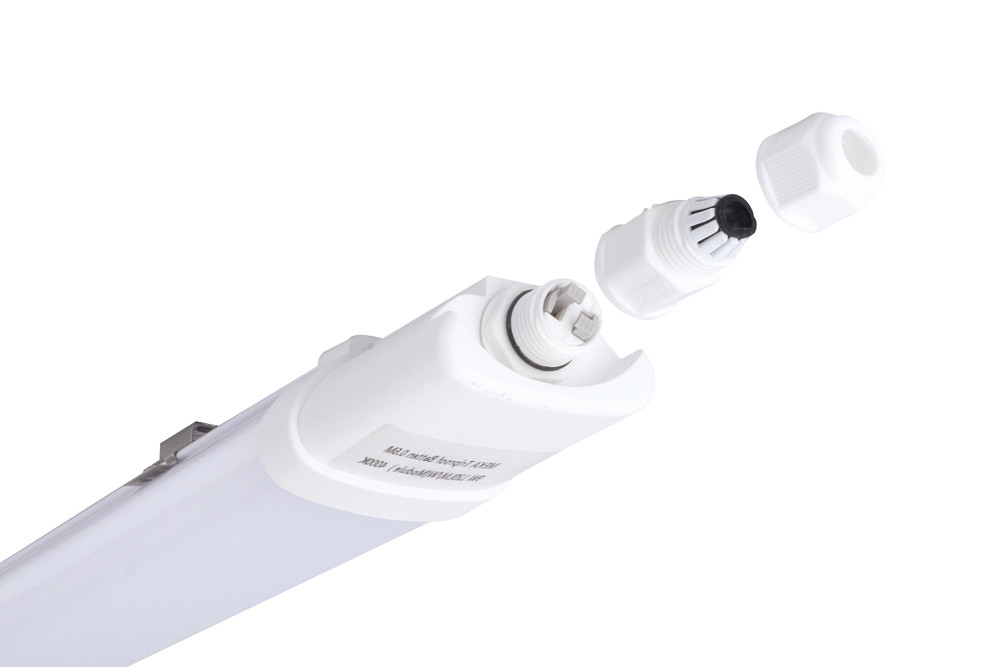

| Mounting Type | Side cable entry |
| Control Gear | Non-replaceable |
Light Data
| Luminous Flux in Lumens (lm) | 2400 |
|---|---|
| Luminous efficacy (lm/W) | 100 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000 - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 25000 |
| Switching Cycles | 15000 |
| Useful Lumens (lm) | 2400 |
| Light Source | Non-replaceable |
Electrical Data
| Power (W) | 24 |
|---|---|
| Power Consumption (W) | 24 |
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Input Voltage (V) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
Environmental
| IP Rating (Ingress Protection) | IP65 |
|---|---|
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 40 |
| EN | EN-60598 |
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK03 |
| New Energy Rating | E |
| EU Luminaire | L |
Packaging
| Barcode | 5055788297437 |
|---|---|
| Package Weight (g) | 250 |
| Package Length (mm) | 1540 |
| Package Width (mm) | 58 |
| Package Depth (mm) | 45 |
Safety Guide
ILBTE103
