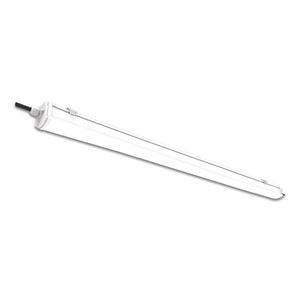

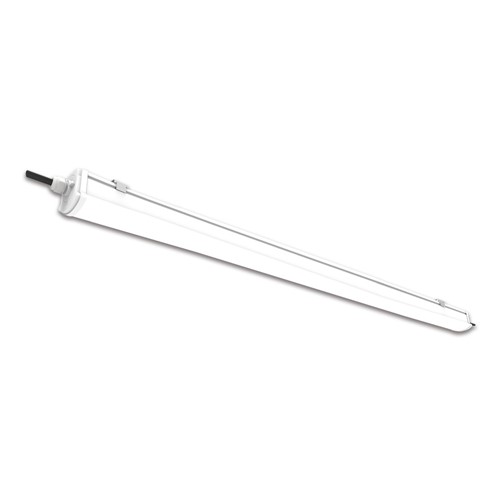

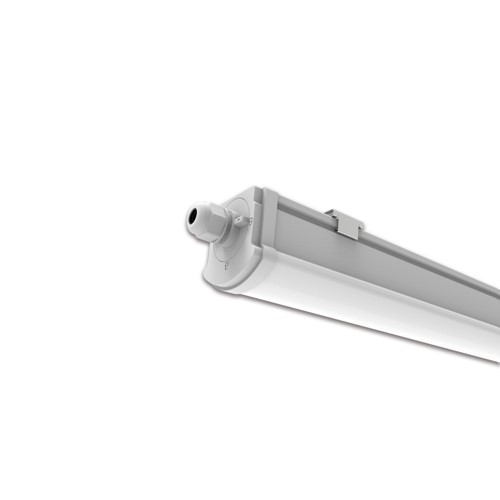

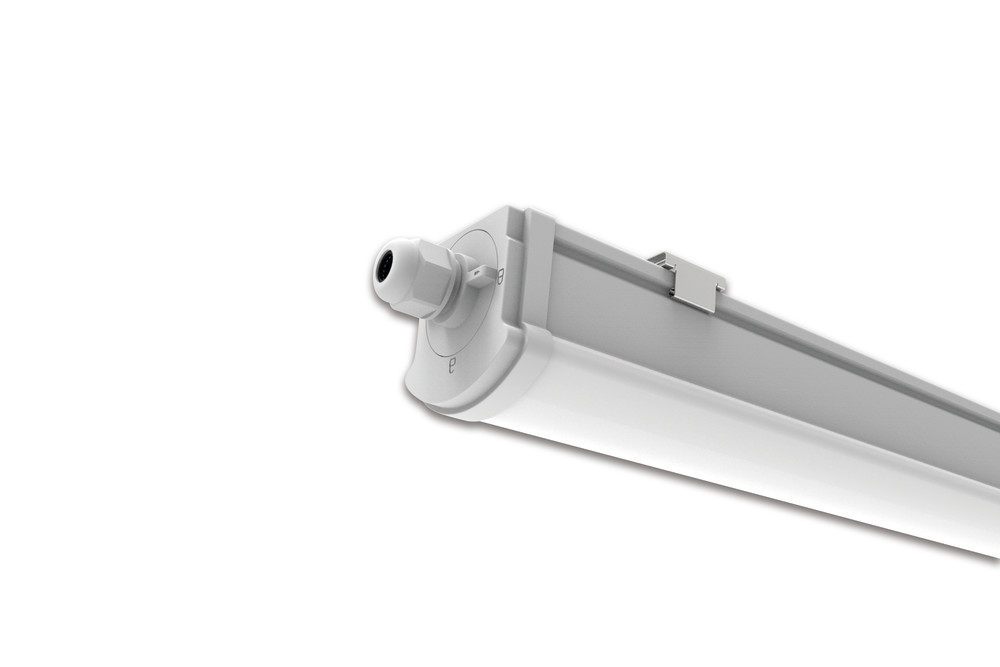

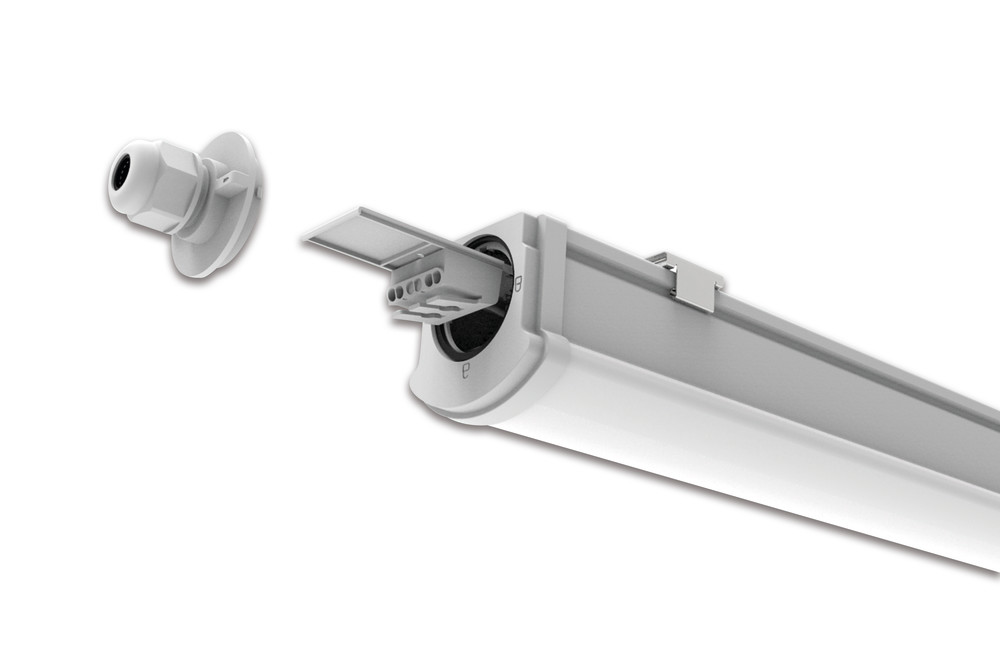

TOUGHSHELL+ AGRI PRO 6FT 55W 9350LM 2700/3500/5000K 120 BEAM 170LM/W IP66 IK10 LINKABLE INTEGRAL
Part Number:
ILBTG103
- Product Feature 1:

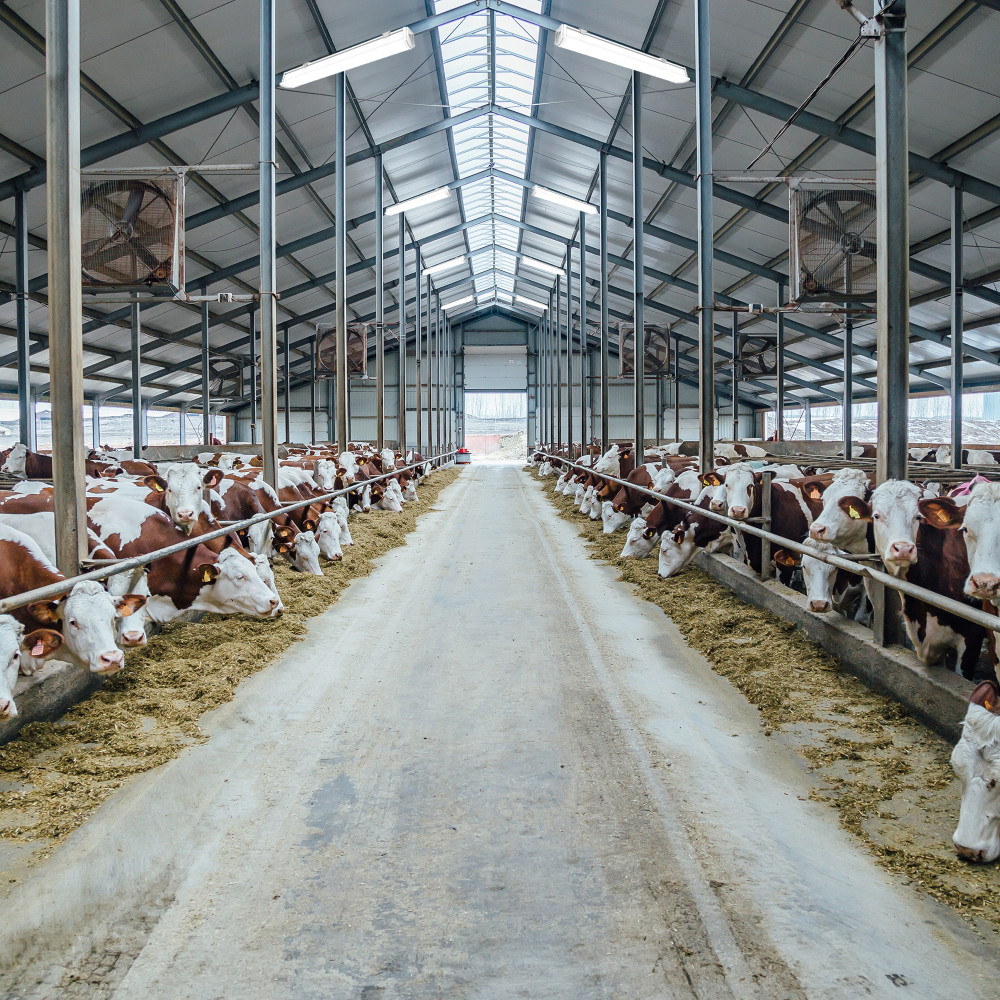

- Agricultural use
- Product Feature 2:
- CCT switchable
- Product Feature 3:
- IP66
- Product Feature 4:
- 170Lm/W
- Product Feature 5:
- 5 Year Warranty
- Product Feature 6:

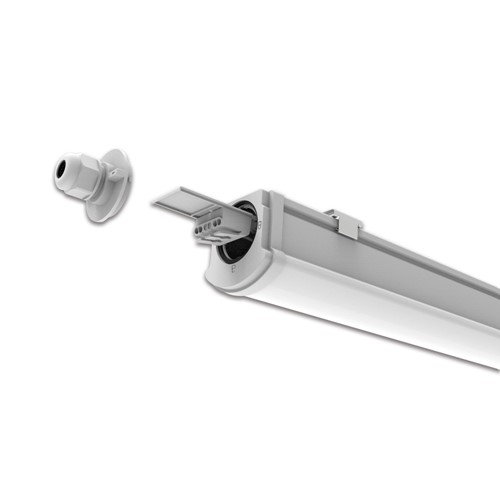

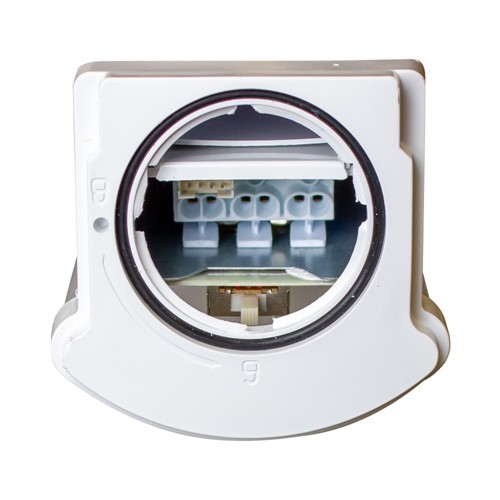

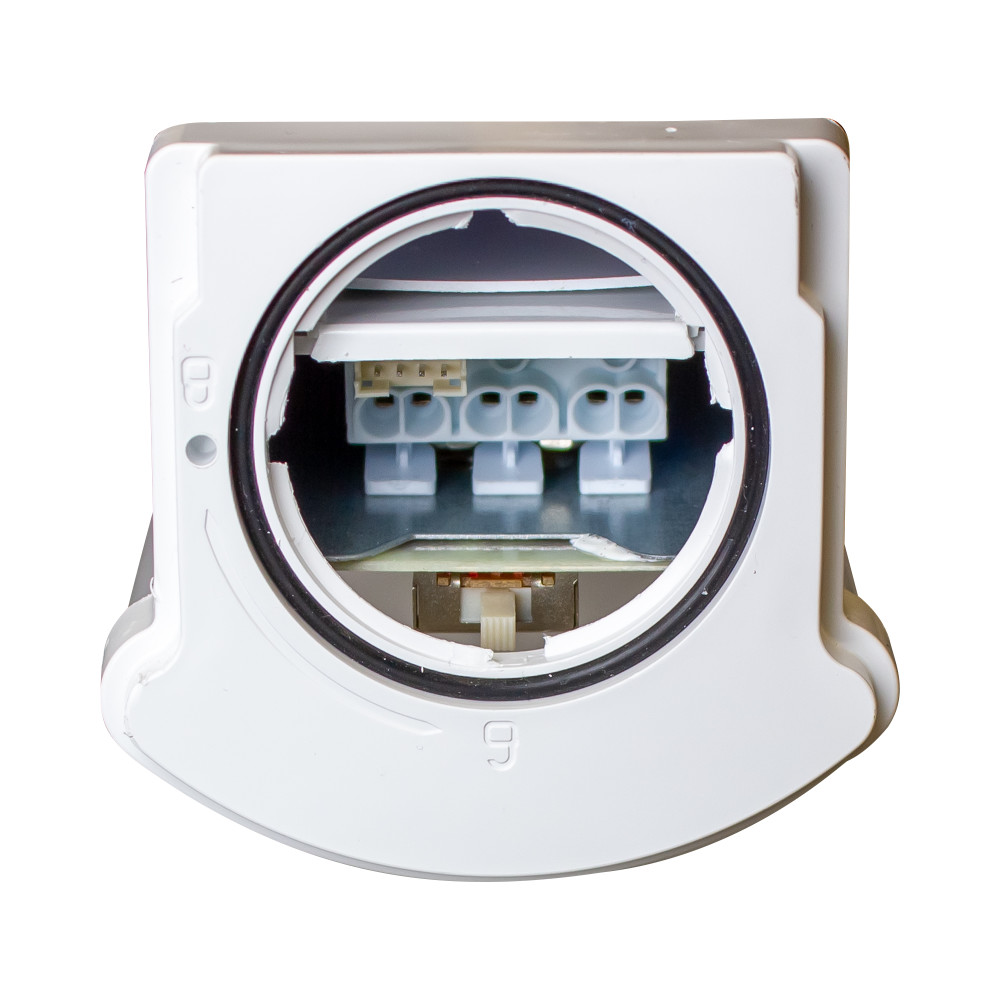

- Rapid Connect
- Product Feature 7:
- IK10
- Availability:
-
50+
More stock due in on 07/01/2025
Suggested products
Details
| Quick Order Code | 383923 |
|---|---|
| Barcode | 5055790000000 |
| Category | Luminaires |
| Range Name | Toughshell+ AGRI |
| Type | Twin |
| Product Type | Battens |
| Product Body Finish | Matt white |
| Market Segment | Commercial & Industrial |
| Finish | Matt White |
| Features | CCT Switchable |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | Optional Conversion Kit |
|---|---|
| Size (in ft) | 6ft |
| Linkable | Yes |
| Product Length (mm) | 1785 |
| Product Depth (mm) | 75 |
| Product Width (mm) | 82 |
| Product Weight (g) | 1400 |
| Optic | Polysiloxaine Diffuser |
| Material | Polysiloxaine Copolymer Extrusion resistant to Ammonia |
| Construction | Injection moulding |
| Bulb or Luminaire Shape | Linear |
| Luminaire Fixing | Surface or Suspended |
| Placement / Application | Indoor, Commercial and Industrial |
Light Data
| Luminous Flux in Lumens (lm) | 9350 |
|---|---|
| Luminous efficacy (lm/W) | 170 |
| Correlated Colour Temperature (CCT) (K) | 2700/3500/5000 |
| Colour Temperature | CCT Switch |
| Colour Temperature Name | CCT Switchable |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 100000 |
| Useful Lumens (lm) | 9350 |
Electrical Data
| Power Consumption (W) | 55 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 200-240 |
| Input Voltage (V) | 200-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK10 |
| IP Rating (Ingress Protection) | IP66 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 1800 |
|---|---|
| Package Length (mm) | 1785 |
| Package Width (mm) | 80 |
| Package Depth (mm) | 78 |
