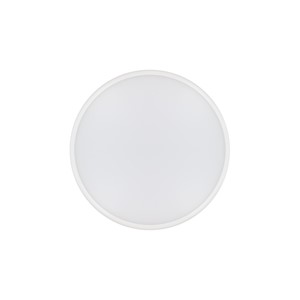

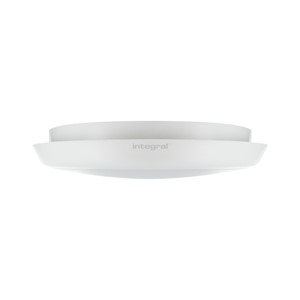

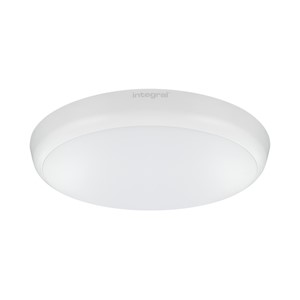

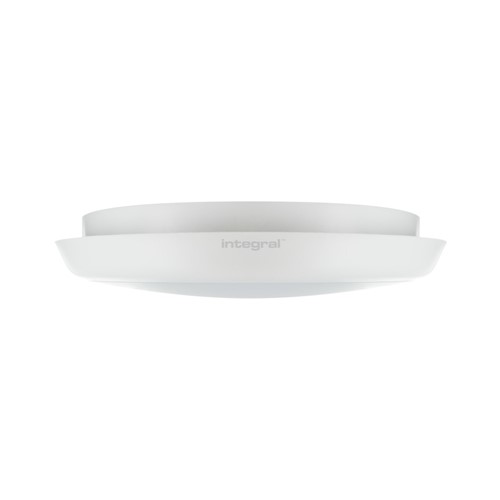

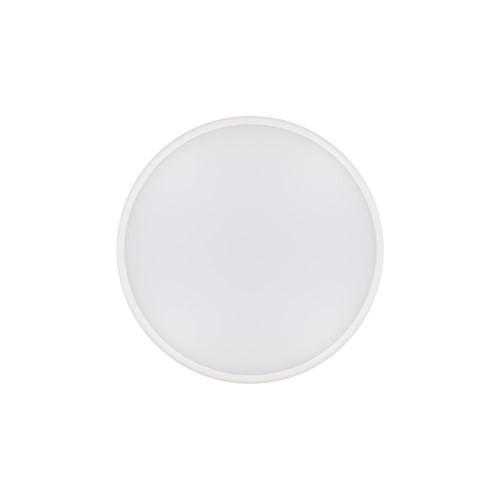

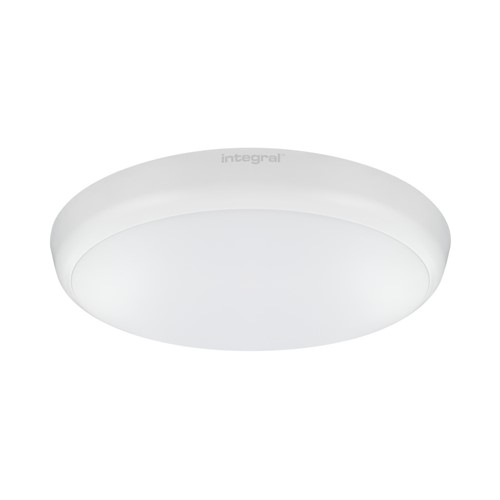

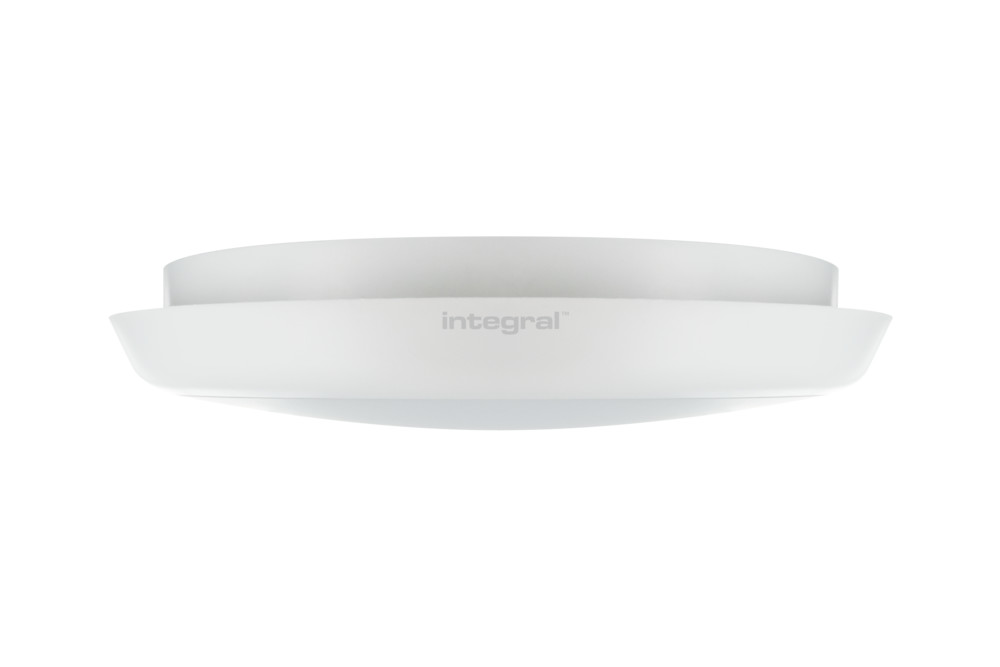

SLIMLINE CEILING/WALL LIGHT 350MM DIA IP54 2150LM 25W 4000K IK10 120 BEAM NON-DIMM WHITE 86LM/W INTEGRAL

Part Number:

ILBHC007

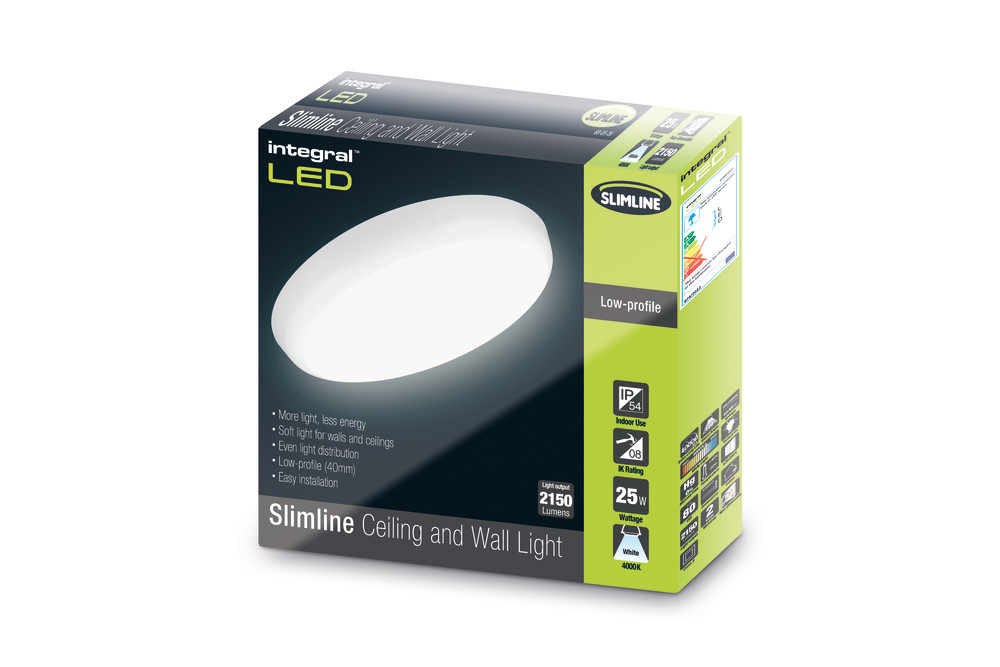

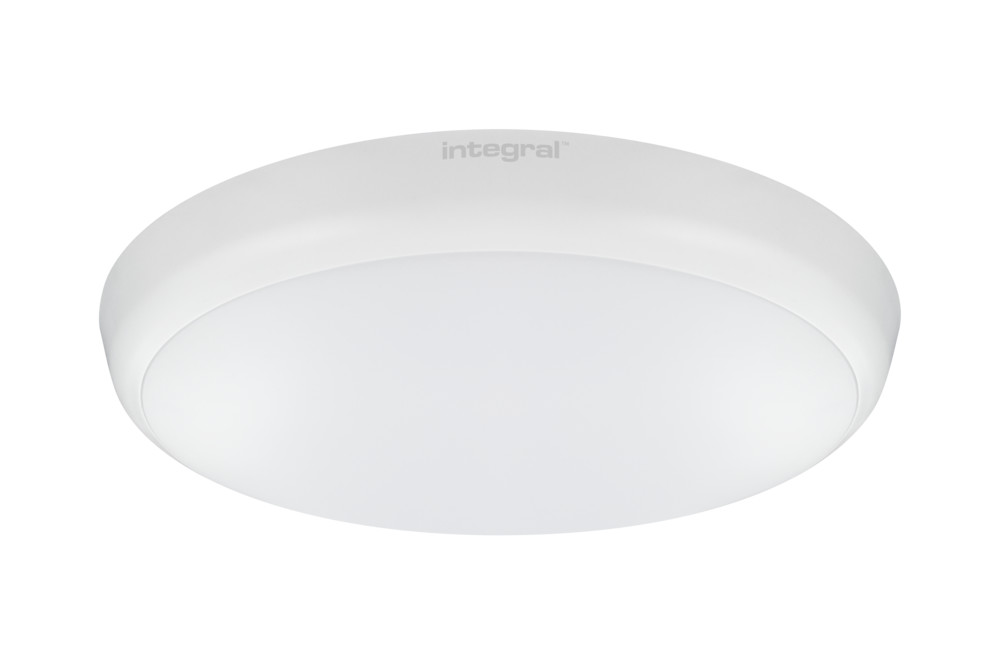

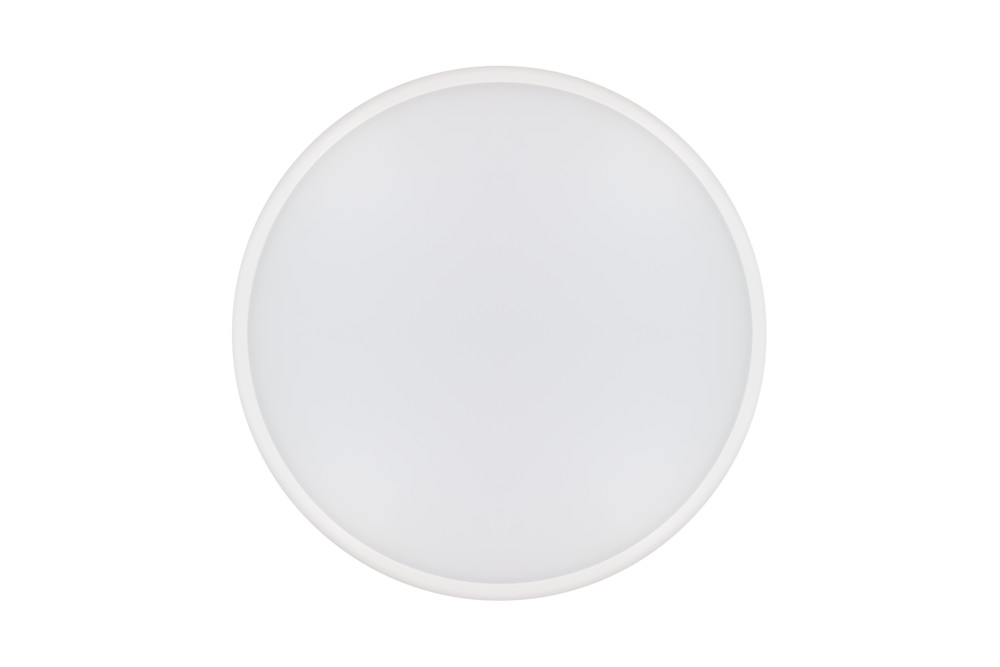

The Integral LED 25W low-energy ceiling and wall light delivers 2150 lumens, 4000K white colour temperature. Its back-lit LED design provides a 120 degree beam angle and an even light distribution. Integral IP54 Slimline ceiling and wall light has a low-profile depth of only 40mm and is suitable for all indoor areas such as hallways, stairways, walls and ceilings including bathrooms (Zone 2 and 3) and covered (sheltered) external areas, such as porches. Engineered from tough, high-grade polycarbonate material. Long life expectancy of 40,000 hours based on normal usage. Each unit is supplied with an easy installation bracket and an easy-to-follow installation guide.

Product Feature 1:
Low-Profile (40mm Thin)
Product Feature 2:
Easy installation bracket
Product Feature 3:
Soft light for walls and ceilings
Product Feature 4:
2150 Lumens
Availability:
100+

More stock due in on 10/01/2025

Quick Order Code 680526
Barcode 5055788216124
Category Luminaires
Range Name Slimline
Product Type Bulkheads-Ceiling-Wall Lights
Product Body Finish Matt white
Market Segment Commercial indoor, Residential indoor
Features Standard
Warranty (Years) 3
Product Depth (mm) 40
Product Weight (g) 1180
Diameter (mm) 350
Optic Polycarbonate diffuser
Material Polycarbonate
Overall diameter (mm) 350
Construction Polycarbonate casing and diffuser
Bulb or Luminaire Shape Round
Luminaire Fixing Ceiling, Wall
Placement / Application Indoor, General Lighting
Wiring / Mounting Options Rear and side / BESA BOX
Energy Efficiency Label (Image) ILBHC007_EU_label
Luminous Flux in Lumens (lm) 2150
Luminous efficacy (lm/W) 86
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature Name Cool White
Beam Angle 120
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
LED Size (mm) 2835
LED Type Surface mounted device (SMD)
Lifetime (hours) 40000
Sensor / Overide No
Switching Cycles 20000
Power (W) 25
Power Consumption (W) 25
Power Factor 0.9
Voltage Range (v) 200-240
Amperage (mA) 320
Dimming Non-Dimmable
Driver Included Yes
Electric Current AC
Emergency Lumens (lm) No
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
New Energy Rating F
EU Luminaire L
Hg 0% (Mercury Free) Yes
IK Rating (Impact Protection) IK08, IK10
IP Rating (Ingress Protection) IP54
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 45
Package Weight (g) 1420
Package Length (mm) 360
Package Width (mm) 360
Package Depth (mm) 50
Qty per euro pallet 160
