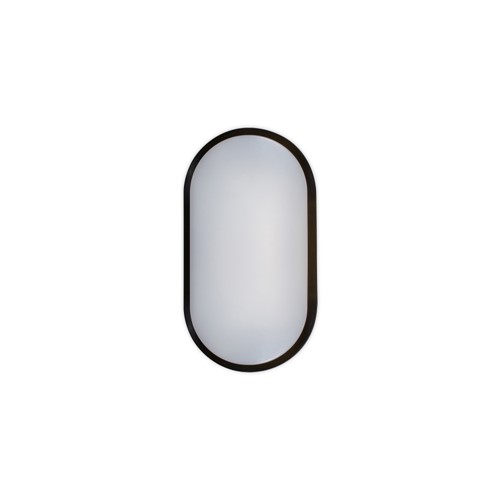

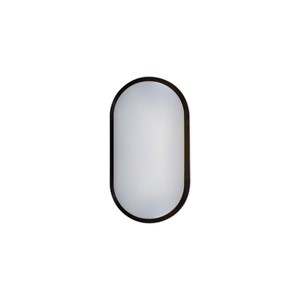

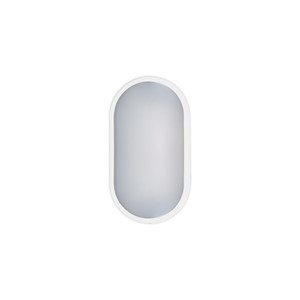

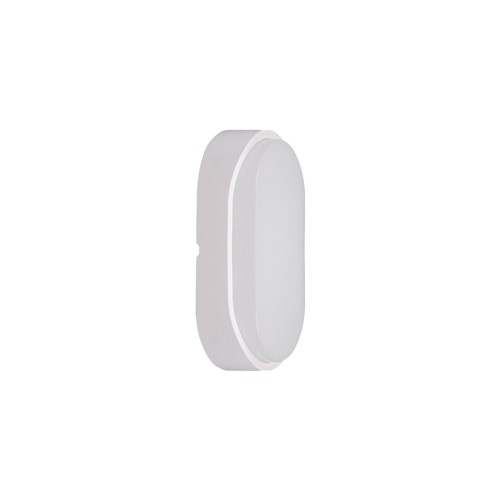

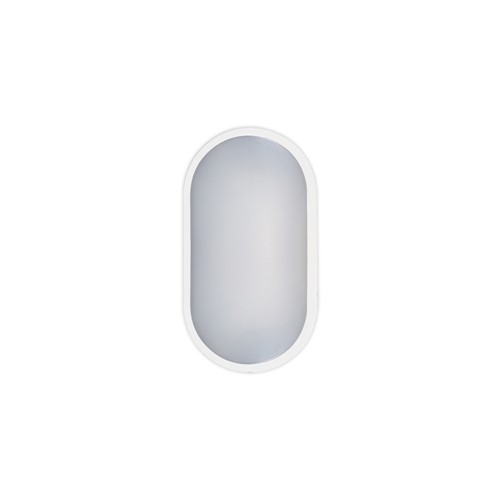

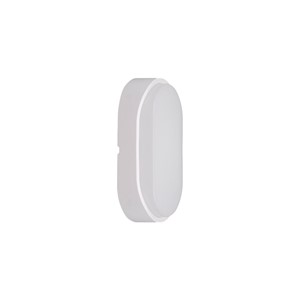

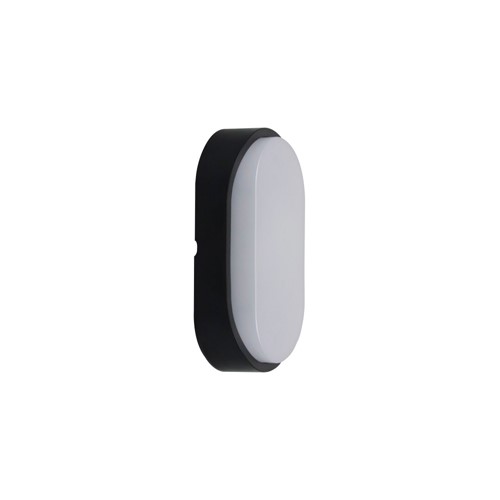

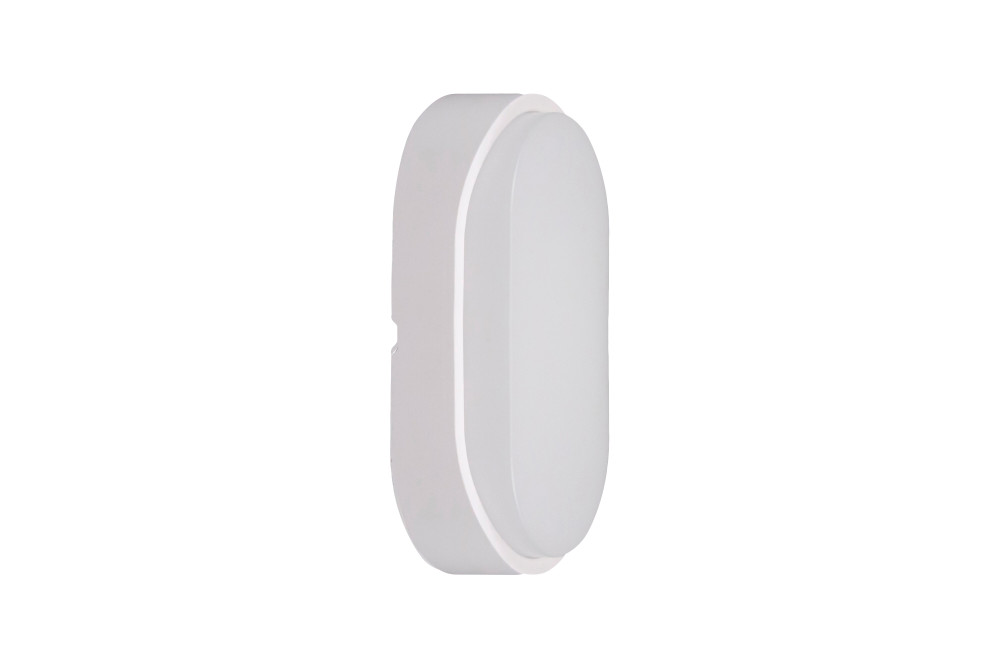

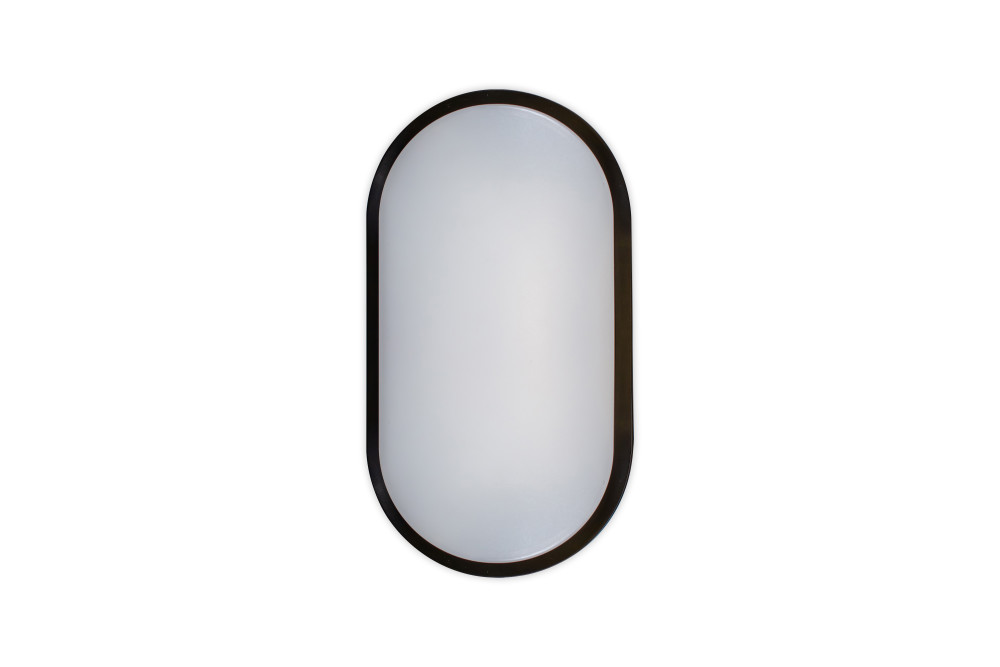

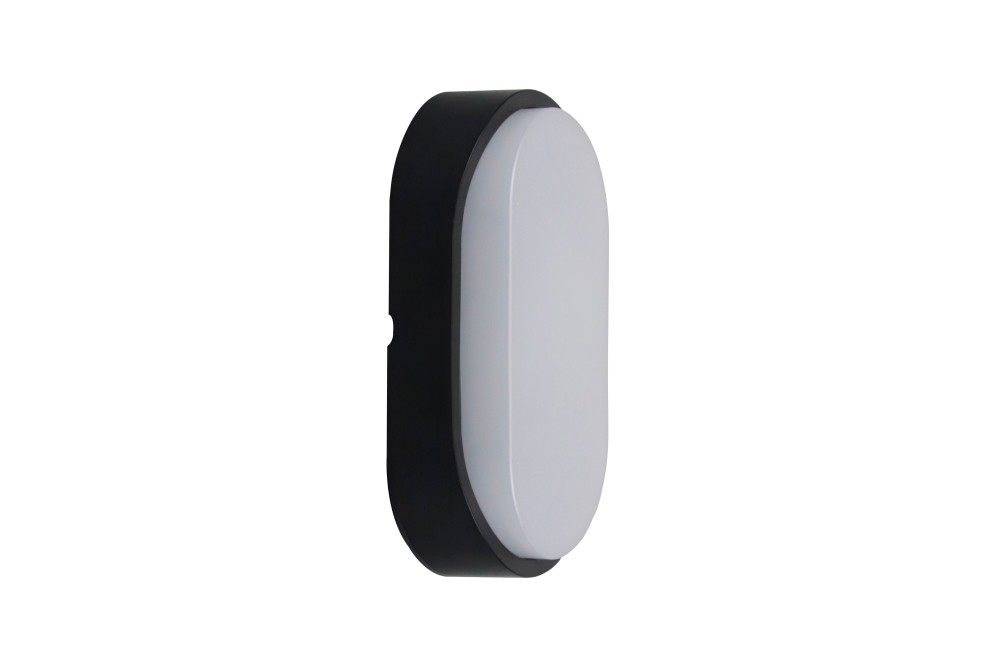

TOUGH SHELL COMPACT OVAL BULKHEAD 213X120MM 10W 1100LM 3000/4000/6000K SWITCHABLE CCT IP65 IK10 110LM/W INLUDING WHITE AND BLACK BEZELS INTEGRAL LED
Part Number:
ILBHP004
- Product Feature 1:
- 1100 Lumens
- Product Feature 2:
- Highly efficient - 100lm/W
- Availability:
-
0
More stock due in on 12/07/2024
Suggested products
Details
| Quick Order Code | 128335 |
|---|---|
| Barcode | 5055788292340 |
| Category | Luminaires |
| Range Name | Tough Shell Compact |
| Product Type | Bulkheads-Ceiling-Wall Lights |
| Product Body Finish | Matt white and black |
| Market Segment | Indoor and Outdoor Commercial, Industrial, Residential |
| Features | CCT Switchable |
| Warranty (Years) | 3 |
Physical Data
| Product Length (mm) | 213 |
|---|---|
| Product Depth (mm) | 65 |
| Product Width (mm) | 120 |
| Product Weight (g) | 300 |
| Optic | Polycarbonate |
| Material | Polycarbonate |
| Construction | Polycarbonate casing and diffuser |
| Bulb or Luminaire Shape | Oval |
| Luminaire Fixing | Wall Mounted |
| Placement / Application | Indoor, Outdoor, General Lighting |
| Wiring / Mounting Options | Rear cable entry |
Light Data
| Luminous Flux in Lumens (lm) | 1100 |
|---|---|
| Luminous efficacy (lm/W) | 110 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
Electrical Data
| Power (W) | 15 |
|---|---|
| Power Consumption (W) | 10 |
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| Emergency Lumens (lm) | No |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK10 |
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 400 |
|---|---|
| Package Length (mm) | 220 |
| Package Width (mm) | 130 |
| Package Depth (mm) | 105 |
| Qty per euro pallet | 350 |
