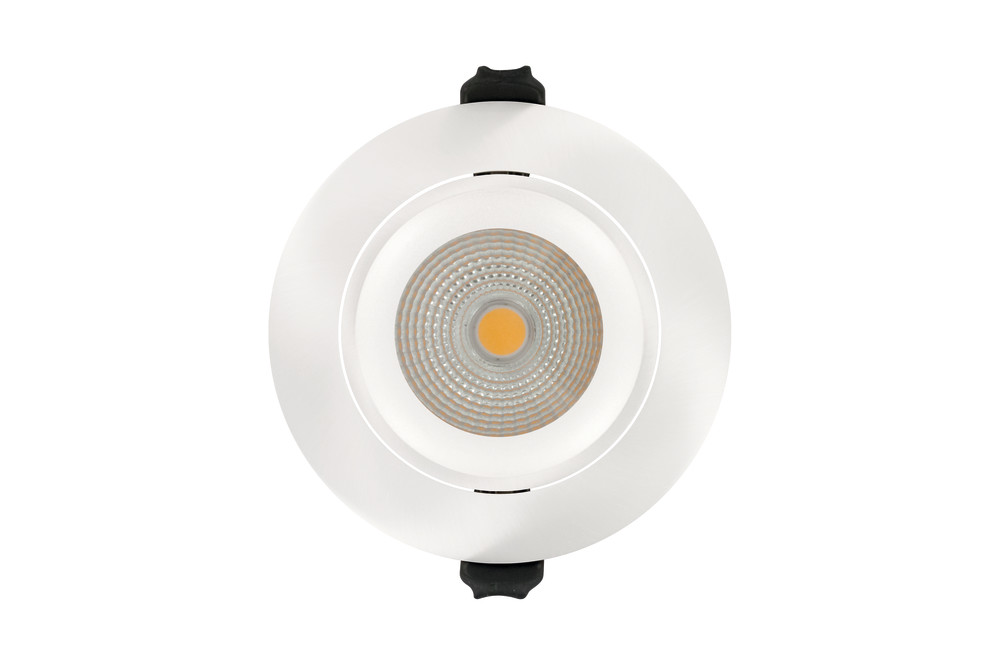

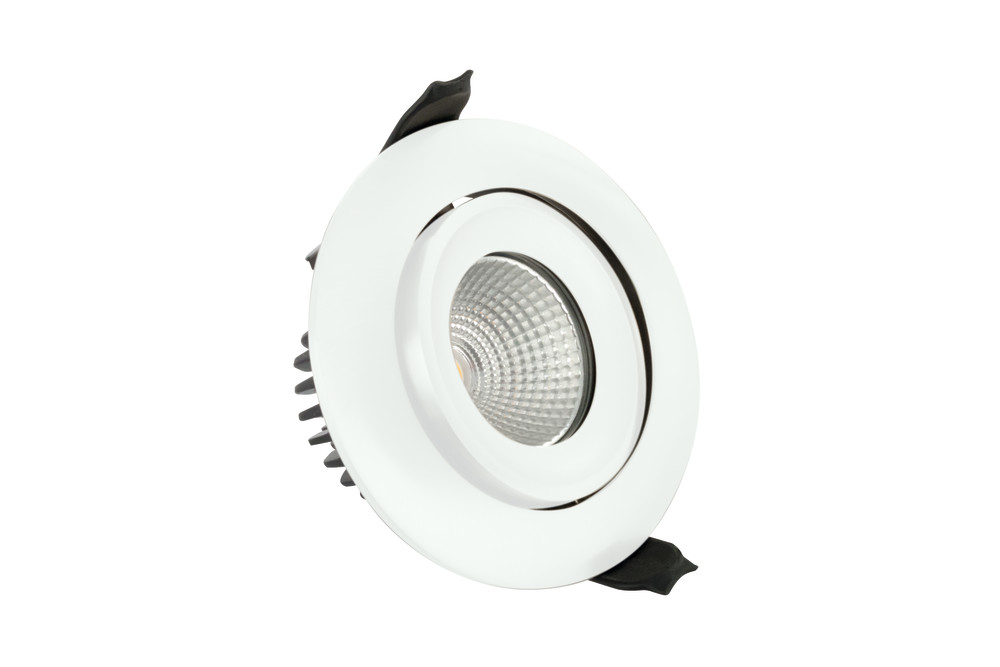

LUXFIRE FIRE RATED TILTABLE DOWNLIGHT 92MM CUTOUT IP65 650LM 9W 3000K 36 BEAM DIMMABLE 72LM/W WHITE INTEGRAL
Part Number:
ILDLFR92C005
Style, safety and flexibility - Integral LED Lux Fire Tiltable downlights not only conform to 30, 60 and 90mins fire rating specifications but are also rated to IP65, so they can be used safely in bathrooms. Lux Fire Tiltable fire-rated downlights have been tailored to deliver a premium finish to any home or business with their low-glare, high-quality light and contemporary design that looks impressive in any setting. This adjustable fitting can be tilted to illuminate specific areas or features in a room.
Lux Fire downlights are built using a deep recessed COB LED light source, providing a beam that has softened edges for a luxurious effect. Complete with Loop-in / Loop-out driver. IP65 and Air tightness compliant with Part C and Part L. Resistance to Sound compliant with Part E. Note: Warranty increased to 5 years on 27/03/2025
- Product Feature 1:
- Tiltable
- Product Feature 2:
- Warm White
- Product Feature 3:
- 650 Lumens
- Product Feature 4:
- Dimmable
- Product Feature 5:
- Matt white finish
- Product Feature 6:
- 30 degree tilt range
For this product to qualify as an Emergency product, it requires an Emergency Conversion Kit that can be purchased separately.
Please see Suggested products below for more information
- Availability:
-
302
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Barcode | 5055788223832 |
|---|---|
| Quick Order Code | 660483 |
| Product Type | Fire Rated |
| Category | Downlights |
| Range Name | Lux Fire |
| Fixed/Tiltable | Tiltable |
| Finish | Matt White |
| Product Body Finish | Matt white |
| Features | Tiltable |
| Market Segment | Commercial indoor, Residential indoor |
| Placement / Application | Indoor, General Lighting |
| Warranty (Years) | 5 |
Physical Data
| Cut Out Diameter (mm) | 92 |
|---|---|
| Diameter (mm) | 100 |
| Overall diameter (mm) | 100 |
| Product Length (mm) | 64 |
| Product Weight (g) | 420 |
| Material | Aluminium alloy, Acrylic, Iron |

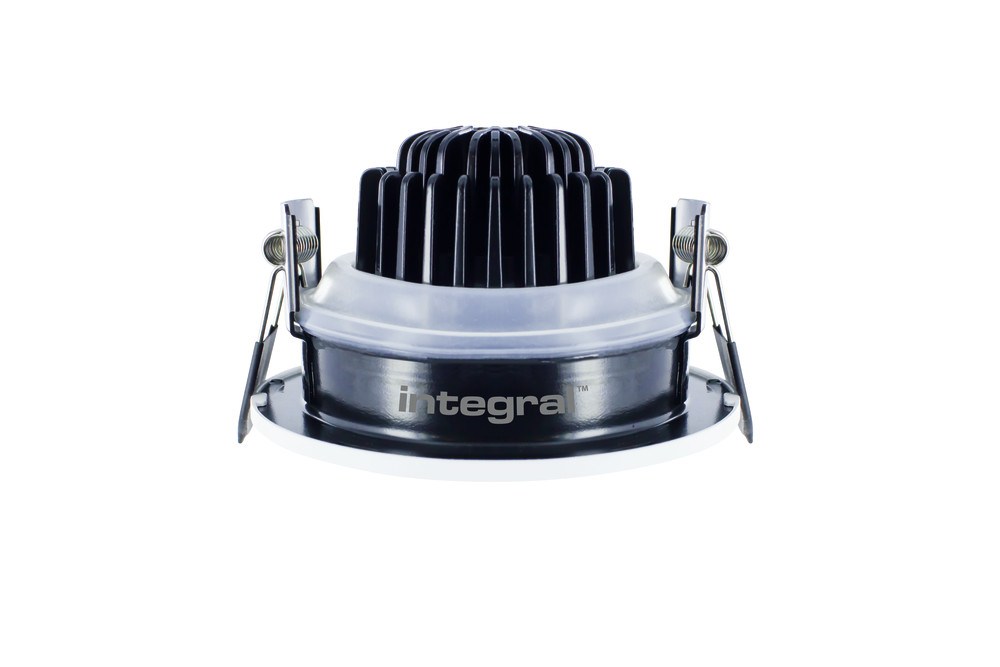

| Construction | Extruded Aluminium alloy heat-sink, Iron body, Steel springs and mounting plate, Acrylic diffuser |
| Luminaire Fixing | Recess mounted |
| Emergency Option | Optional Conversion Kit |
| Emergency Category | Downlights |
| Optic | Clear Refractor |
| Spot Type | COB |
Light Data
| Luminous Flux in Lumens (lm) | 650 |
|---|---|
| Luminous efficacy (lm/W) | 72 |
| Correlated Colour Temperature (CCT) (K) | 3000 |
| Colour Temperature | 3000 - Warm White |
| Colour Temperature Name | Warm White |
| Beam Angle | 36 |
| Colour Rendering Index (CRI) | 80 |
| Compatible Dimmers | Varilight JQP401W |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Chip on board (COB) |
| Lifetime (hours) | 35000 |
| Switching Cycles | 17500 |
| Light Source | Non-replaceable |
Electrical Data
| Power (W) | 9 |
|---|---|
| Power Consumption (W) | 9 |
| Power Factor | 0.89 |
| Voltage Range (v) | 220-240 |
| Wattage equivalent (W) | 51 |
| Amperage (mA) | 200 |
| Dimming | Mains dim |
| Driver Included | Yes |
| Electric Current | AC |
Environmental
| Fire Rating (mins) | 30, 60, 90 |
|---|---|
| IP Rating (Ingress Protection) | IP65 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
| EN | EN-60598 |
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| New Energy Rating | F |
| EU Luminaire | L |
Packaging
| Single box qty | 1 |
|---|---|
| Barcode | 5055788223832 |
| Package Weight (g) | 450 |
| Package Length (mm) | 110 |
| Package Width (mm) | 110 |
| Package Depth (mm) | 85 |
| Inner Carton Barcode | 05055788223979 |
| Qty per Inner Carton | 10 |
| Inner Carton Length (mm) | 550 |
| Inner Carton Width (mm) | 220 |
| Inner Carton Depth (mm) | 90 |
| Qty per Outer Carton | 36 |
| Outer Carton Length (mm) | 460 |
| Outer Carton Width (mm) | 350 |
| Outer Carton Depth (mm) | 295 |
