ACCENTPLUS GIMBAL DOWNLIGHT FOR 3 X LED GU10 255X90MM CUTOUT FRONT BULB ENTRY ±30° TILTABLE 365° ADJUSTMENT
Part Number:
ILDL90N017

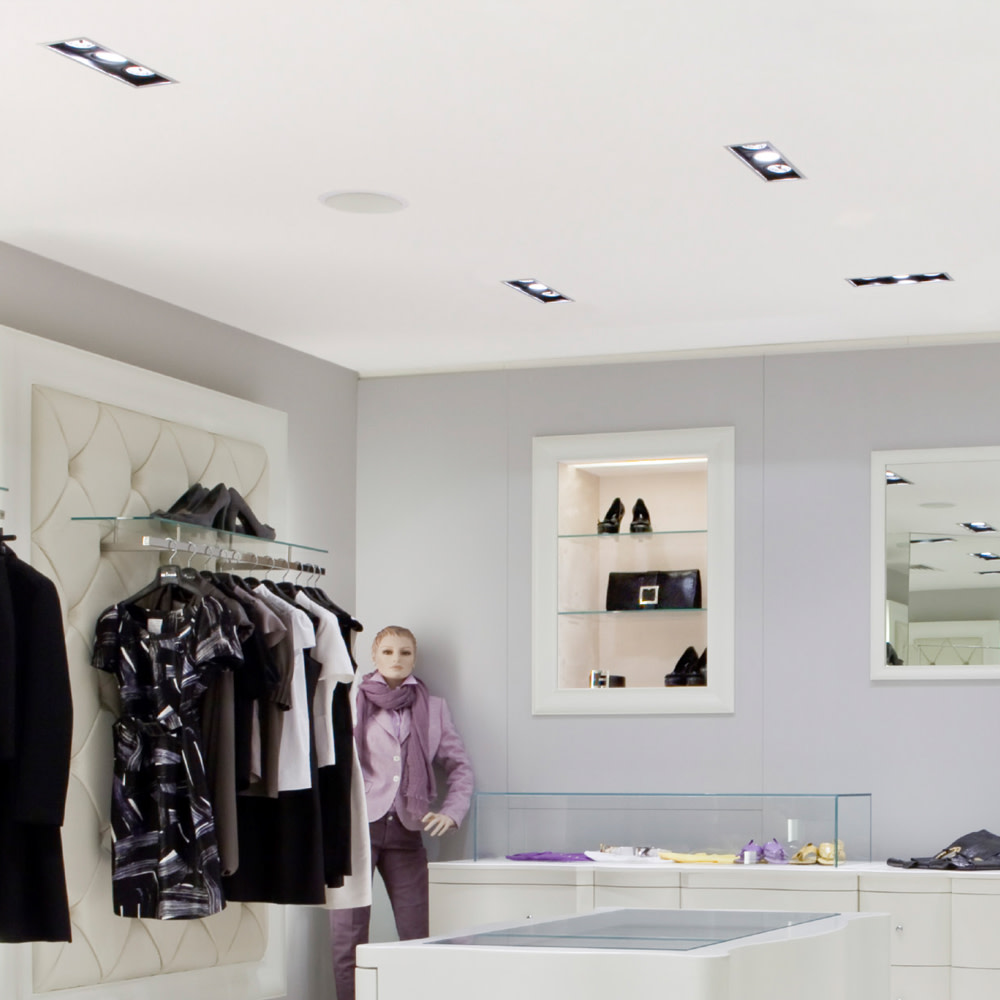

AccentPlus Gimbal downlights are the perfect cost-effective solution for retail environments. They take virtually every GU10 or MR16 bulb on the market as well as Integral LED's light modules for a more powerful light output (see related products below). For installations where perfect colour rendering is required, we recommend our high CRI GU10's. The fitting is 30 degrees tiltable in both directions and the light beam can be further fine-tuned by placing the inner ring at the required position through 365° on the horizontal plane. Bulb replacement is also simple and quick, with the inner ring being removable from the front face of the fitting, rather than having to remove the whole fixture from the ceiling.
- Product Feature 1:
- Triple lamp, front entry
- Product Feature 2:
- 30° tiltable and 365° adjustable
- Product Feature 3:
- Pure aluminium construction for great heat dissipation
- Availability:
-
0
More stock due in on 22/07/2024
Suggested products
Details
| Quick Order Code | 567127 |
|---|---|
| Barcode | 5055788279549 |
| Category | Downlights |
| Range Name | AccentPlus Gimbal |
| Product Body Finish | White bezel, black reflector |
| Market Segment | Commercial indoor |
| Features | 365° adjustable |
| Fixed/Tiltable | Tiltable |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | No |
|---|---|
| Product Length (mm) | 270 |
| Product Depth (mm) | 29 |
| Product Width (mm) | 100 |
| Product Weight (g) | 400 |
| Material | Aluminium |

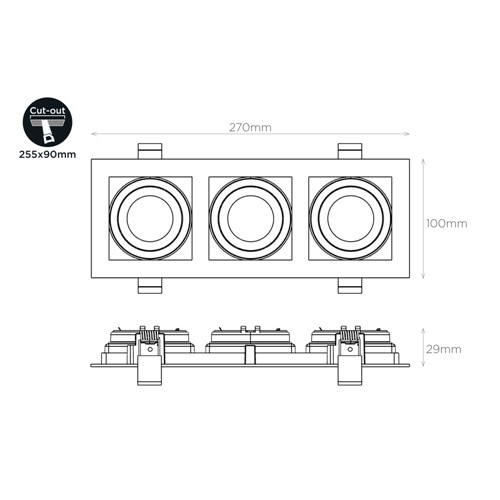

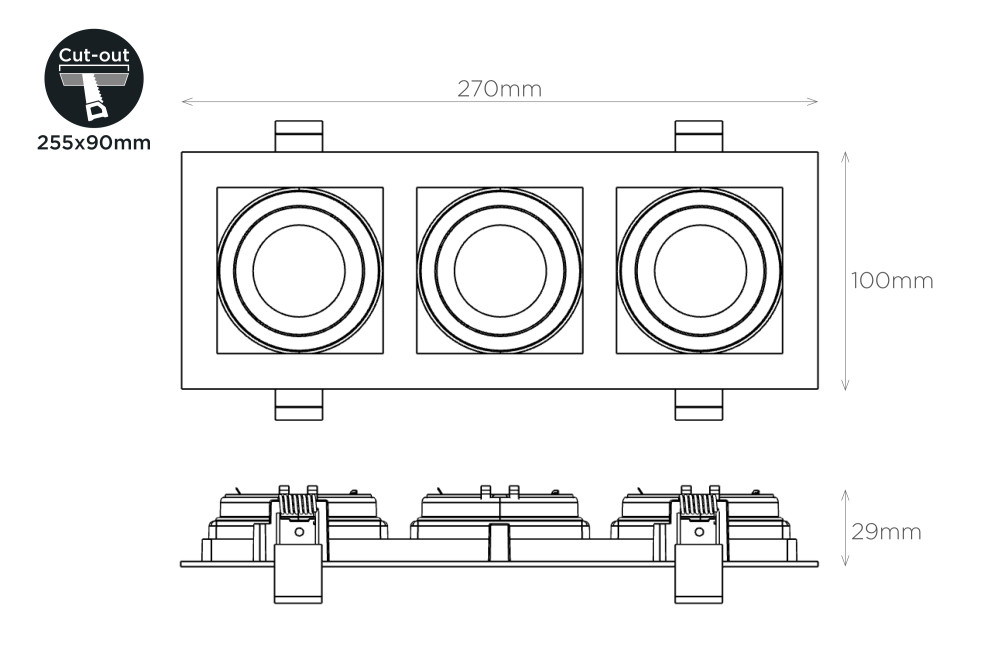

| Cut Out Length (mm) | 255 |
| Cut Out Width (mm) | 90 |
| Bulb or Luminaire Shape | Rectangle |
| Luminaire Fixing | Recess mounted |
| Placement / Application | Indoor, General Lighting |
Light Data
Electrical Data
Environmental
| CE RoHS | Yes |
|---|---|
| Hg 0% (Mercury Free) | Yes |
Packaging
| Package Weight (g) | 450 |
|---|---|
| Package Length (mm) | 275 |
| Package Width (mm) | 120 |
| Package Depth (mm) | 40 |
Safety Guide
