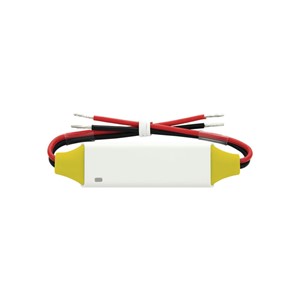

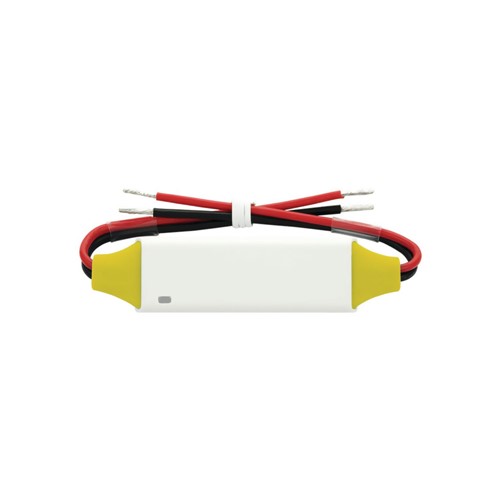

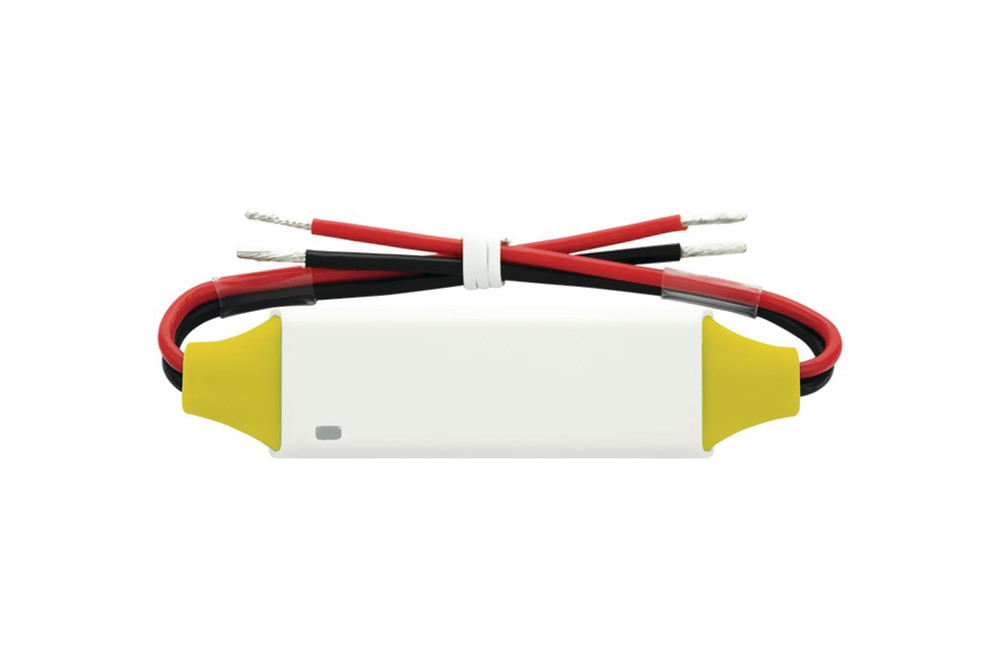

CONSTANT CURRENT DRIVER CASAMBI SECONDARY UNIT 20W 0-700MA IP20 0-48VDC OUTPUT POWER-LINE-DIMMABLE

Part Number:

ILCTCAS-SDF20-S

For areas inaccessible by Bluetooth signal, use our combination of Primary and Secondary application drivers to allow full connectivity.

This Secondary driver requires 48VDC input along with Casambi-to-power-line communication from a Primary unit, and can be used for connecting single colour or CCT-tunable LED panels and downlights into a local hard-wired network operated without the need of direct BLE signal reception.

The constant current adjustment, gradient speed, current trim level, zoning & grouping features are adjustable from the Casambi app and the Primary driver will transfer the commands to connected Secondary drivers via the power cable based on "Power-On" status detection. One Secondary driver is required for each connected luminaire.

Product Feature 1:
Suitable for controlling Single colour and Tunable White LED downlights
Product Feature 2:
Input: 48VDC + PLC data
Product Feature 3:
Output: 0-20W / 0-48VDC
Product Feature 4:
Adjustable Constant Current: 0-700mA (via Casambi app)
Product Feature 5:
Used in conjunction with ILCTCAS-PD200CB Primary driver
Availability:
100+

Call us on 0208 451 8700 to check the next availability

Suggested products

Quick Order Code 725399
Barcode 5055788287834
Category Strips
Range Name Casambi
Type Constant Current
Product Type Constant Current
Product Body Finish Matt white
Market Segment Commercial indoor, Residential indoor
Warranty (Years) 5
Product Length (mm) 87
Product Depth (mm) 2.5
Product Width (mm) 21
Product Weight (g) 23
Material PCB, Plastic Shell
Placement / Application Indoor, LED Lighting
Power (W) 20
Power Consumption (W) 20
Input Voltage (V) 48VDC
Output Current (mA) Adjustable
Output Voltage (V) 0-48VDC
Dimming Casambi-app-dimmable
Driver Included No
Electric Current DC
EN EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547
LVD Certified Yes
EN EN61347-1, EN61347-2-13, EN55015, EN6100-3-3, EN6100-3-2, EN61547
LVD Certified Yes
CE RoHS Yes
Hg 0% (Mercury Free) Yes
IP Rating (Ingress Protection) IP63
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 50
Package Weight (g) 29
Package Length (mm) 140
Package Width (mm) 38
Package Depth (mm) 16
