SLIMLINE CEILING/WALL LIGHT EMERGENCY 3HR 250MM DIA IP54 1056LM 12W 4000K IK10 120 BEAM NON-DIMM WHITE 88LM/W INTEGRAL

Part Number:

ILBHC008

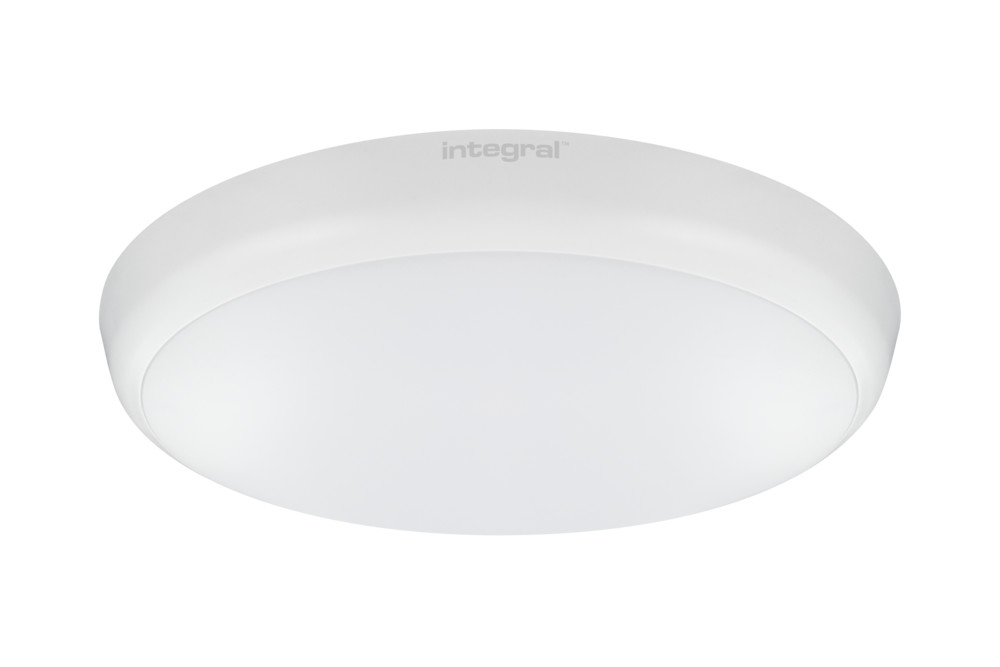

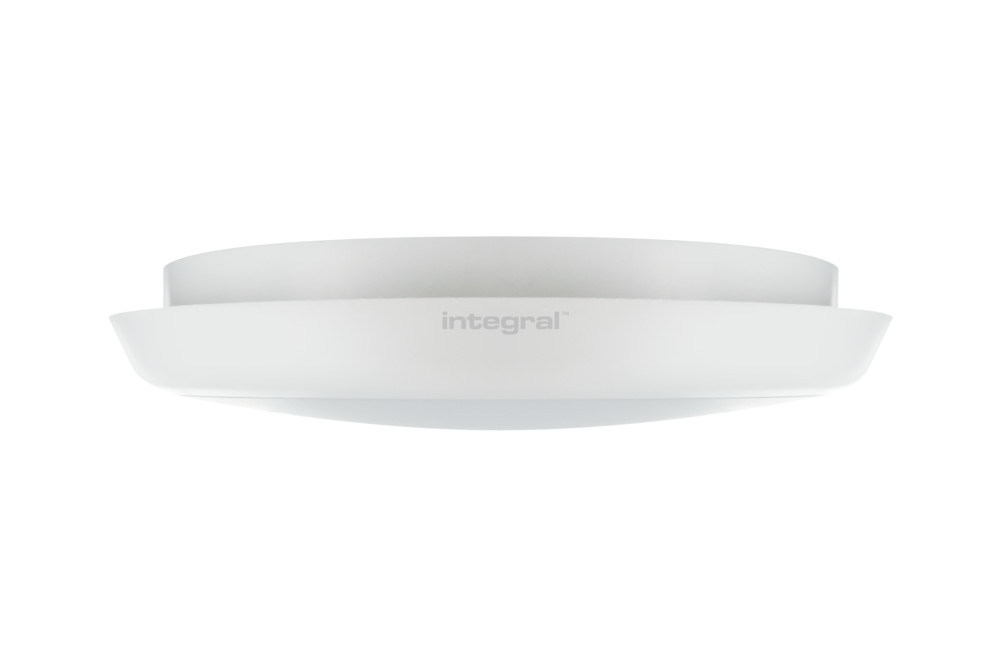

The Integral LED 12W low-energy ceiling and wall light delivers 1056 lumens, 4000K white colour temperature. Its back-lit LED design provides a 120 degree beam angle and an even light distribution. Integral IP54 Slimline ceiling and wall light has a low-profile depth of only 48mm and is suitable for all indoor areas such as hallways, stairways, walls and ceilings including bathrooms (Zone 2 and 3) and covered (sheltered) external areas, such as porches. Engineered from tough, high-grade polycarbonate material. Long life expectancy of 40,000 hours based on normal usage. Each unit is supplied with an easy installation bracket and an easy-to-follow installation guide. Its integrated emergency pack enhances the easy installation and maintenance. Once installed, in the event of a mains power failure the ceiling/wall light will continue delivering light (300 lumen output) for a minimum of 3 hours. A constant green LED light is visible from the front casing to show the emergency mode is functional.

Product Feature 1:
Low-Profile (48mm thin)
Product Feature 2:
Easy installation bracket
Product Feature 3:
Soft light for walls and ceilings
Product Feature 4:
1056 Lumens (Emergency 300 Lumens)
Product Feature 5:
Integrated 3hr emergency function
Availability:
0

More stock due in on 03/05/2024

Quick Order Code 855414
Barcode 5055788216001
Category Luminaires
Range Name Slimline
Product Type Bulkheads-Ceiling-Wall Lights
Product Body Finish Matt white
Market Segment Commercial indoor, Residential indoor
Features Emergency Function
Warranty (Years) 3
Emergency Option Integrated
Emergency Category Bulkheads
Product Depth (mm) 48
Product Weight (g) 780
Diameter (mm) 250
Optic Polycarbonate diffuser
Material Polycarbonate
Overall diameter (mm) 250
Construction Polycarbonate casing and diffuser
Bulb or Luminaire Shape Round
Luminaire Fixing Ceiling, Wall
Placement / Application Indoor, General Lighting
Wiring / Mounting Options Rear and side / BESA BOX
Energy Efficiency Label (Image) ILBHC008_EU_label
Luminous Flux in Lumens (lm) 1056
Luminous efficacy (lm/W) 88
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature Name Cool White
Beam Angle 120
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
LED Size (mm) 2835
LED Type Surface mounted device (SMD)
Lifetime (hours) 40000
Lumens in Emergency mode (lm) 300
Sensor / Overide No
Switching Cycles 20000
Power (W) 12
Power Consumption (W) 12
Power Factor 0.9
Voltage Range (v) 200-240
Amperage (mA) 150
Battery Configuration Lithium-ion
Dimming Non-Dimmable
Driver Included Yes
Electric Current AC
Emergency Battery Life (years) 3
Emergency Lumens (lm) 300
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
New Energy Rating F
EU Luminaire L
Hg 0% (Mercury Free) Yes
IK Rating (Impact Protection) IK08, IK10
IP Rating (Ingress Protection) IP54
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 45
Package Weight (g) 940
Package Length (mm) 260
Package Width (mm) 260
Package Depth (mm) 57
Qty per euro pallet 360

Product Specification Sheet

Safety Guides

LDT Files

Installation Guides
