EMERGENCY EXIT SIGN 26M VIEWING 1W 3HR MAINTAINED OR NON-MAINTAINED INTEGRAL
Part Number:
ILEMES030

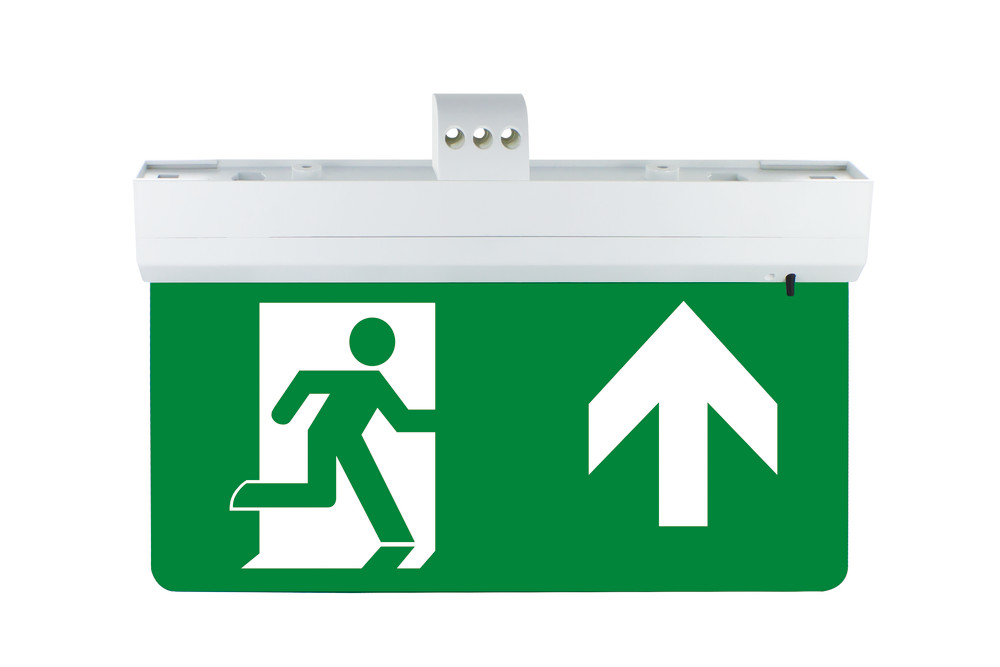

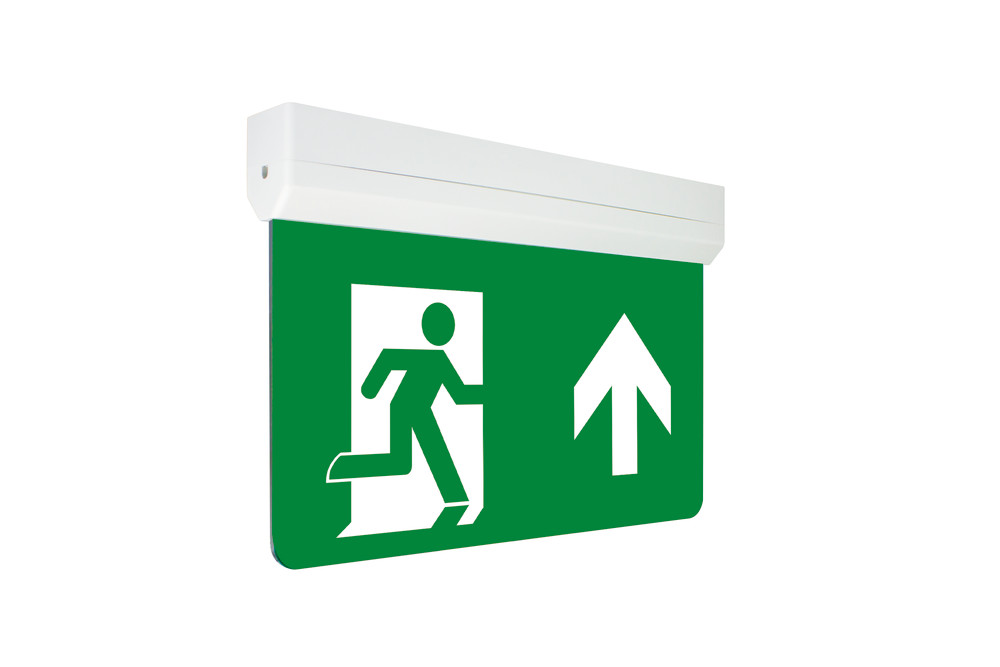

The Integral LED Multi-Fit 26m Emergency Exit Sign brings the efficiency and flexibility of LED to the vital sector of emergency lighting. This self-illuminating exit sign can be clearly seen in emergency situations from a 26m viewing distance with an option for maintained or non-maintained operation.
Choose an installation method from six mounting options including: wall mounted (single bracket), wall mounted (double bracket), perpendicular mounted and ceiling mounted. Recessed mounted and suspended installation accessories are available separately.
Note: Up, Right and Left signage blades sold separately. Please see Related Products below.
- Product Feature 1:
- Maintained or Non-Maintained Configurable
- Product Feature 2:
- Multuple Fitting Option
- Product Feature 3:
- Signage Blades Available Seperatly
- Availability:
-
0
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 697259 |
|---|---|
| Barcode | 5055788236719 |
| Category | Emergency |
| Range Name | Multi-Fit |
| Product Type | Exit Signs |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | Integrated |
|---|---|
| Emergency Category | Exit Signs |
| Product Length (mm) | 265 |
| Product Depth (mm) | 33 |
| Product Width (mm) | 45 |
| Product Weight (g) | 135 |
| Material | Polycarbonate |
| Bulb or Luminaire Shape | Rectangle |
| Luminaire Fixing | Wall Mounted, Perpendicular Mounted, Ceiling Mounted, Wall Mounted |
| Placement / Application | Indoor, Emergency Lighting |
Light Data
| Energy Efficiency Label (Image) | ILEMES030_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 60 |
| Correlated Colour Temperature (CCT) (K) | 6000 |
| Colour Temperature Name | Cool Daylight |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
Electrical Data
| Power Consumption (W) | 1 |
|---|---|
| Voltage Range (v) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| Lowest Operating Temperature (°C) | -40 |
| Maximum Operating Temperature (°C) | 20 |
Packaging
| Package Weight (g) | 135 |
|---|---|
| Package Length (mm) | 339 |
| Package Width (mm) | 36 |
| Package Depth (mm) | 46 |
