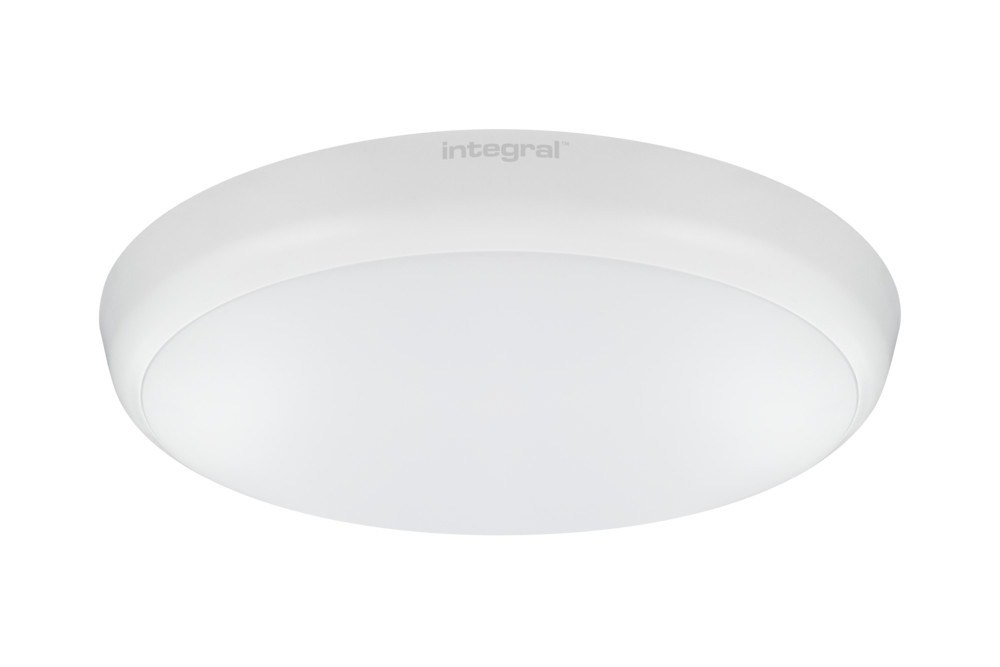

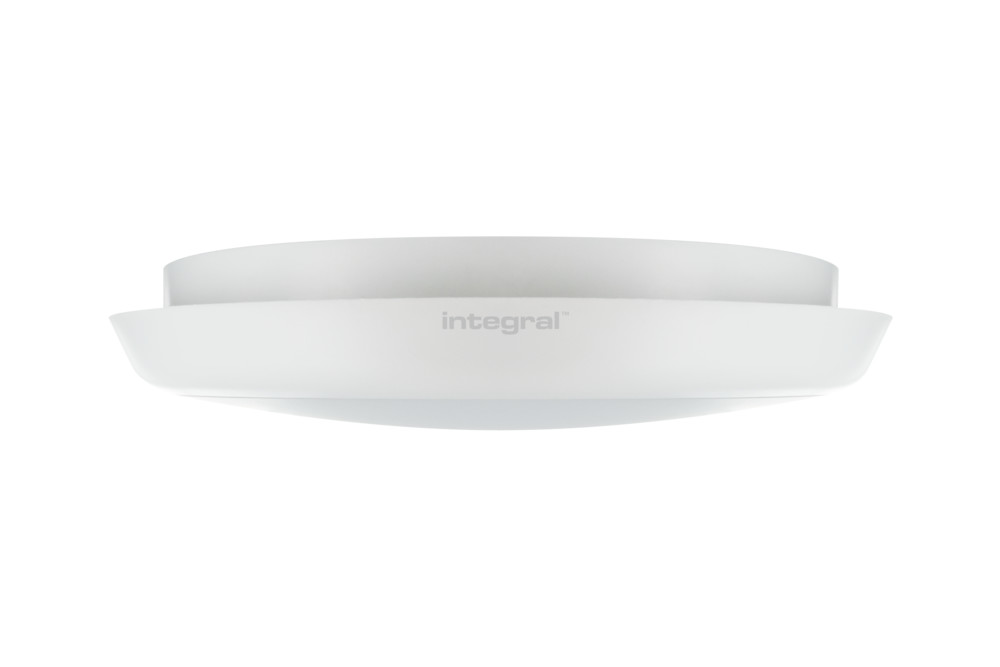

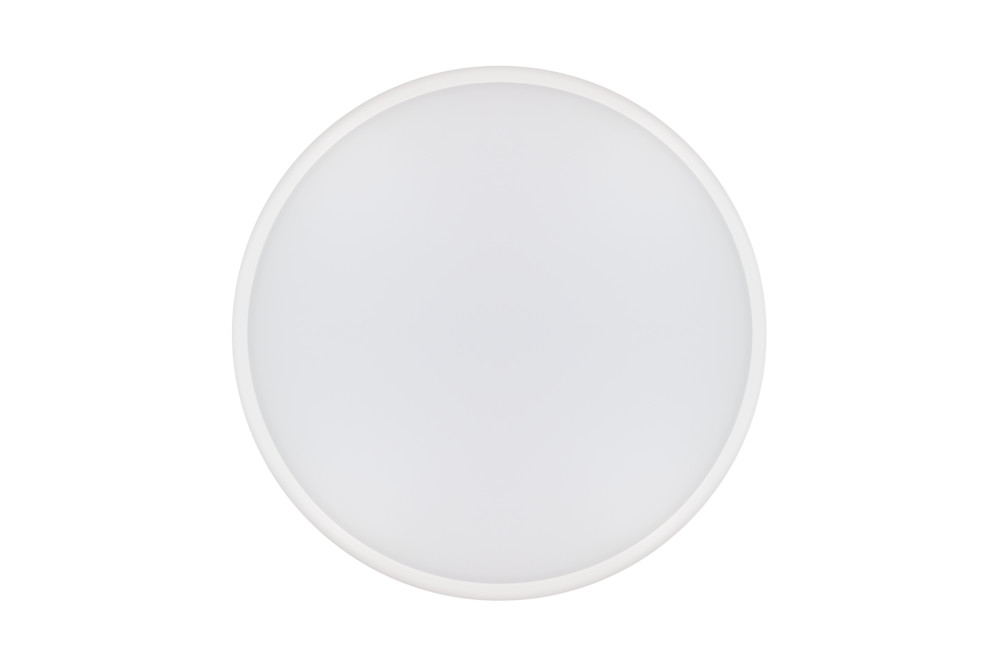

SLIMLINE CEILING/WALL LIGHT EMERGENCY 3HR AND MICROWAVE SENSOR 250MM DIA IP54 1056LM 12W 4000K IK10 120 BEAM NON-DIMM WHITE 88LM/W INTEGRAL
Part Number:
ILBHC010
The Integral LED 12W low-energy ceiling and wall light delivers 1056 lumens, 4000K white colour temperature. Its back-lit LED design provides a 120 degree beam angle and an even light distribution. Integral IP54 Slimline ceiling and wall light is designed with only 48mm depth providing a low-profile style, suitable for all indoor areas such as hallways, stairways, walls and ceilings including bathrooms (Zone 2 and 3) and covered (sheltered) external areas, such as porches. Engineered from tough, high-grade polycarbonate material. Long life expectancy of 40,000 hours based on normal usage. Each unit is supplied with an easy installation bracket and an easy-to-follow installation guide. Its integrated emergency pack enhances the easy installation and maintenance. Once installed correctly in the event of mains power failure the ceiling/wall light will continue delivering light (300 lumen output) for a minimum of 3 hours. A constant green LED light is visible from the front to show the emergency mode is functional. Its integrated microwave sensor provides a 140 degree detection area within 5 to 7 meters.
- Product Feature 1:
- Low-Profile (48mm thin)
- Product Feature 2:
- Easy installation bracket
- Product Feature 3:
- Soft light for walls and ceilings
- Product Feature 4:
- 1056 Lumens (Emergency 300 Lumens)
- Product Feature 5:
- Integrated 3hr emergency and microwave sensor function (non-adjustable)
- Availability:
-
100+
More stock due in on 15/01/2025
Details
| Quick Order Code | 963791 |
|---|---|
| Barcode | 5055788216063 |
| Category | Luminaires |
| Range Name | Slimline |
| Product Type | Bulkheads-Ceiling-Wall Lights |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor, Residential indoor |
| Features | Emergency Function, Non-adjustable Microwave Sensor |
| Warranty (Years) | 3 |
Physical Data
| Emergency Option | Integrated |
|---|---|
| Emergency Category | Bulkheads |
| Product Depth (mm) | 48 |
| Product Weight (g) | 800 |
| Diameter (mm) | 250 |
| Optic | Polycarbonate diffuser |
| Material | Polycarbonate |
| Overall diameter (mm) | 250 |
| Construction | Polycarbonate casing and diffuser |
| Bulb or Luminaire Shape | Round |
| Luminaire Fixing | Ceiling, Wall |
| Placement / Application | Indoor, General Lighting |
| Wiring / Mounting Options | Rear and side / BESA BOX |
Light Data
| Energy Efficiency Label (Image) | ILBHC010_EU_label |
|---|---|
| Luminous Flux in Lumens (lm) | 1056 |
| Luminous efficacy (lm/W) | 88 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature Name | Cool White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Size (mm) | 2835 |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 40000 |
| Lumens in Emergency mode (lm) | 300 |
| Sensor / Overide | Yes with sensor |
| Switching Cycles | 20000 |
Electrical Data
| Power (W) | 12 |
|---|---|
| Power Consumption (W) | 12 |
| Power Factor | 0.9 |
| Voltage Range (v) | 200-240 |
| Amperage (mA) | 150 |
| Battery Configuration | Lithium-ion |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| Emergency Battery Life (years) | 3 |
| Emergency Lumens (lm) | 300 |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| New Energy Rating | F |
| EU Luminaire | L |
| Hg 0% (Mercury Free) | Yes |
| IK Rating (Impact Protection) | IK08, IK10 |
| IP Rating (Ingress Protection) | IP54 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 960 |
|---|---|
| Package Length (mm) | 260 |
| Package Width (mm) | 260 |
| Package Depth (mm) | 57 |
| Qty per euro pallet | 360 |
Safety Guide
ILBHC010
