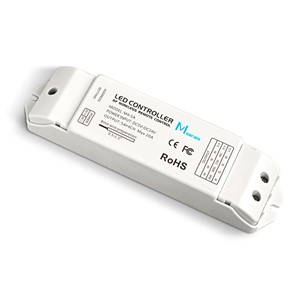

RF RECEIVER AND REMOTE BUTTON RGBW 5-24V CONSTANT VOLTAGE 100W(5V) AND 240W(12V) AND 480W(24V) INTEGRAL
Part Number:
ILRC008

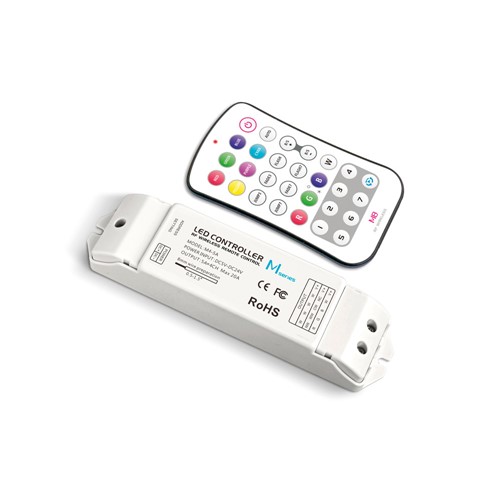

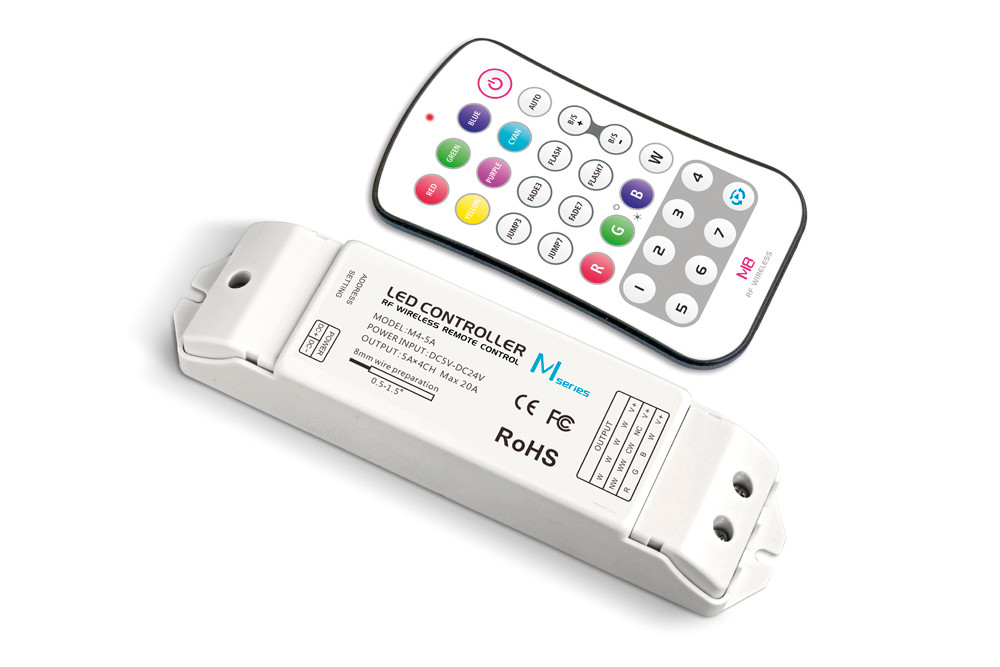

This RGBW colour RF (Radio Frequency) receiver and button remote control can be used with Integral RGBW colour changing strips. With the RGBW colour changing remote control, you can easily change the strip colour by choosing 6 static colours or create your favourite colour by pressing the R, G, and B dimming keys. You can also change the strip colour by choosing 6 dynamic light modes, control the brightness and change the speed when choosing the dynamic light mode. An easy-to-follow installation and operating guide can be downloaded from our website.
- Product Feature 1:
- Suitable for controlling RGBW colour changing strip
- Product Feature 2:
- Max 50M Remote Distance
- Product Feature 3:
- DC5-24V Power Input
- Product Feature 4:
- 5A x 4 channels Max 20A Current Load
- Product Feature 5:
- Max 100W (5V) /240W (12V) / 480W (24V) Power Output
- Availability:
-
100+
Call us on 0208 451 8700 to check the next availability
Suggested products
Details
| Quick Order Code | 368590 |
|---|---|
| Barcode | 5055788216926 |
| Category | Strips |
| Range Name | RGBW |
| Product Type | Controllers for strips |
| Warranty (Years) | 5 |
Physical Data
| Product Weight (g) | 167 |
|---|---|
| Material | PCB, Plastic Shell |
| Handheld or Wall Mount | Handheld |
| Zones | 1 |
Light Data
Electrical Data
| Voltage Range (v) | 45413 |
|---|---|
| Dimming | Dimmable |
| Driver Included | No |
| Electric Current | DC |
| EN | EN-60950-1 |
| LVD Certified | Yes |
Environmental
| EN | EN-60950-1 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Lowest Operating Temperature (°C) | -30 |
| Maximum Operating Temperature (°C) | 55 |
Packaging
| Package Weight (g) | 225 |
|---|---|
| Package Length (mm) | 227 |
| Package Width (mm) | 155 |
| Package Depth (mm) | 30 |
