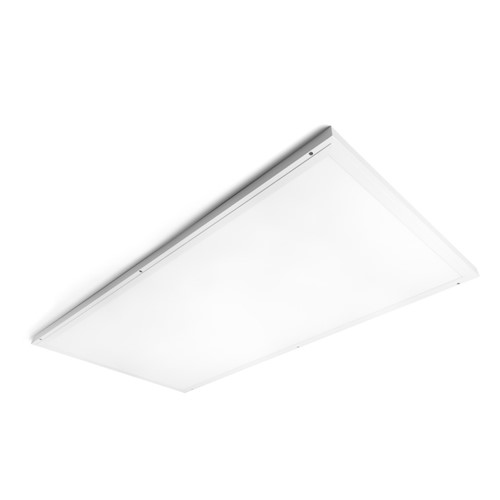

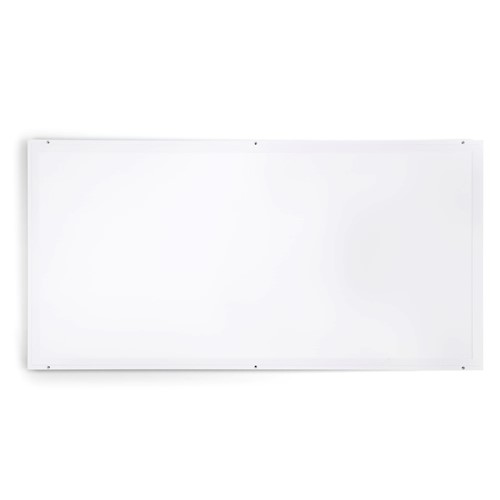

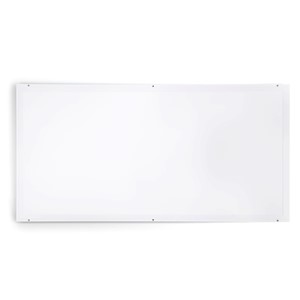

EVO SURFACE LED PANEL LIGHT 1200X600 5000LM 50W 4000K BACKLIT NON-DIMM 100LM/W 5YR WARRANTY INTEGRAL
Part Number:
ILP1260C009
Designed for easy installation and reliable performance in various environments, the Evo Surface LED Panel delivers powerful output and uniform shadow-free lighting.
Surface mounting is ideal for spaces where traditional recessed lighting isn’t feasible, such as locations with limited ceiling depth or where existing ceiling infrastructure doesn’t support recessed fixtures. The EVO Surface LED Panel Light offers a stylish alternative that maintains a clean, modern look without the need for extensive installation work. It is perfect for retrofitting older fixtures or for new constructions, especially in commercial spaces like offices, conference rooms, schools and retail environments.
With a 4000K neutral white colour temperature, it creates a bright and inviting atmosphere, perfect for enhancing productivity in any workspace.
- Product Feature 1:
- Cool White
- Product Feature 2:
- 5000 Lumens
- Product Feature 3:
- 100lm/W
- Product Feature 4:
- 5 year warranty
- Availability:
-
0
More stock due in on 22/12/2024
Suggested products
Details
| Quick Order Code | 162557 |
|---|---|
| Barcode | 5055788289951 |
| Category | Panels |
| Range Name | Evo Surface |
| Product Type | 1200 x 600 |
| Product Body Finish | Matt white |
| Market Segment | Commercial indoor |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | No |
|---|---|
| Product Length (mm) | 1208 |
| Product Depth (mm) | 28 |
| Product Width (mm) | 608 |
| Product Weight (g) | 3300 |
| Optic | Opal diffuser |
| Material | Aluminium, Steel, PS Diffuser |
| Construction | Aluminimum backplate and frame |
| Luminaire Fixing | Surface mounted |
| Placement / Application | Indoor, General Lighting |
Light Data
| Luminous Flux in Lumens (lm) | 5000 |
|---|---|
| Luminous efficacy (lm/W) | 100 |
| Correlated Colour Temperature (CCT) (K) | 4000 |
| Colour Temperature | 4000K - Cool White |
| Colour Temperature Name | Cool White |
| Beam Angle | 120 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |

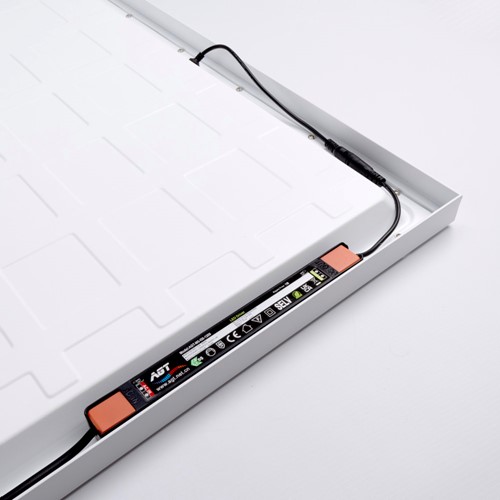

| Lighting Method | Back-lit |
| Switching Cycles | 25000 |
Electrical Data
| Power Consumption (W) | 50 |
|---|---|
| Power Factor | 0.9 |
| Voltage Range (v) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| EN | EN-60598 |
| LVD Certified | Yes |
Environmental
| EN | EN-60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Back/Recessed side) | IP20 |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 3500 |
|---|---|
| Package Length (mm) | 1220 |
| Package Width (mm) | 620 |
| Package Depth (mm) | 35 |
