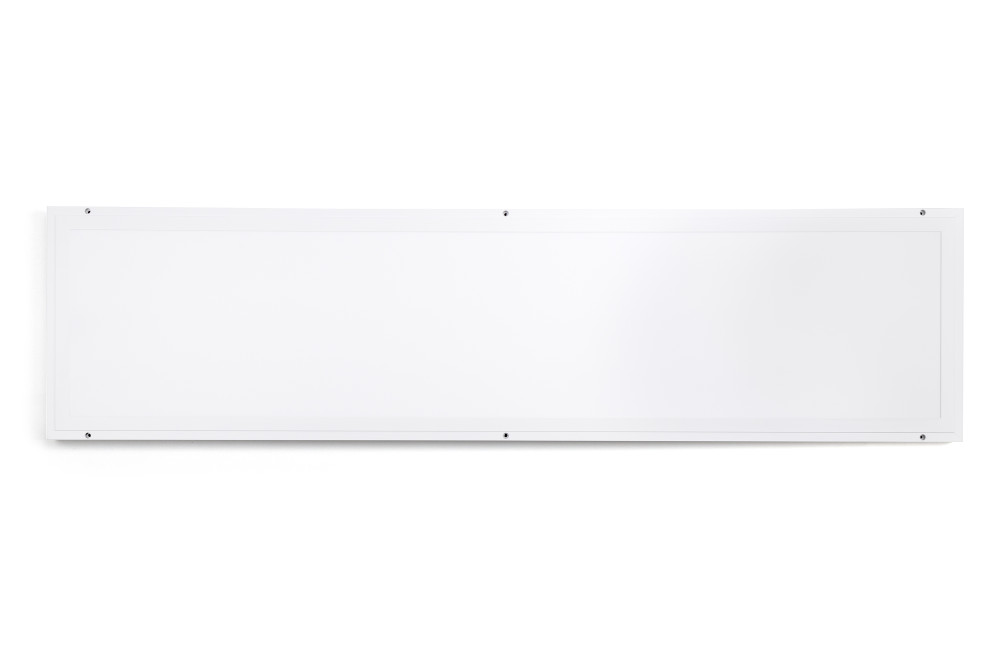

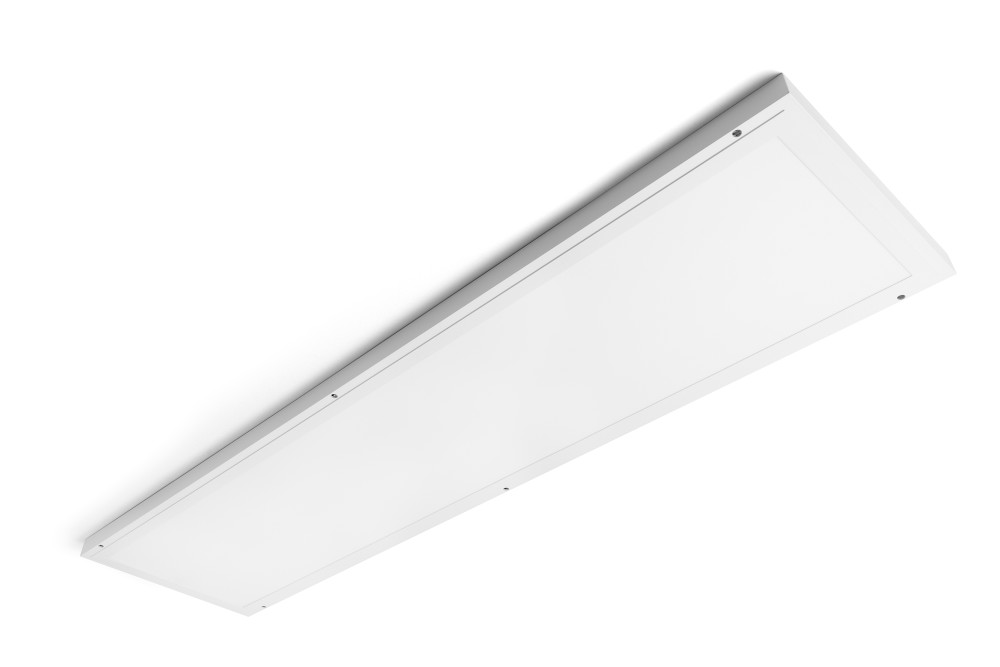

EVO SURFACE LED PANEL LIGHT 1200X300 3600LM 36W 4000K BACKLIT NON-DIMM 100LM/W 5YR WARRANTY INTEGRAL

Part Number:

ILP1230C004

Designed for easy installation and reliable performance in various environments, the Evo Surface LED Panel delivers powerful output and uniform shadow-free lighting.
Surface mounting is ideal for spaces where traditional recessed lighting isn’t feasible, such as locations with limited ceiling depth or where existing ceiling infrastructure doesn’t support recessed fixtures. The EVO Surface LED Panel Light offers a stylish alternative that maintains a clean, modern look without the need for extensive installation work. It is perfect for retrofitting older fixtures or for new constructions, especially in commercial spaces like offices, conference rooms, schools and retail environments.
With a 4000K neutral white colour temperature, it creates a bright and inviting atmosphere, perfect for enhancing productivity in any workspace.

Product Feature 1:
Cool White
Product Feature 2:
3600 Lumens
Product Feature 3:
100lm/W
Product Feature 4:
5 year warranty
Availability:
0

More stock due in on 15/12/2024

Suggested products

Quick Order Code 389474
Barcode 5055788289722
Category Panels
Range Name Evo Surface
Product Type 1200 x 300
Product Body Finish Matt white
Market Segment Commercial indoor
Warranty (Years) 5
Emergency Option No
Product Length (mm) 1208
Product Depth (mm) 28
Product Width (mm) 308
Product Weight (g) 1800
Optic Opal diffuser
Material Aluminium, Steel, PS Diffuser
Construction Aluminimum backplate and frame
Luminaire Fixing Surface mounted
Placement / Application Indoor, General Lighting
Luminous Flux in Lumens (lm) 3600
Luminous efficacy (lm/W) 100
Correlated Colour Temperature (CCT) (K) 4000
Colour Temperature 4000K - Cool White
Colour Temperature Name Cool White
Beam Angle 120
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
LED Type Surface mounted device (SMD)
Lifetime (hours) 50000
Lighting Method Back-lit
Switching Cycles 25000
Power Consumption (W) 36
Power Factor 0.9
Voltage Range (v) 220-240
Dimming Non-Dimmable

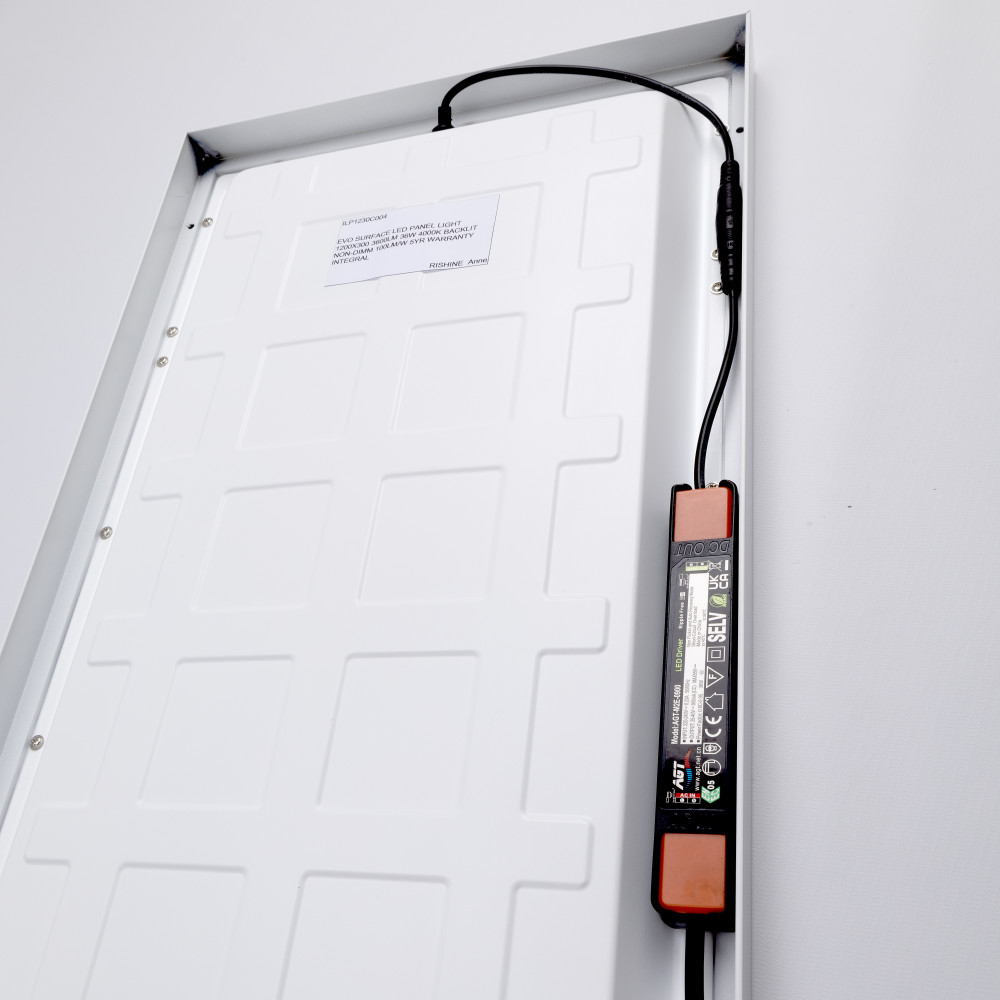

Driver Included Yes
Electric Current AC
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
Hg 0% (Mercury Free) Yes
IP Rating (Back/Recessed side) IP20
IP Rating (Ingress Protection) IP20
Lowest Operating Temperature (°C) -20
Maximum Operating Temperature (°C) 45
Package Weight (g) 1900
Package Length (mm) 1220
Package Width (mm) 320
Package Depth (mm) 35

Product Specification Sheet

Safety Guides

Installation Guides

LDT Files
