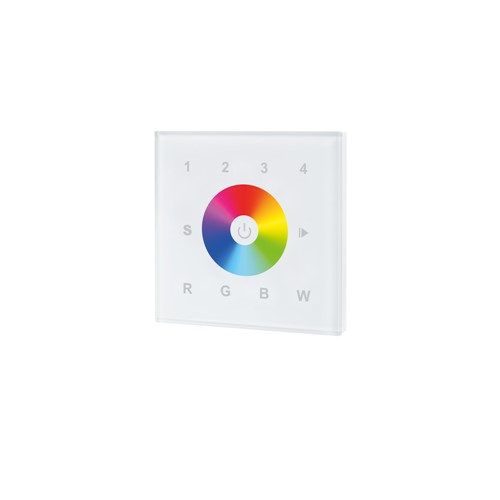

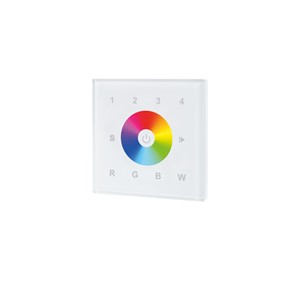

RF WALL MOUNT TOUCH RGBW 4 ZONE 100-240 AC INPUT WHITE INTEGRAL
Part Number:
ILRC017
Control a rainbow of colour with the tip of your finger. This Wall-mounted Touch Remote gives you precise and intuitive control over up to four separate areas of RGBW LED Strip. Set and save features allow you to save multiple lighting settings for each area so you can set your favourite ambience quickly and easily.
- Product Feature 1:
- RF Signal
- Product Feature 2:
- Control up to 4 Zones of lighting and save up to 4 scenes per zone
- Product Feature 3:
- Input: AC 100-240V
- Product Feature 4:
- For use with ILRC014 RF receiver
- Product Feature 5:
- White finish
- Availability:
-
28
More stock due in on 20/04/2025
Suggested products
Details
| Quick Order Code | 853555 |
|---|---|
| Barcode | 5055788238553 |
| Category | Strips |
| Range Name | RGBW |
| Product Type | Controllers for strips |
| Warranty (Years) | 5 |
Physical Data
| Product Weight (g) | 200 |
|---|---|
| Material | PCB, Polycarbonate |
| Handheld or Wall Mount | Wall Mount |
| Zones | 4 |
Light Data
Electrical Data
| Voltage Range (v) | 100-240 |
|---|---|
| Dimming | Dimmable |
| Electric Current | AC |
| EN | EN-60950-1 |
| LVD Certified | Yes |
Environmental
| EN | EN-60950-1 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 50 |
Packaging
| Package Weight (g) | 220 |
|---|---|
| Package Length (mm) | 100 |
| Package Width (mm) | 100 |
| Package Depth (mm) | 53 |
