EMERGENCY EXIT SIGN 26M VIEWING 1W 3HR MAINTAINED OR NON-MAINTAINED INTEGRAL

Part Number:

ILEMES030

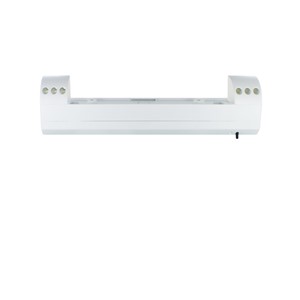

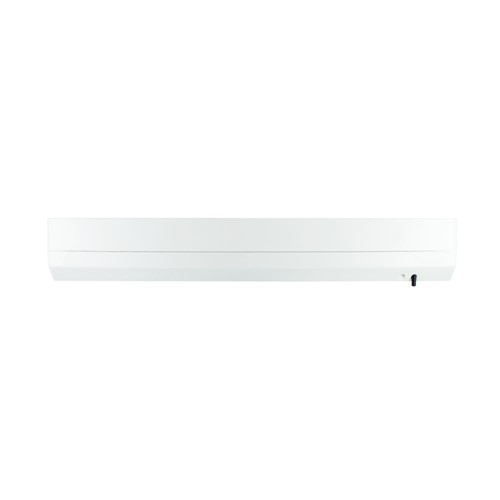

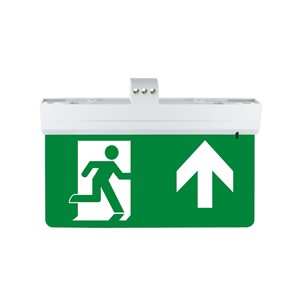

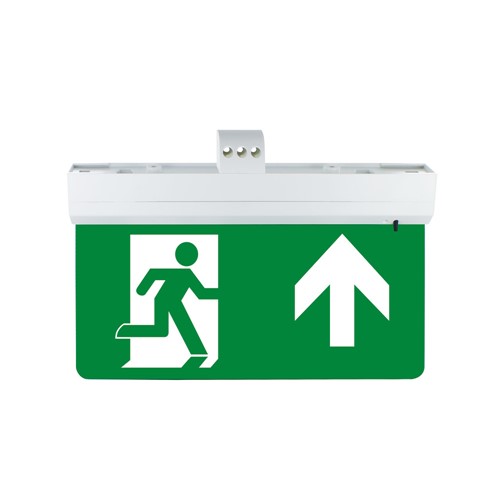

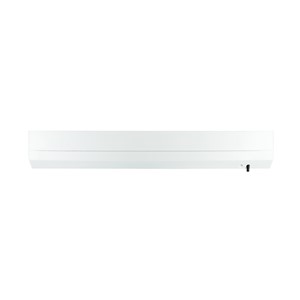

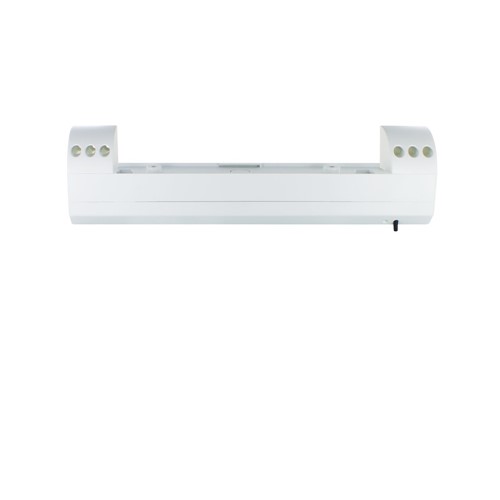

The Integral LED Multi-Fit 26m Emergency Exit Sign brings the efficiency and flexibility of LED to the vital sector of emergency lighting. This self-illuminating exit sign can be clearly seen in emergency situations from a 26m viewing distance with an option for maintained or non-maintained operation.

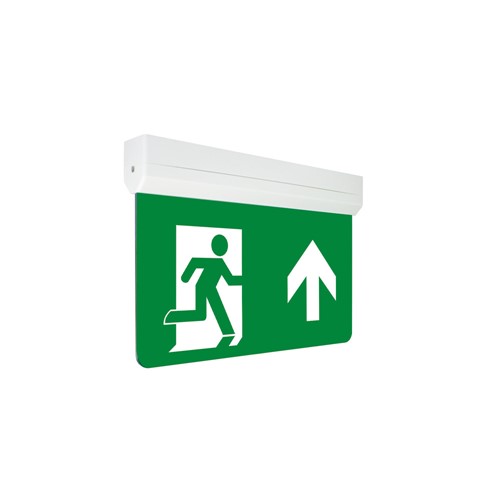

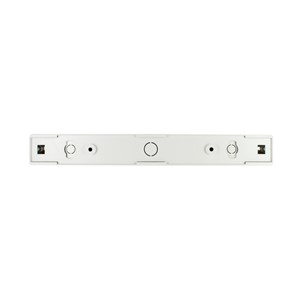

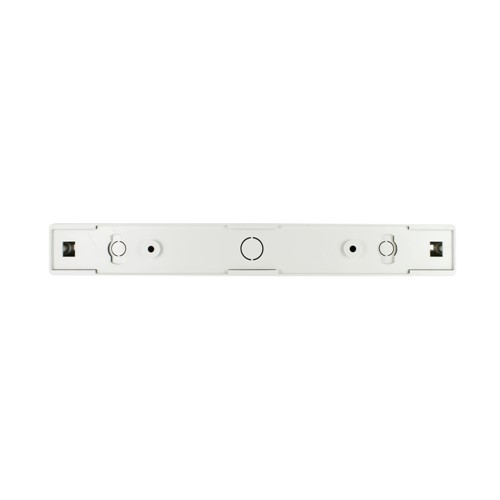

Choose an installation method from six mounting options including: wall mounted (single bracket), wall mounted (double bracket), perpendicular mounted and ceiling mounted. Recessed mounted and suspended installation accessories are available separately.

Note: Up, Right and Left signage blades sold separately. Please see Related Products below.

Product Feature 1:
Maintained or Non-Maintained Configurable
Product Feature 2:
Multuple Fitting Option
Product Feature 3:
Signage Blades Available Seperatly
Availability:
0

Call us on 0208 451 8700 to check the next availability

Suggested products

Quick Order Code 697259
Barcode 5055788236719
Category Emergency
Range Name Multi-Fit
Product Type Exit Signs
Product Body Finish Matt white
Market Segment Commercial indoor
Warranty (Years) 3
Emergency Option Integrated
Emergency Category Exit Signs
Product Length (mm) 265
Product Depth (mm) 33
Product Width (mm) 45
Product Weight (g) 135
Material Polycarbonate
Bulb or Luminaire Shape Rectangle
Luminaire Fixing Wall Mounted, Perpendicular Mounted, Ceiling Mounted, Wall Mounted
Placement / Application Indoor, Emergency Lighting
Energy Efficiency Label (Image) ILEMES030_EU_label
Luminous Flux in Lumens (lm) 60
Correlated Colour Temperature (CCT) (K) 6000
Colour Temperature Name Cool Daylight
Colour Rendering Index (CRI) 80
Frequency Range (Hz) 50/60
Instant on (Less than 1 second) Yes
LED Type Surface mounted device (SMD)
Power Consumption (W) 1
Voltage Range (v) 220-240
Dimming Non-Dimmable
Driver Included Yes
Electric Current AC
EN EN-60598
LVD Certified Yes
EN EN-60598
LVD Certified Yes
CE RoHS Yes
EU Luminaire L
Hg 0% (Mercury Free) Yes
Lowest Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 20
Package Weight (g) 135
Package Length (mm) 339
Package Width (mm) 36
Package Depth (mm) 46
