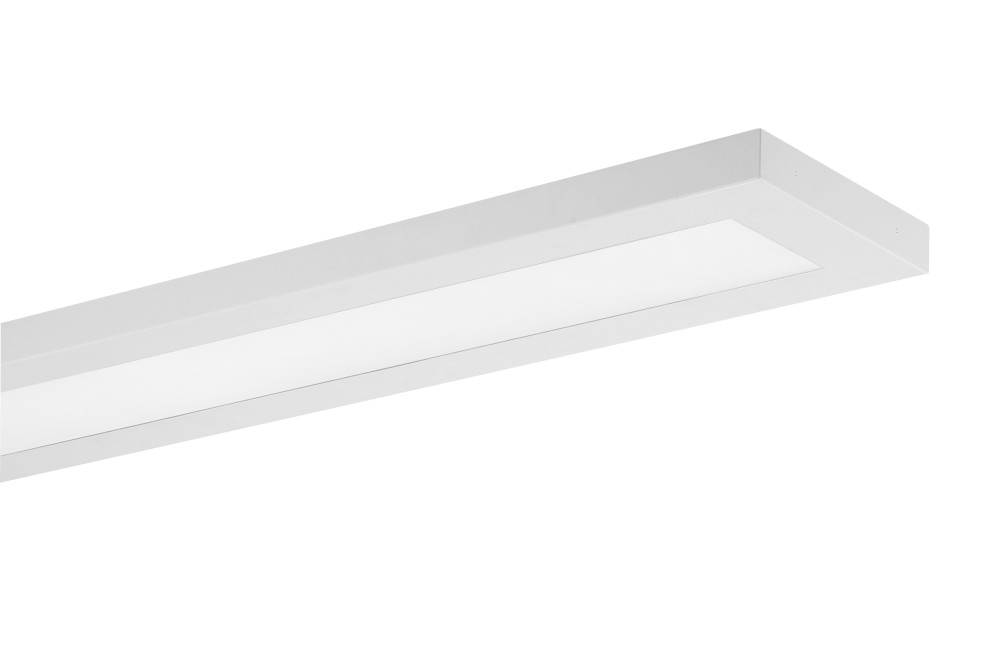

LINEAL SUSPENDED OFFICE DIRECT/INDIRECT 5FT EMERGENCY WATTAGE SWITCHABLE 28W/50W CCT SWITCHABLE 3000K/4000K/5000K 90º 110lm/w NON-DIMM WHITE
Part Number:
ILSOA012
Lineal is a new range of highly efficient luminaires that offer a performance solution for surface and suspended linear fittings. This wide range includes options to deliver the optimal lighting performance, dimming option, emergency function, appearance and colour finish.
The flexibility offered means the Lineal Fittings will meet multiple requirements making it ideal for schools, colleges, hospitals, offices, retail areas and general applications.
With a strong, slimline design, linkable option and installation accessories included (surface, BESA and suspension kits), this is a comprehensive range that can enrich your projects.
- Product Feature 1:
- Power & CCT Switchable
- Product Feature 2:
- 3080-3200lm and 5000-5500lm
- Product Feature 3:
- Up and down light output
- Product Feature 4:
- 110lm/W
- Product Feature 5:
- Integrated Emergency Function
- Product Feature 6:
- 5 Year Warranty
- Product Feature 7:
- UGR<19
- Availability:
-
51
More stock due in on 23/11/2024
Details
| Quick Order Code | 820506 |
|---|---|
| Barcode | 5055788275299 |
| Category | Luminaires |
| Range Name | Lineal |
| Product Type | Battens |
| Product Body Finish | RAL9003 |
| Market Segment | Commercial indoor |
| Finish | White |
| Features | Power & CCT Switchable, Integrated Emergency Function |
| Warranty (Years) | 5 |
Physical Data
| Emergency Option | Integrated |
|---|---|
| Size (in ft) | 5ft |
| Linkable | Yes |
| Product Length (mm) | 1574 |
| Product Depth (mm) | 37 |
| Product Width (mm) | 228 |
| Product Weight (g) | 5700 |
| Optic | Opal diffuser |
| Material | Steel |
| Bulb or Luminaire Shape | Linear |
| Luminaire Fixing | Suspended |
| Mounting Type | Rear Cable & Side conduit Entry |
| Placement / Application | Indoor, General Lighting |
Light Data
| Luminous Flux in Lumens (lm) | 3080-3200lm and 5000-5500lm |
|---|---|
| Luminous efficacy (lm/W) | 110 |
| Correlated Colour Temperature (CCT) (K) | 3000-4000-5000 |
| Colour Temperature | 3000/4000/5000 - Warm White/Cool White/Daylight |
| Colour Temperature Name | CCT Switchable |
| Beam Angle | 90 |
| Colour Rendering Index (CRI) | 80 |
| Frequency Range (Hz) | 50/60 |
| Instant on (Less than 1 second) | Yes |
| LED Type | Surface mounted device (SMD) |
| Lifetime (hours) | 50000 |
| Switching Cycles | 30000 |
| Unified Glare Rating (UGR) | < 19 |
Electrical Data
| Power Consumption (W) | 38/50 |
|---|---|
| Power Factor | 0.9 |
| Amperage (mA) | 350 |
| Input Voltage (V) | 220-240 |
| Dimming | Non-Dimmable |
| Driver Included | Yes |
| Electric Current | AC |
| Emergency Lumens (lm) | 200 |
| EN | EN60598 |
| LVD Certified | Yes |
Environmental
| EN | EN60598 |
|---|---|
| LVD Certified | Yes |
| CE RoHS | Yes |
| Hg 0% (Mercury Free) | Yes |
| IP Rating (Ingress Protection) | IP20 |
| Lowest Operating Temperature (°C) | -20 |
| Maximum Operating Temperature (°C) | 45 |
Packaging
| Package Weight (g) | 6100 |
|---|---|
| Package Length (mm) | 1580 |
| Package Width (mm) | 232 |
| Package Depth (mm) | 40 |
Safety Guide
ILSOA012-28W-3000K
